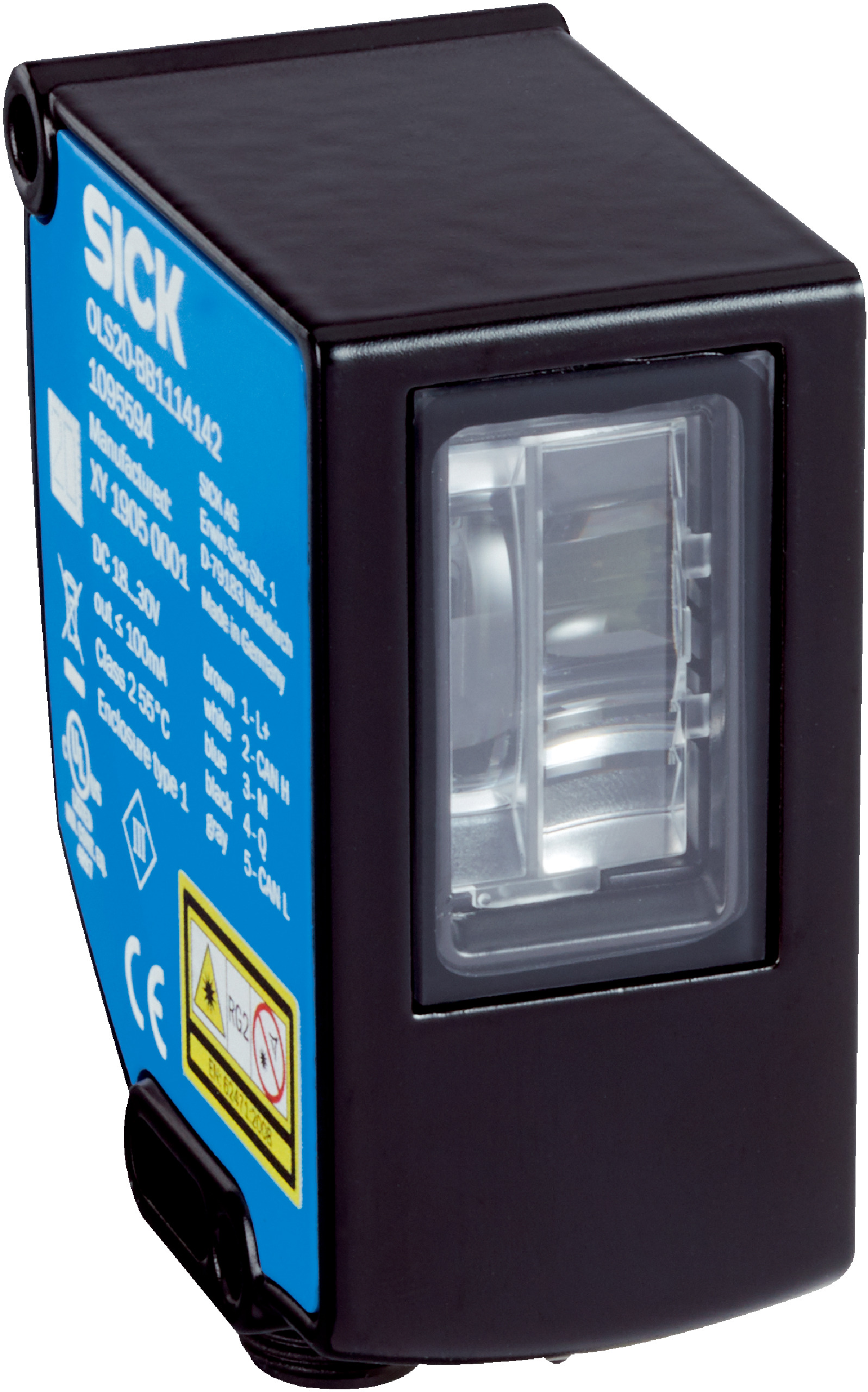

Optical Barcode Sensor | IP67 Enclosure | Blue LED Light Source | Supports IO-Link | by SICK
The Optical Barcode Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a blue LED light source for reliable barcode scanning. With a sensing distance of up to 100 mm and high ambient light immunity, it's perfect for material handling and quality control applications in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 100 mm with ±10 mm tolerance
- Working range: 90 mm to 110 mm
- Light source: Blue LED, 450 nm wavelength
- Light spot size: 180 mm x 9 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: < 3 W
- Switching output: Push-pull PNP/NPN, max 100 mA
- Cycle time: 5 ms
- Process data length: 21 Byte
- Protection class: III
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Ambient light immunity: 50,000 lx
- Shock load: According to IEC 60068
- LED risk group: 2 (IEC 62471)
- Dimensions (H x L x W): 62mm x 52.5mm x 31mm
- Weight: 0.25 kg
Key Features
- Rectangular zinc diecast housing with IP67 enclosure rating
- Sensing distance up to 100 mm with ±10 mm tolerance
- Blue LED light source with 450 nm wavelength
- Supports IO-Link and CANopen communication protocols
- Push-pull PNP/NPN switching output with short-circuit protection
- High ambient light immunity up to 50,000 lx
- Operating temperature range from -10 °C to +55 °C
- LED risk group 2 compliant with IEC 62471
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode scanning
- Material handling and logistics
- Safety and quality control in manufacturing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

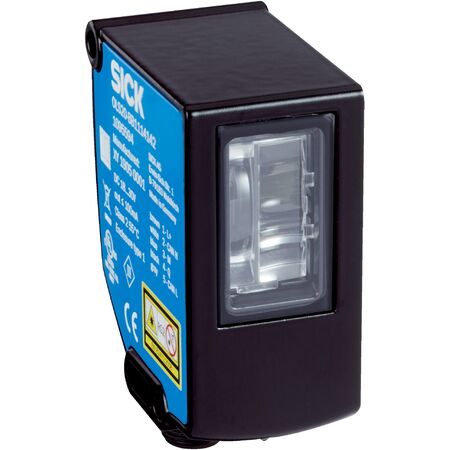

The SICK OLS20-BB1114342 Optical Sensor is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
