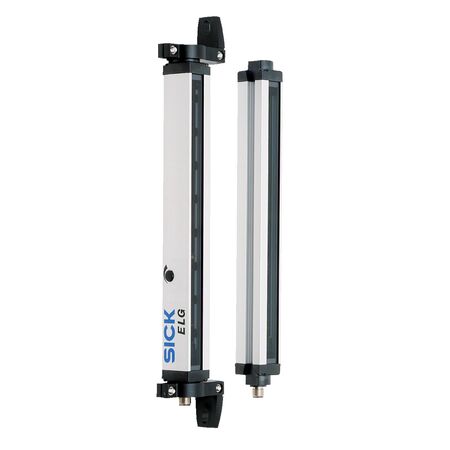

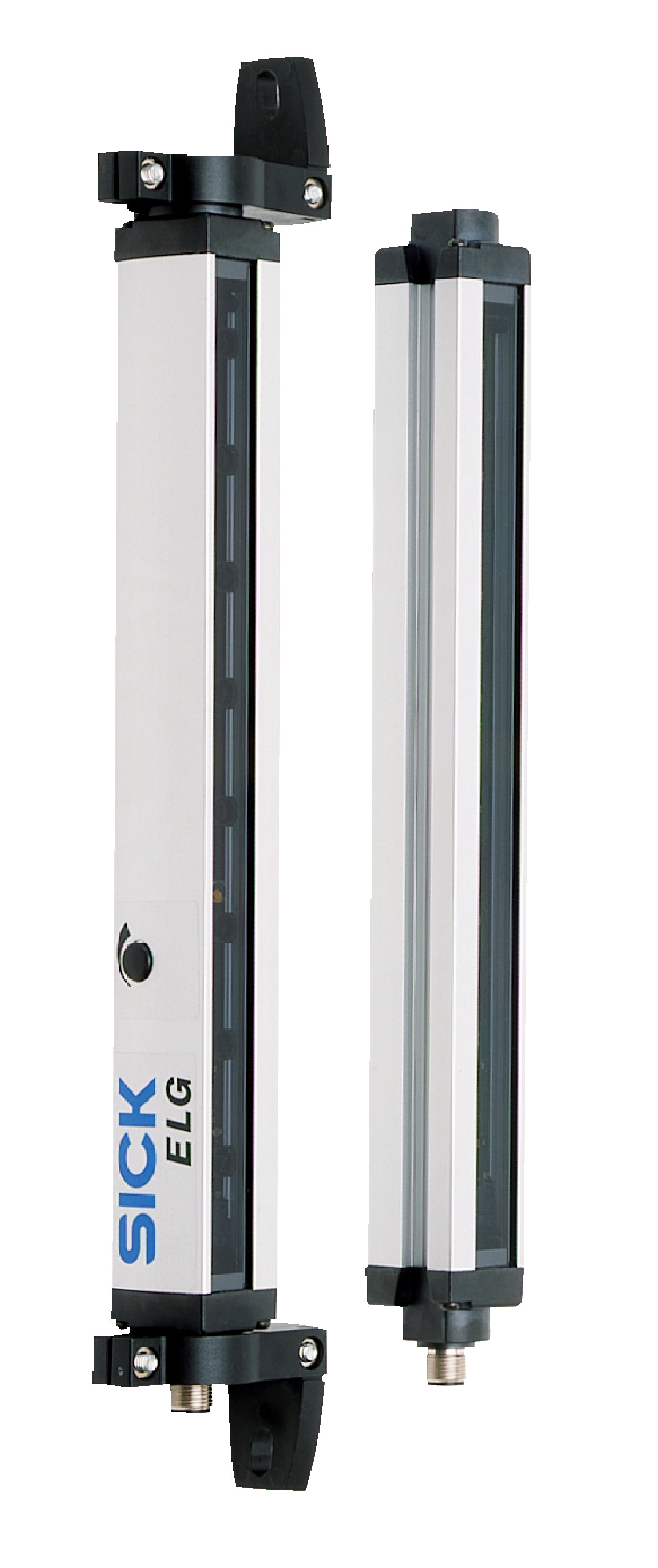

Optical Beam Sensor ELG3-0330P511 | 12 Beams | IP65 Rated | Aluminum Housing | by SICK
The Optical Beam Sensor ELG3-0330P511 features a sender/receiver principle with 12 parallel beams, making it ideal for industrial automation and safety monitoring. With a minimum detectable object size of 35 mm and a detection height of 330 mm, this robust sensor ensures reliable performance in various applications, including material handling and conveyor systems. Its IP65 rating and durable aluminum housing provide excellent protection against environmental factors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Beam Sensor ELG3-0330P511 | 12 Beams | IP65 Rated | Aluminum Housing | by SICK
Brand: SICK
SKU: 1025575
Alternatively Known As: SICK ELG3 0330P511 Optical Beam Sensor, SICK 12-Beam Safety Sensor, SICK ELG3 Series Optical Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 12
- Detection height: 330 mm
- Evaluation beams: Parallel beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen material: PMMA
- Maximum range: 3 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 28 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 406mm x 29mm x 34mm
- Weight: 1.3 kg
Key Features
- Sender/receiver sensor principle with 12 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 330 mm with 30 mm beam separation
- Operating range up to 2 meters with maximum range of 3 meters
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and optical sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and presence monitoring
- Safety and security systems requiring precise beam detection
- Material handling and conveyor systems
- Packaging and manufacturing process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
- Optical synchronization reduces electromagnetic interference
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ELG3-0330P511 Optical Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
