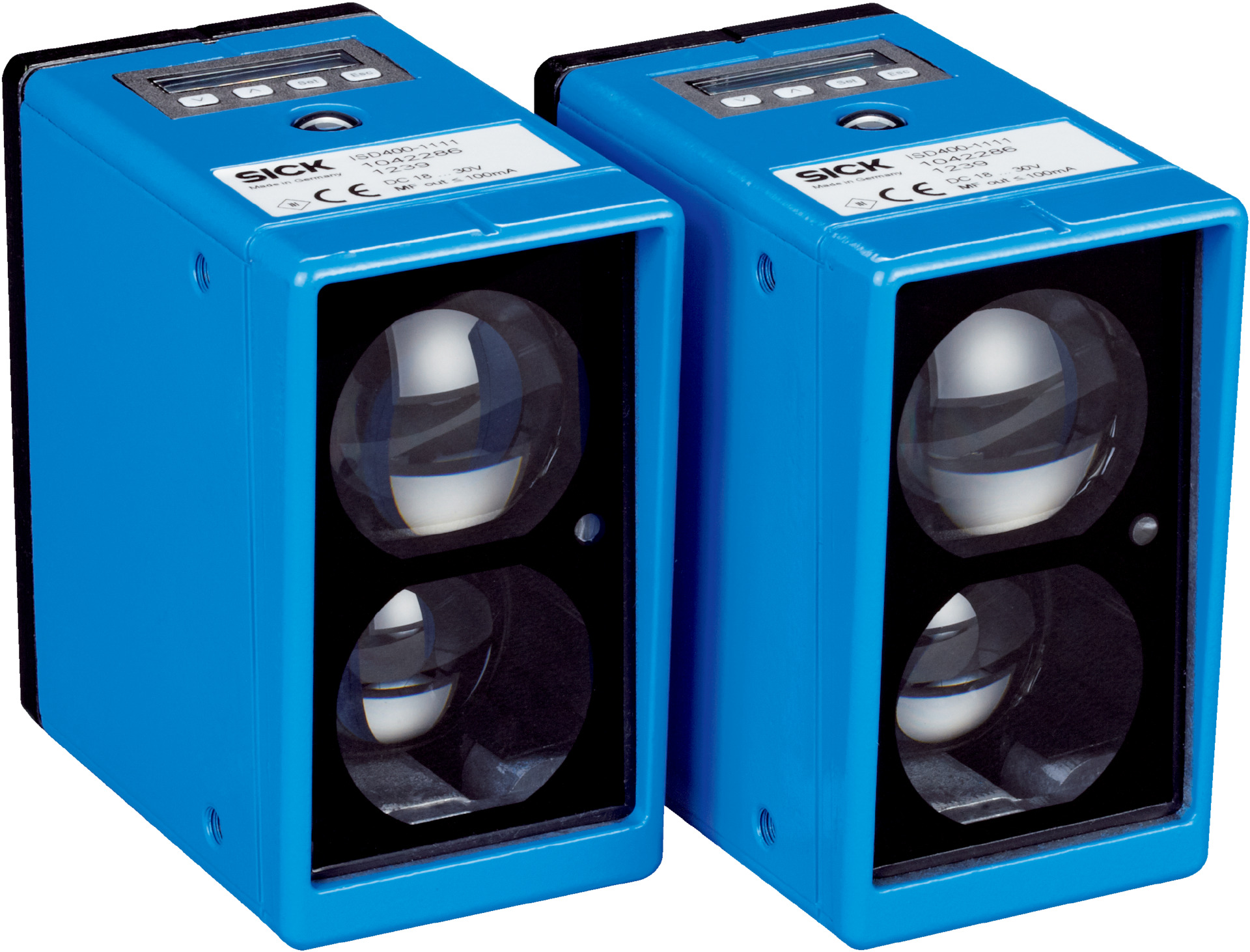

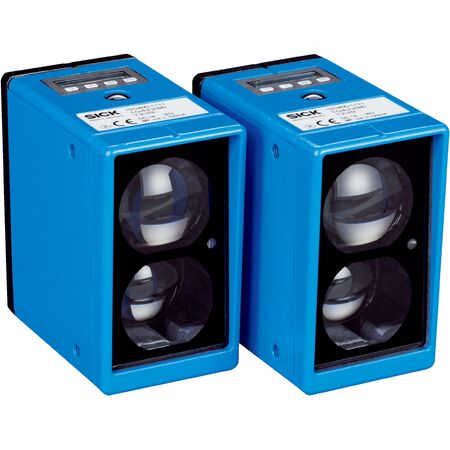

Optical Data Transmission Device ISD400-1121 | IP65 Rated | LED Infrared Light Source | Robust Metal Housing | by SICK
The Optical Data Transmission Device ISD400-1121 is designed for reliable industrial automation communication, featuring an LED infrared light source and a robust metal housing with an IP65 rating. With a transmission range of at least 0.2 meters and an operating temperature from -40 °C to +55 °C, it's perfect for harsh environments. Ideal for factory communication systems, this device ensures efficient data transmission with minimal signal delay.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Data Transmission Device ISD400-1121 | IP65 Rated | LED Infrared Light Source | Robust Metal Housing | by SICK
Brand: SICK
SKU: 1043511
Alternatively Known As: Optical Data Transmitter ISD400, SICK ISD400 Optical Link, Industrial Optical Data Transmission Device
Technical Specifications
- Accessory group: Optical data transmission
- Accessory family: ISD400
- Weight: Approx. 900 g
- Housing material: Metal
- Enclosure rating: IP65
- Ambient operating temperature: –40 °C to +55 °C
- Permissible relative humidity: 90%, Non-condensing
- Power consumption: ≤ 25 W
- Protection class: III
- Transmission range: ≥ 0.2 m
- Light source: LED, infrared (880 nm)
- Typical light spot size at 100 m: 1.75 m
- Heating: Included
- Interface: PROFIBUS DP with 3 Mbit/s data rate
- Digital output: 1 PNP type
- Signal delay: ≤ 1 µs + 2 Tbit
- Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-4
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 0.9 kg
Key Features
- Optical data transmission with LED infrared light source (880 nm)
- Transmission range of at least 0.2 meters
- Robust metal housing with IP65 enclosure rating
- Operating ambient temperature from -40 °C to +55 °C
- Permissible relative humidity up to 90%, non-condensing
- Integrated heating for operation in cold environments
- PROFIBUS DP interface with 3 Mbit/s data transmission rate
- Fast signal delay of ≤ 1 µs plus 2 Tbit
- Digital PNP output for signal transmission
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure mounting for optimal data transmission performance.
Applications
- Industrial automation for data transmission
- Factory communication systems
- Harsh environment data communication requiring IP65 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 25 W reduces energy usage
- Durable metal housing extends product life and reduces waste
- Non-toxic materials compliant with China RoHS standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ISD400-1121 Optical Data Transmission device is available for immediate purchase, ideal for industrial and factory automation communication applications.
