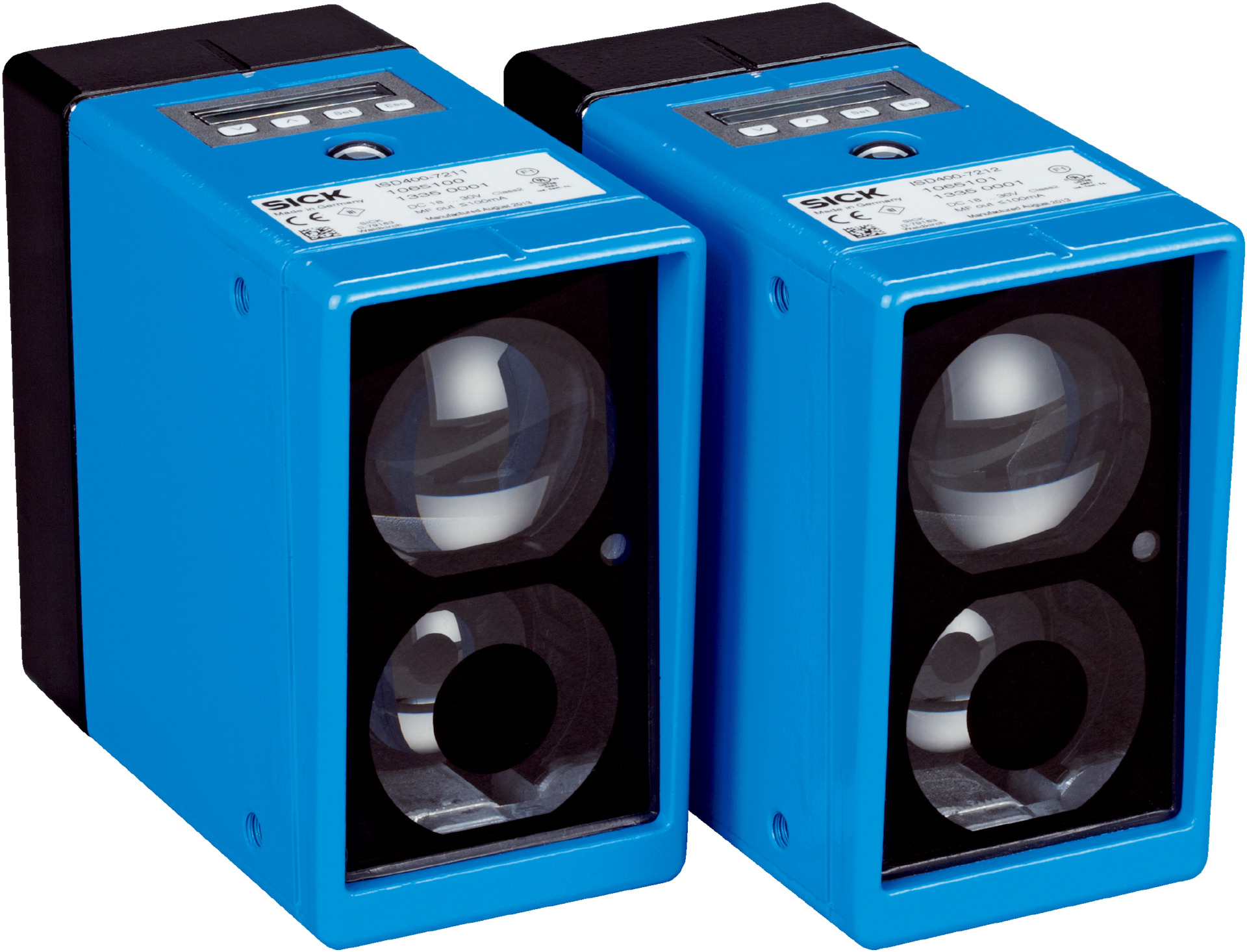

Optical Data Transmission ISD400-7311 | Laser Red Light Source | IP65 Rated | 100 Mbit/s Ethernet | by SICK
Optical data transmission ISD400-7311 is designed for reliable industrial communication, featuring a laser red light source and an impressive transmission range of at least 0.2 meters. With an IP65 rated enclosure, it ensures protection against dust and water, making it ideal for factory automation and control systems in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Optical Data Transmission ISD400-7311 | Laser Red Light Source | IP65 Rated | 100 Mbit/s Ethernet | by SICK
Brand: SICK
SKU: 1071522
Alternatively Known As: Optical Ethernet Transmitter, ISD400 Optical Link, Industrial Optical Data Transmitter
Technical Specifications
- Accessory group: Optical data transmission
- Accessory family: ISD400
- Weight: Approx. 800 g
- Housing material: AlSi12
- Enclosure rating: IP65
- Ambient operating temperature: –20 °C to +55 °C
- Permissible relative humidity: 90 %, Non-condensing
- Power consumption: ≤ 3.6 W
- Frequency: F1
- Protection class: III
- Transmission range: ≥ 0.2 m
- Light source: Laser, red (660 nm)
- Laser class: 1M (IEC 60825-1:2014, EN 60825-1:2014)
- Typical light spot size at 100 m: 1.75 m
- Ethernet data transmission rate: 100 Mbit/s
- Digital output: 1 PNP output active for LOW and HIGH level with warning messages
- Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-4
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 0.8 kg
Key Features
- Optical data transmission with laser red light source (660 nm)
- Transmission range of at least 0.2 meters
- Laser class 1M compliant with IEC 60825-1:2014
- IP65 rated enclosure for dust and water protection
- Supports Ethernet data transmission at 100 Mbit/s
- Digital PNP output with warning messages for operational status
- Ambient operating temperature from -20 °C to +55 °C
- Housing made of durable AlSi12 material
- Electromagnetic compatibility compliant with EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and compliance with safety standards.
Applications
- Industrial data transmission over optical links
- Factory automation and control systems
- Environments requiring robust Ethernet communication
- Use in harsh environments with IP65 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables wireless optical data transmission reducing the need for physical cabling
- IP65 rating ensures long product life reducing waste
- Low power consumption of ≤ 3.6 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK ISD400-7311 Optical Data Transmission device is available for immediate purchase, ideal for industrial and factory automation applications requiring reliable optical Ethernet communication.
