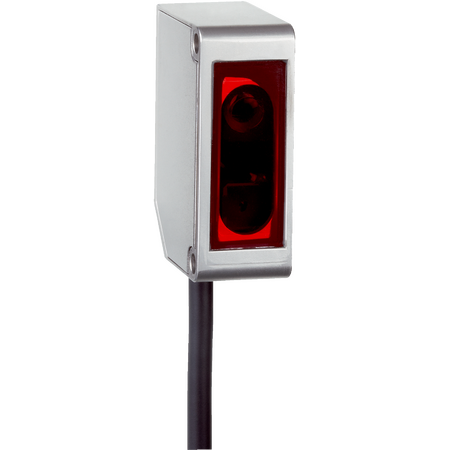

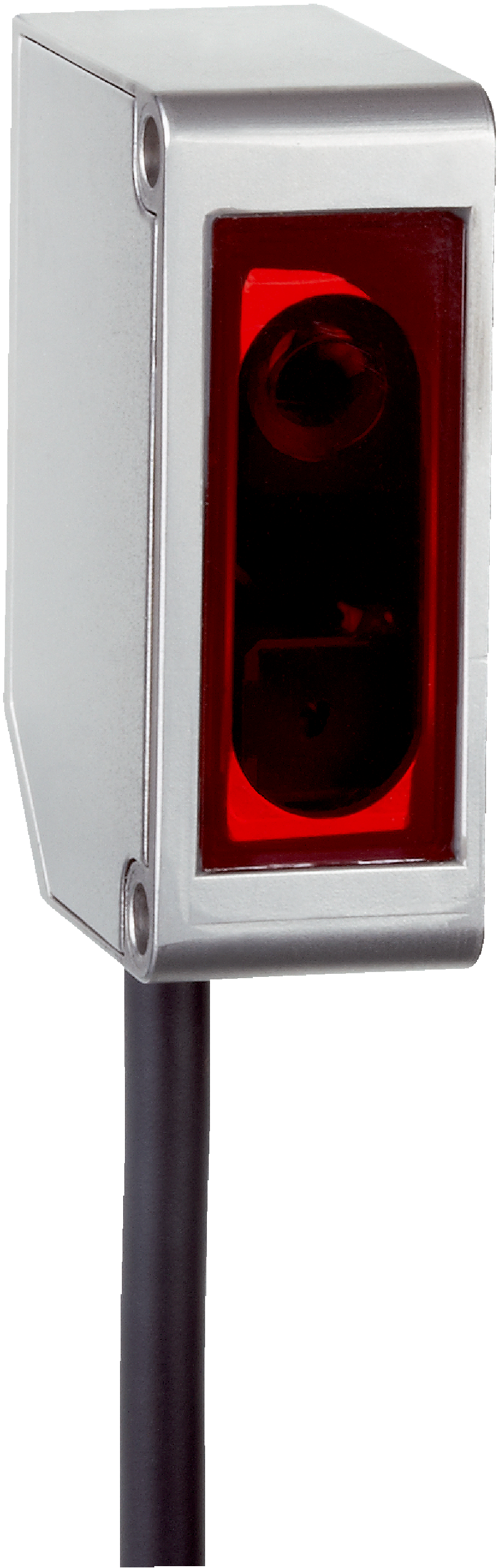

Optical Displacement Sensor OD1-B100H50U25 | 50 mm to 150 mm Range | 20 µm Repeatability | IP67 Rated | by SICK
The Optical Displacement Sensor OD1-B100H50U25 offers a measuring range of 50 mm to 150 mm with high repeatability of 20 µm, making it ideal for industrial automation and precision measurement applications. With a fast response time of ≥ 2 ms and an IP67 rated enclosure, this sensor is built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical displacement sensor, laser displacement sensor, SICK displacement sensor, OD1-B100H50U25 sensor
Technical Specifications
- Measuring range: 50 mm to 150 mm
- Repeatability: 20 µm
- Linearity: ±100 µm
- Response time: ≥ 2 ms
- Measuring frequency: ≤ 2 kHz
- Output time: ≥ 0.5 ms
- Light source: Red laser
- Typical light spot size: 700 µm x 600 µm at 100 mm
- Laser class: 1
- Supply voltage: DC 12 V (–5 %) to DC 24 V (+10 %)
- Power consumption: ≤ 1.92 W
- Display: 4-digit 7-segment with 4 LEDs
- Enclosure rating: IP67
- Protection class: III
- Connection: Cable with male connector, 30 cm
- Control elements: 4 buttons
- Housing material: Stainless steel
- Window material: Plastic (PPSU)
- Operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1.5 mm
- Shock resistance: 50 G
- Dimensions (H x L x W): 44.4mm x 31mm x 17.8mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 150 mm
- High repeatability of 20 µm
- Linearity accuracy of ±100 µm
- Fast response time of ≥ 2 ms
- Measuring frequency up to 2 kHz
- Laser, red light source with a typical spot size of 700 µm x 600 µm at 100 mm
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic or manual sensitivity adjustment
- IP67 rated enclosure for robust protection
- 4-digit 7-segment display with 4 LEDs for status indication
- Stainless steel housing with plastic (PPSU) window
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise displacement measurement
- Quality control and inspection systems
- Robotics and manufacturing process monitoring
- Material testing and research laboratories
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
