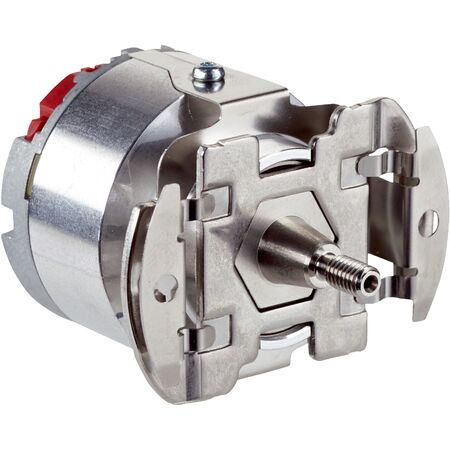

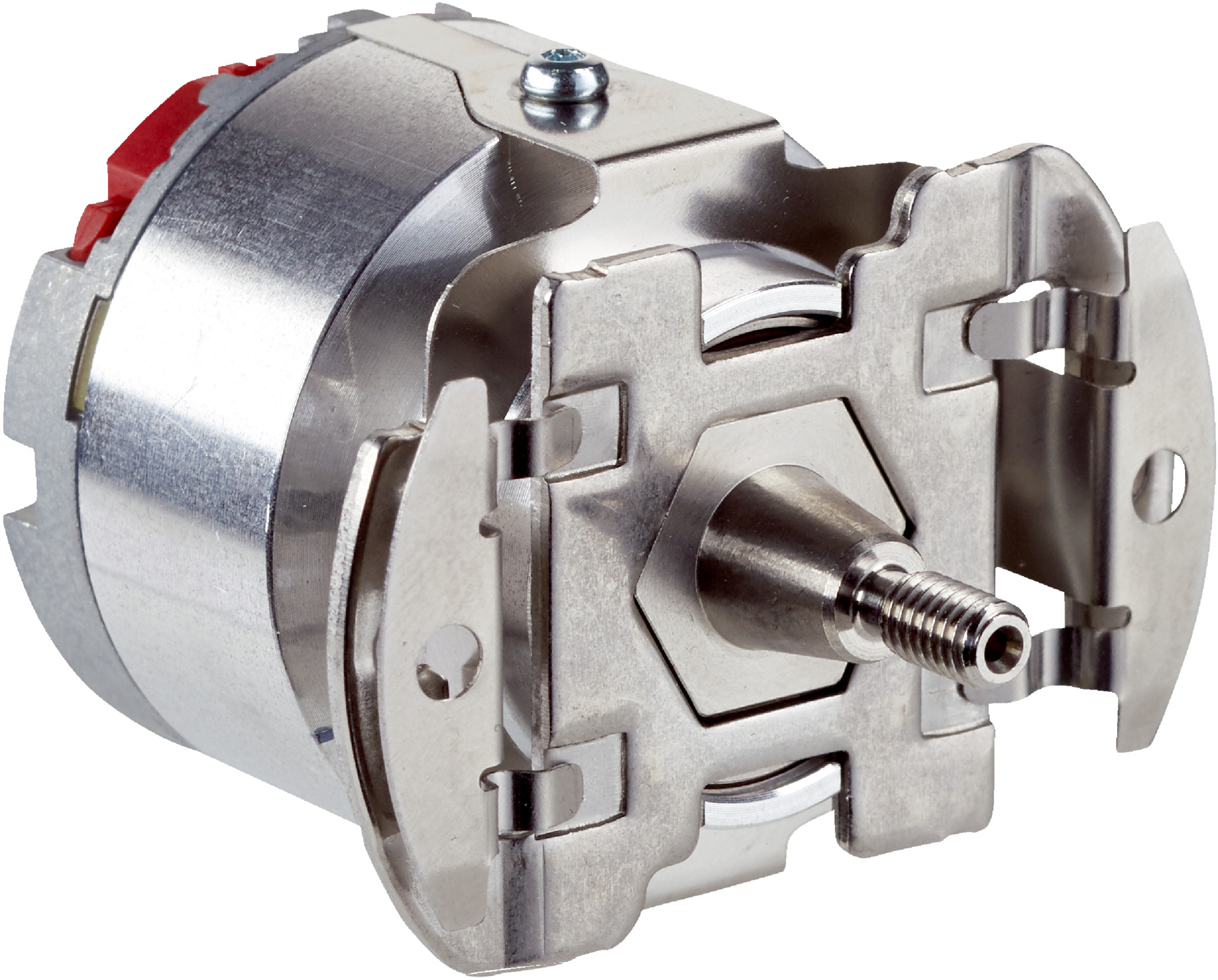

Optical Encoder EKM36 | 18 Bit Resolution | SIL 2 Safety Compliant | IP40 Enclosure | by SICK
The Optical Encoder EKM36 is designed for high-precision applications, featuring an 18-bit resolution and SIL 2 safety compliance. Ideal for industrial automation and robotics, it operates in temperatures from -20 °C to +115 °C and supports high speeds up to 9,000 min⁻¹. With a robust IP40 enclosure, this encoder ensures reliable performance in safety-critical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Position resolution: 18 bit per revolution
- System accuracy: ±120 arcseconds
- Signal noise: ±5 arcseconds
- Number of absolute revolutions: 4,096
- Memory area: 8,192 Byte
- Measurement step per revolution: 262,144
- Communication interface: HIPERFACE DSL
- Supply voltage: 7 V to 12 V, recommended 8 V
- Current consumption: ≤150 mA
- Output frequency: 0 kHz to 75 kHz
- Shaft version: Tapered shaft
- Operating speed: up to 9,000 min⁻¹
- Operating temperature: -20 °C to +115 °C
- Enclosure rating: IP40
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Optical measurement principle with 18 bit resolution per revolution
- Safety integrity level SIL 2 and Performance Level PL d compliant
- Binary code output with HIPERFACE DSL communication interface
- Operating temperature range from -20 °C to +115 °C
- Tapered shaft with stator coupling
- High operating speed up to 9,000 min⁻¹
- Low operating torque of 0.2 Ncm
- IP40 enclosure rating with mating plugs inserted
- Includes two M3 mounting screws
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with SIL 2 standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Safety-related position monitoring
- High-precision optical measurement applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability and long service life reduce waste and replacement frequency
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK EKM36-2KF0B0S23 optical encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
