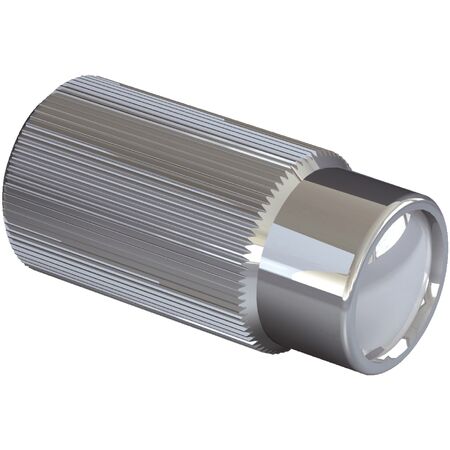

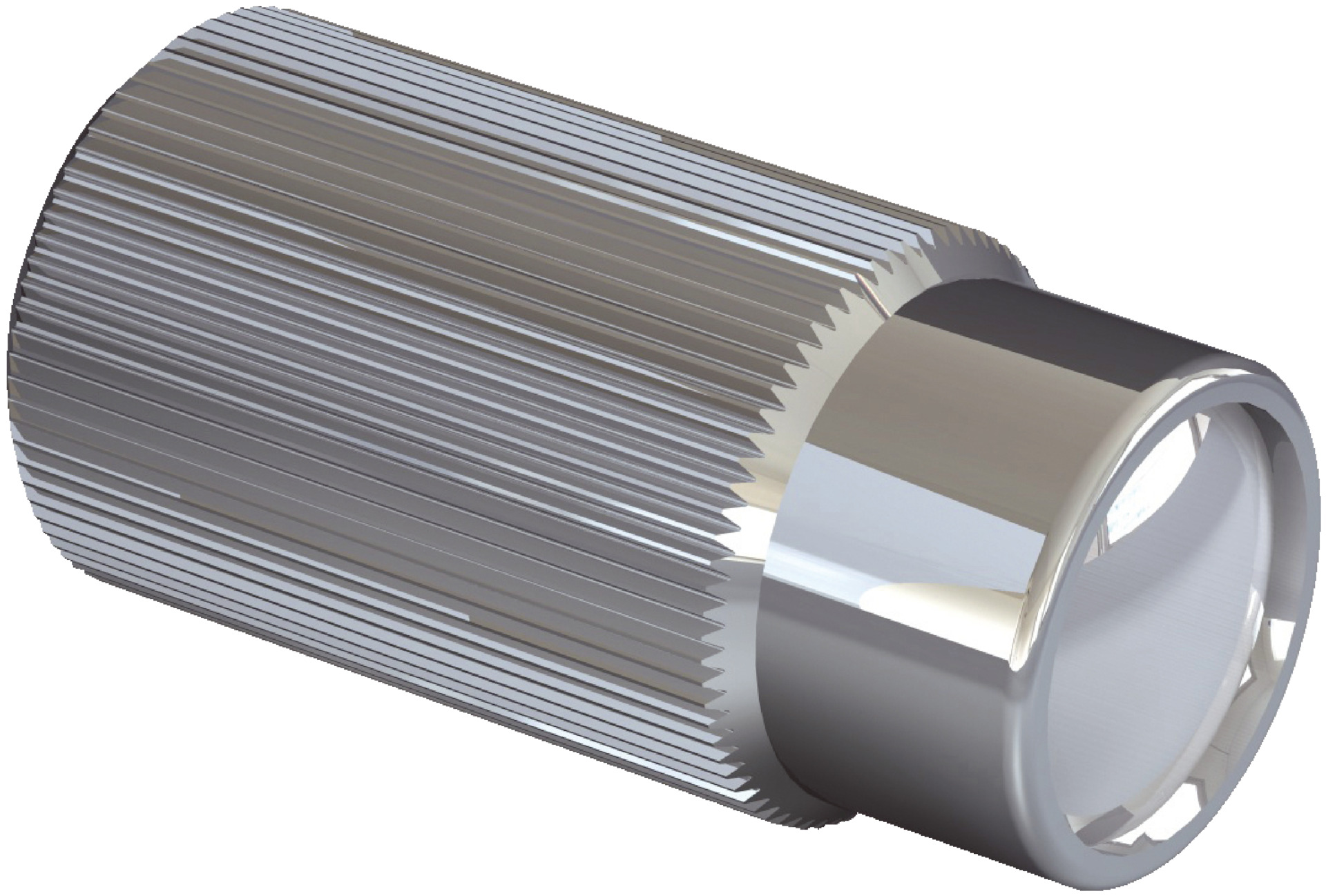

Optical Fiber Attachment Lens LL3-TA01 | Through-Beam System | 11° Dispersion Angle | Brass & Glass Materials | by SICK
The Optical Fiber Attachment Lens LL3-TA01 is designed for high-performance optical fiber sensing in industrial automation. Featuring a robust through-beam system with an 11° angle of dispersion, this lens ensures reliable detection even in contaminated environments. Built with durable brass and glass materials, it offers exceptional longevity and minimal maintenance, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Attachment lens for optical fiber cable
- Functional principle: Through-beam system with sender and receiver
- Angle of dispersion: 11°
- Sleeve material: Brass (Br)
- Lens material: Glass
- Thread diameter (housing): M2.6
- Weight: 3 g
- Ambient operating temperature: –40 °C to +100 °C
- Dimensions (H x L x W): 10mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Attachment lens designed for optical fiber cable
- Through-beam system with sender and receiver
- High sensing range and robustness against contamination
- Angle of dispersion of 11°
- Sleeve made of brass
- Lens made of glass
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical fiber systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation for optical fiber sensing
- High sensing range detection applications
- Environments requiring robust contamination resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- High robustness minimizes maintenance and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-TA01 Attachment Lens for Optical Fiber Cable is available for immediate purchase, ideal for industrial automation and sensing applications.
