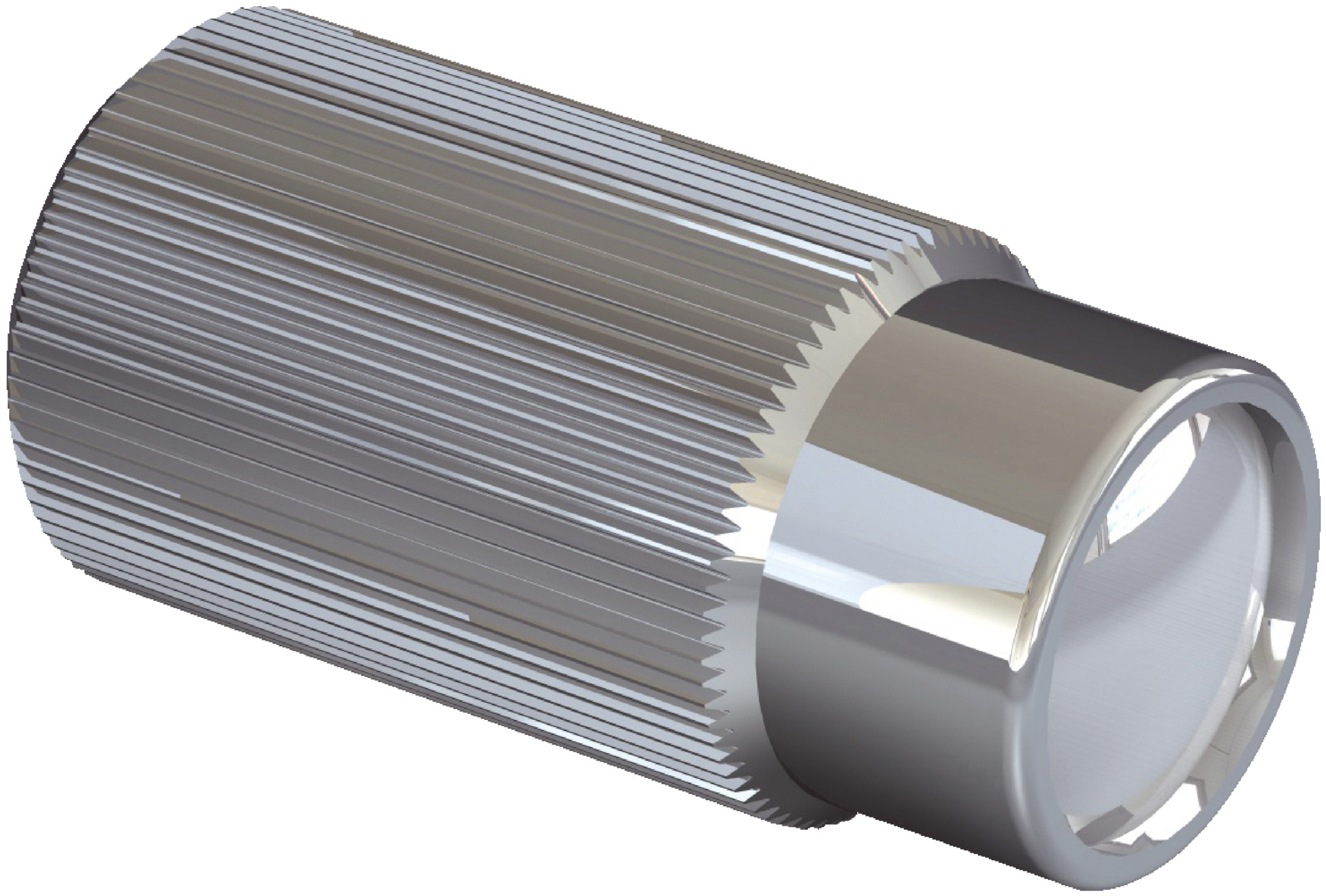

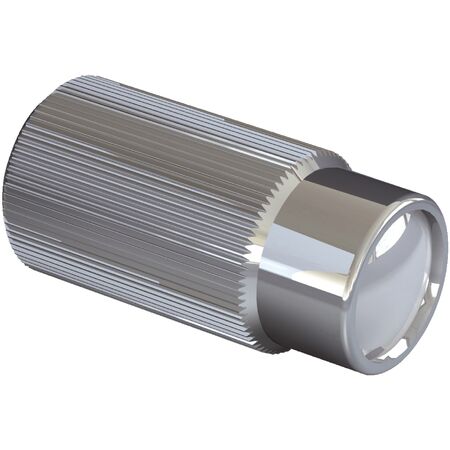

Optical Fiber Attachment Lens LL3-TA01IR | High Sensing Range | NIR Blocking Filter | 18° Angle of Dispersion | by SICK
The Optical Fiber Attachment Lens LL3-TA01IR is designed for high-performance optical fiber sensing in industrial automation. Featuring a through-beam system with sender and receiver, this lens offers a high sensing range and robust contamination resistance. Ideal for environments requiring precise detection, it enhances sensor accuracy while ensuring durability with its brass sleeve and glass lens materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Attachment lens for optical fiber cable
- Functional principle: Through-beam system with sender and receiver
- Special features: High sensing range, contamination robustness, NIR blocking filter
- Optical fiber head angle of dispersion: 18°
- Sleeve material: Brass (Br)
- Lens material: Glass
- Thread diameter (housing): M2.6
- Weight: 3 g
- Ambient operating temperature: –40 °C to +100 °C
- Dimensions (H x L x W): 10mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Attachment lens designed for optical fiber cable
- Through-beam system with sender and receiver
- High sensing range and robustness against contamination
- Near-infrared (NIR) blocking filter
- Optical fiber head with 18° angle of dispersion
- Brass sleeve material and glass lens material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical fiber systems to ensure proper alignment and functionality.
Applications
- Industrial automation for optical fiber sensing
- High sensing range detection systems
- Environments requiring robust contamination resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances sensor accuracy reducing false detections and waste
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TA01IR Attachment Lens is available for immediate purchase, ideal for industrial optical sensing and automation applications.
