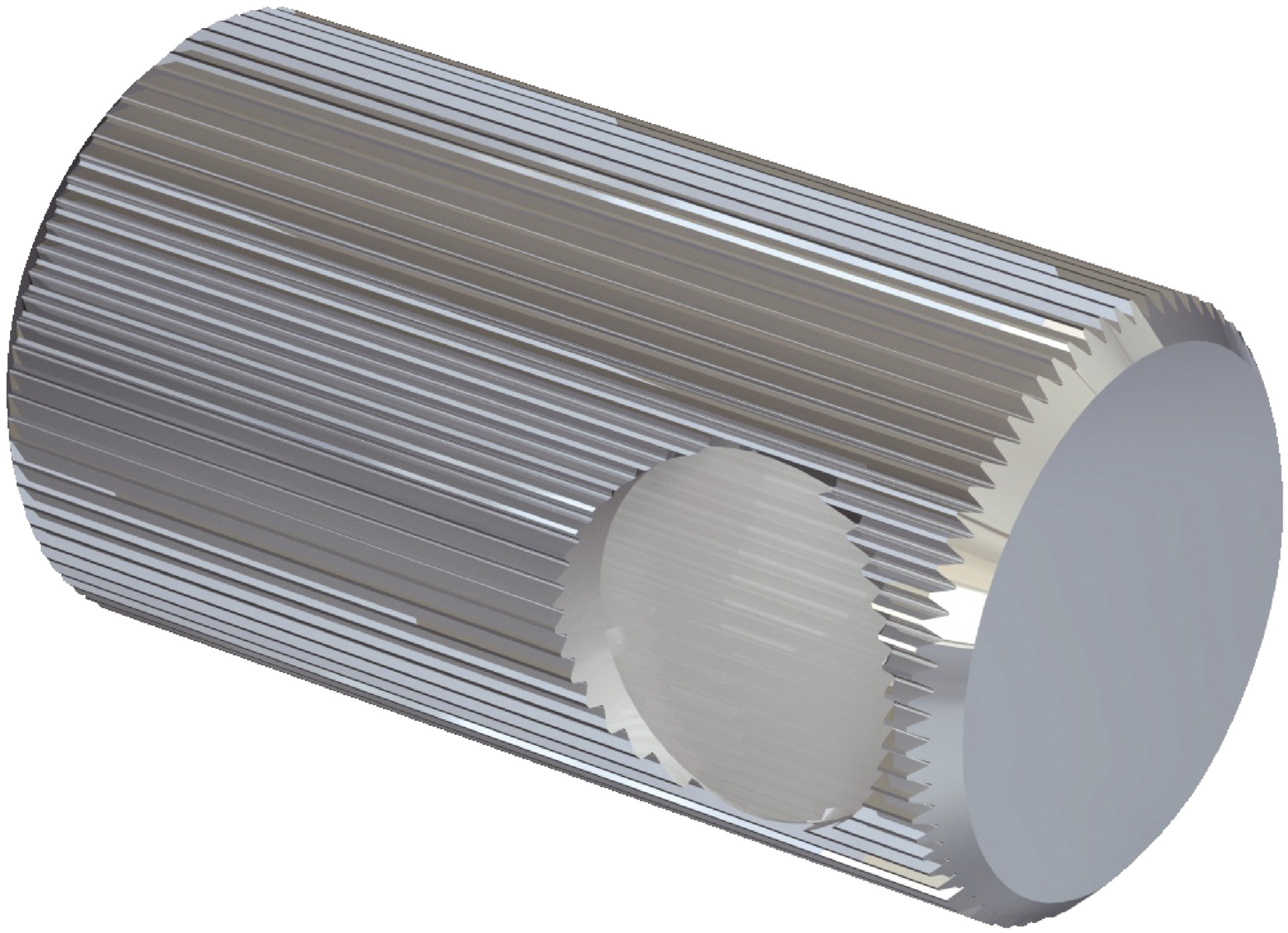

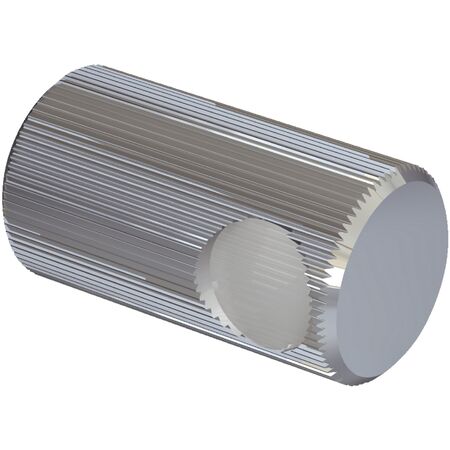

Optical Fiber Cable Lens Attachment LL3-TA02 | High Sensing Range | 90° Offset Design | by SICK
The Optical Fiber Cable Lens Attachment LL3-TA02 is designed for industrial automation, featuring a high sensing range and robust contamination resistance. With a unique 90° offset design and an 18° angle of dispersion, this lens ensures precise detection in challenging environments. Ideal for applications requiring reliable optical fiber sensing, it comes with two pieces for enhanced versatility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Attachment lens for optical fiber cable
- Functional principle: Through-beam system with sender and receiver
- Special features: High sensing range, contamination resistance, 90° offset
- Angle of dispersion: 18°
- Items supplied: 2 pieces
- Sleeve material: Brass (Br)
- Lens material: Glass
- Thread diameter (housing): M2.6
- Weight: 3 g
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- High sensing range and robustness against contamination
- 90° offset design
- Angle of dispersion: 18°
- Includes 2 pieces per supply
- Brass sleeve material and glass lens material
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical fiber systems to ensure proper alignment and functionality.
Applications
- Industrial automation for optical fiber sensing
- High sensing range detection applications
- Environments requiring robust contamination resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- High robustness against contamination minimizes maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TA02 Attachment Lens for Optical Fiber Cable is available now for immediate purchase. Ideal for industrial automation and sensing applications requiring high precision and durability.
