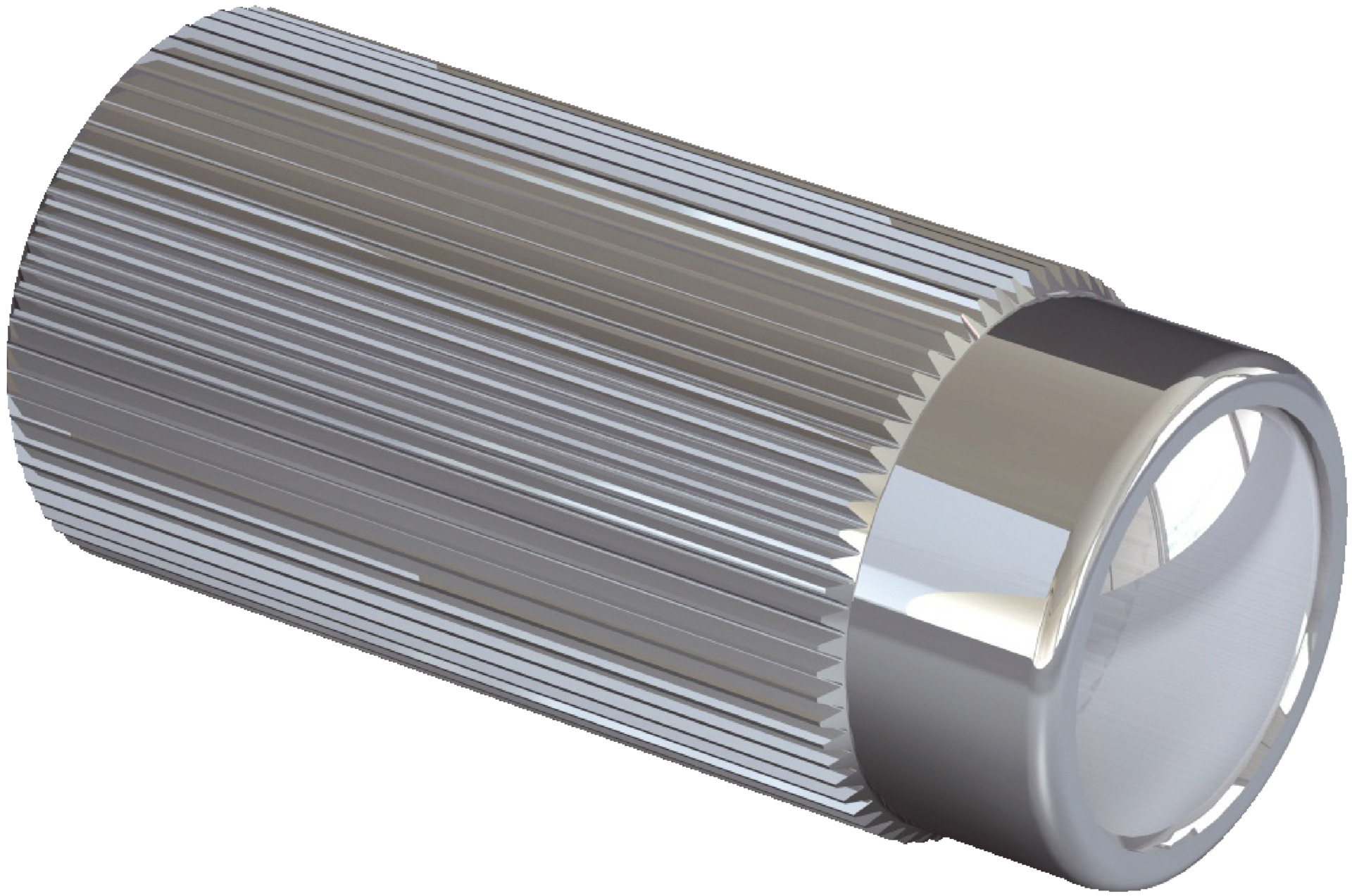

Optical Fiber Cable Lens Attachment | Through-Beam System | 9.5° Dispersion Angle | Nickel-Plated Brass & Glass | by SICK
The Optical Fiber Cable Lens Attachment is designed for high-performance sensing in industrial automation. Featuring a through-beam system with a 9.5° angle of dispersion, this lens ensures robust detection capabilities even in contaminated environments. Built with durable nickel-plated brass and glass materials, it offers exceptional reliability and longevity for optical fiber applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Attachment lens for optical fiber cable
- Functional principle: Through-beam system with sender and receiver
- Angle of dispersion: 9.5°
- Sleeve material: Nickel-plated brass
- Lens material: Glass
- Thread diameter (housing): M2.6
- Weight: 3 g
- Ambient operating temperature: –40 °C to +350 °C
- Dimensions (H x L x W): 10mm x 10mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- High sensing range and robustness against contamination
- Angle of dispersion of 9.5°
- Sleeve made of nickel-plated brass
- Lens made of glass
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical fiber systems to ensure proper alignment and functionality.
Applications
- Industrial automation for optical fiber cable sensing
- High sensing range detection applications
- Environments requiring robust contamination resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- High robustness against contamination minimizes maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

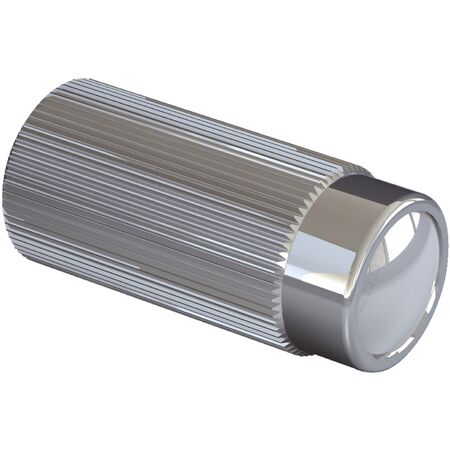

The SICK LL3-TA03 Attachment Lens for Optical Fiber Cable is available now for immediate purchase. Ideal for industrial automation and sensing applications requiring high precision and durability.
