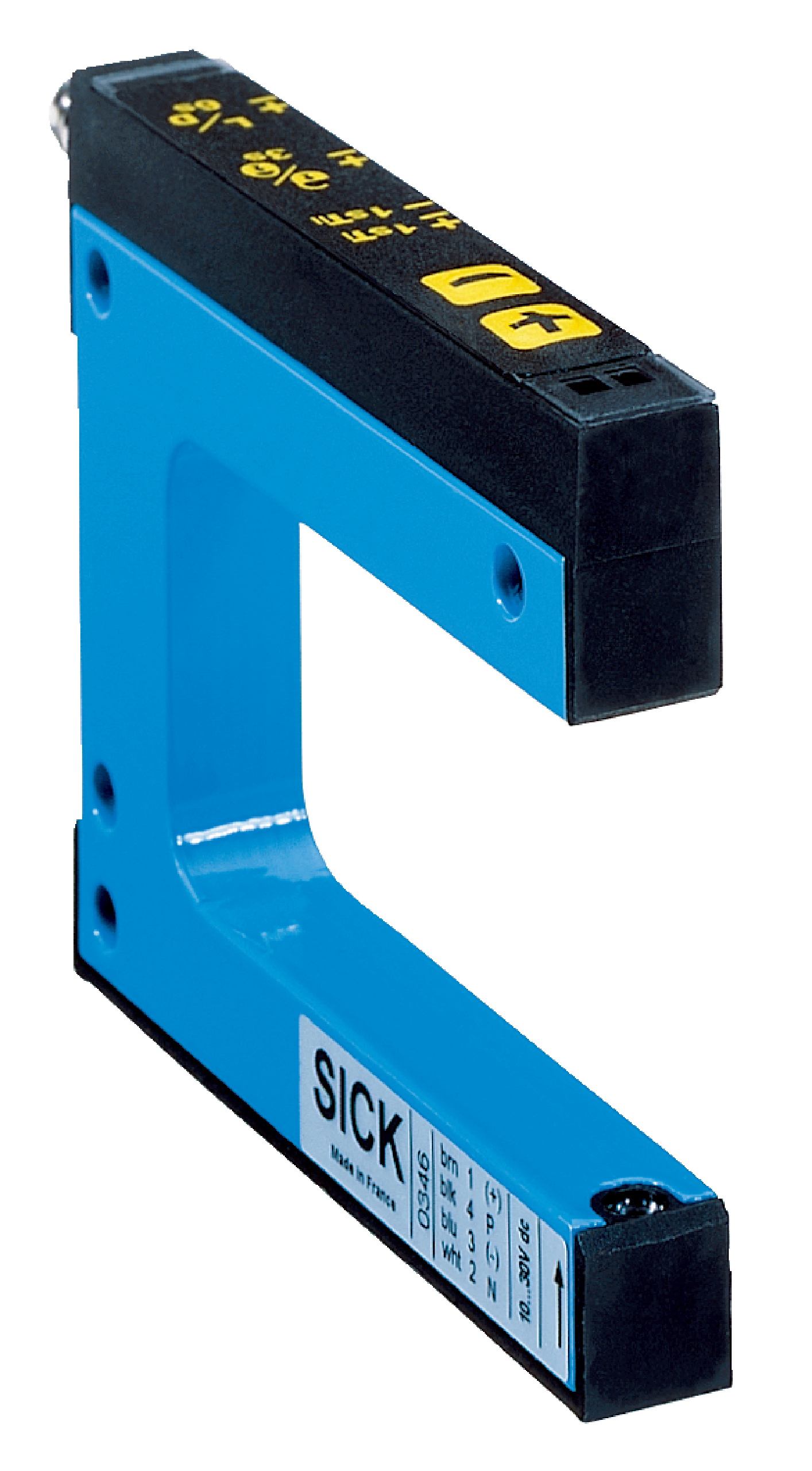

Optical Fork Sensor | Infrared Detection | 0.2 mm Minimum Object Size | IP65 Rated | by SICK
The Optical Fork Sensor is designed for precise object detection in industrial automation, utilizing an infrared LED light source with a minimum detectable object size of just 0.2 mm. With adjustable settings for sensitivity and light/dark switching, this robust sensor features a high switching frequency of 10 kHz and a response time of ≤ 100 µs, making it ideal for packaging, material handling, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, SICK WF80 Sensor, Industrial Object Detector
Technical Specifications
- Functional principle: Optical detection
- Fork width: 80 mm
- Fork depth: 59 mm
- Light source: LED, Infrared light
- Minimum detectable object: 0.2 mm
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching, key lock
- Teach-in mode: 2-point teach-in
- Output function: Light/dark switching selectable via button
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Male connector M8, 4-pin
- Housing material: Aluminum
- Enclosure rating: IP65
- Ambient operating temperature: -20°C to +60°C
- Ambient storage temperature: -30°C to +80°C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Dimensions (H x L x W): 110mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using infrared LED light source
- Minimum detectable object size of 0.2 mm
- Adjustable settings via plus/minus button including sensitivity and light/dark switching
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- PNP/NPN switching output with short-circuit and reverse polarity protection
- Robust aluminum housing with IP65 enclosure rating
- Wide ambient operating temperature range from -20°C to +60°C
- Shock load resistance according to EN 60068-2-27
- Certified with multiple international conformity declarations including cULus and China RoHS
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Packaging and material handling systems
- Quality control and inspection processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable aluminum housing reduces waste through extended product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

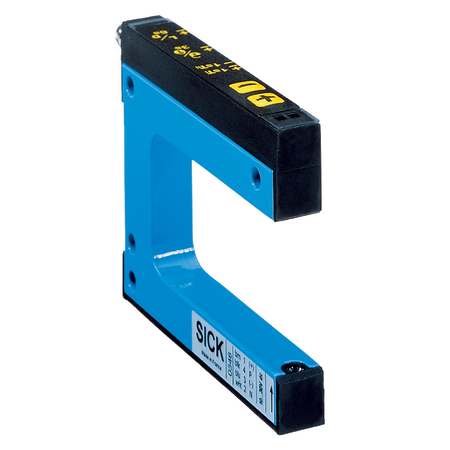

The SICK WF80-60B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
