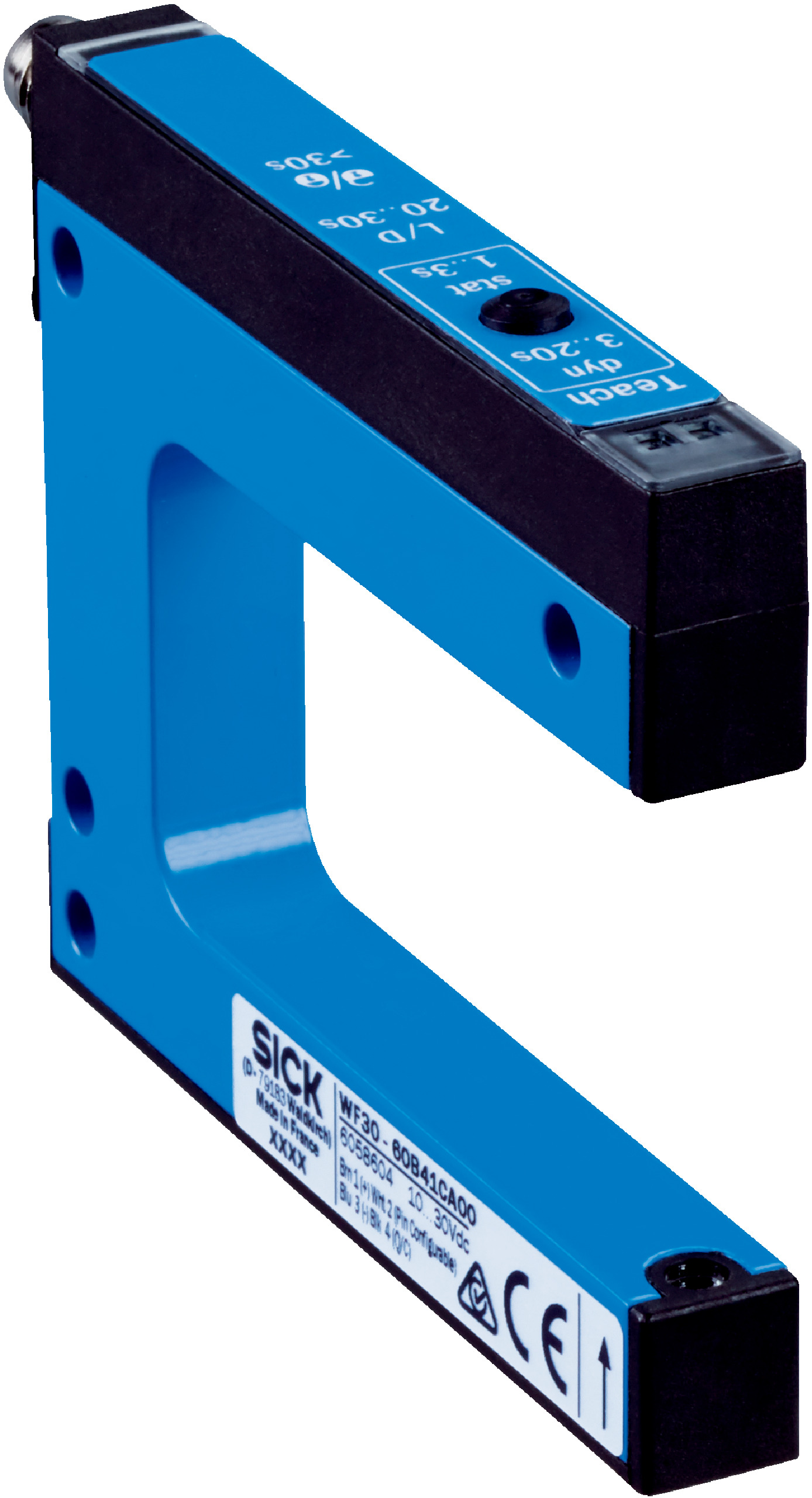

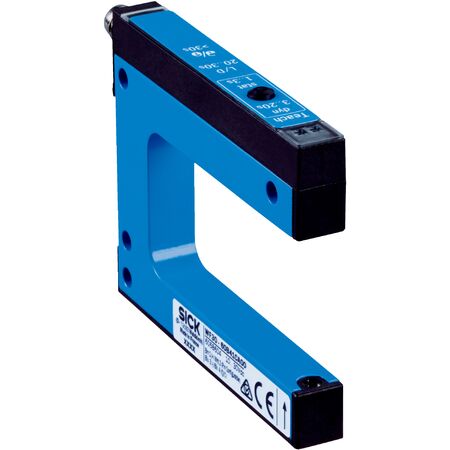

Optical Fork Sensor | Infrared Detection | 50mm Fork Width | IP65 Rated | by SICK
The Optical Fork Sensor WF50-40B41CA00 features an infrared detection principle with a 50mm fork width, making it ideal for precise object detection in industrial automation. With a high switching frequency of 15 kHz and a fast response time of ≤ 46 µs, this sensor is perfect for applications like label detection and quality control. Its robust aluminum housing and IP65 rating ensure durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Stability of response time: ± 20 µs
- Jitter: 17 µs
- Switching output: Push-pull PNP/NPN
- Output voltage levels: High = Uv - < 2 V, Low ≤ 2 V
- Input teach-in voltage: Teach > 5 V, Run < 4 V
- Initialization time: 40 ms
- Adjustable switch-off delay via IO-Link
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Cycle time: 2.3 ms
- Dimensions (H x L x W): 80mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 50 mm and fork depth of 42 mm
- Minimum detectable object size of 0.2 mm
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Selectable light/dark switching output function
- IO-Link V1.1 communication interface for advanced control
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- Push-pull PNP/NPN switching output with 100 mA max output current
- Robust aluminum housing with IP65 enclosure rating
- Wide ambient operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Label detection in manufacturing processes
- Quality control and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable aluminum housing extends product lifespan reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WF50-40B41CA00 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise object detection.
