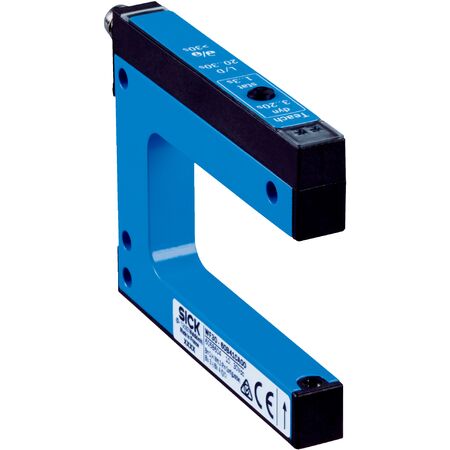

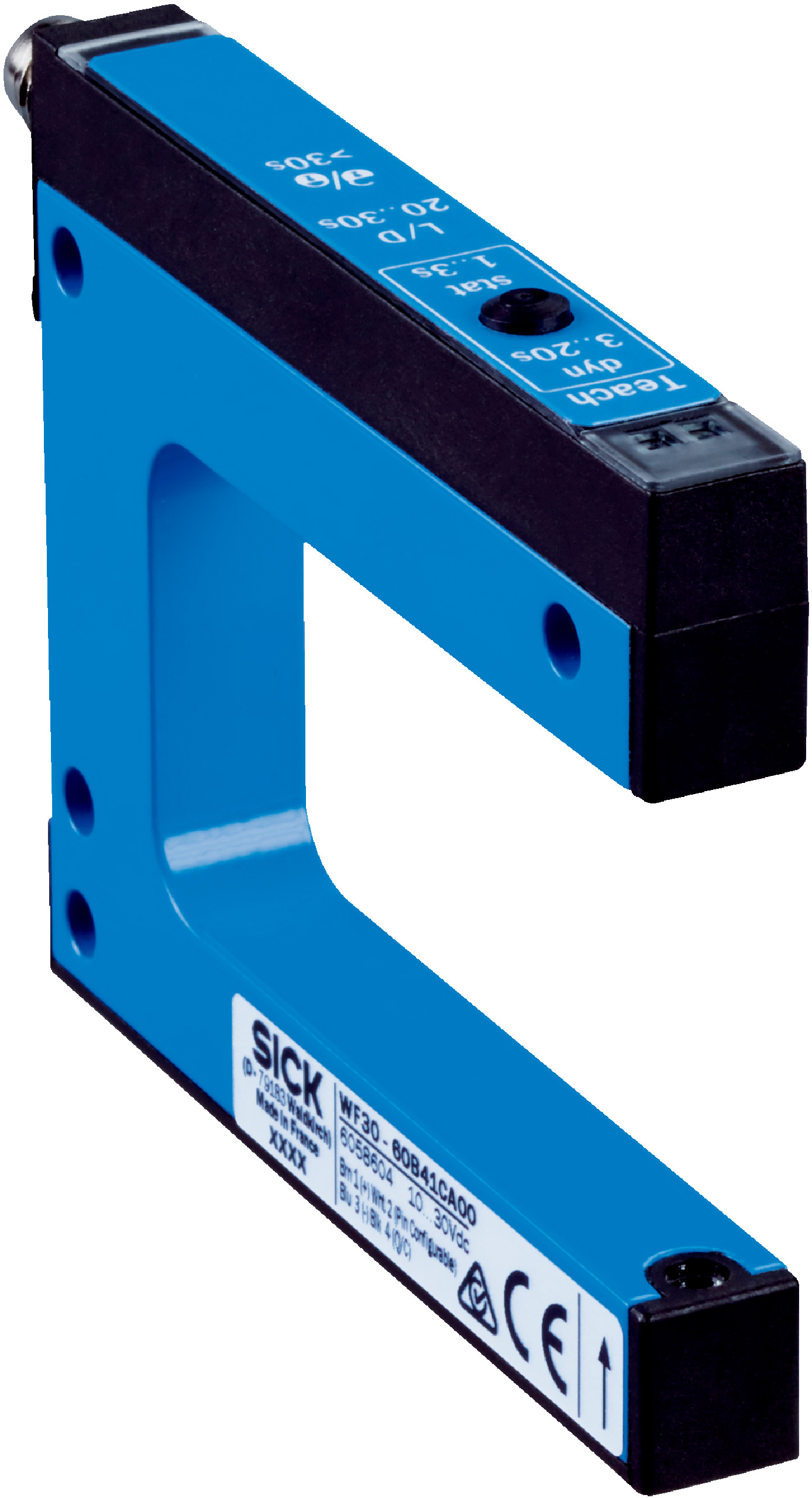

Optical Fork Sensor | Infrared Detection | IP65 Rated | 15 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF80-40B41CA00 features advanced infrared detection with a high switching frequency of 15 kHz, making it ideal for industrial automation and precise object detection. With an IP65 enclosure rating and multiple teach-in modes, this sensor is built for reliability in challenging environments, ensuring optimal performance in label detection and quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Enclosure rating: IP65
- Ambient operating temperature: -20 °C to +60 °C
- Connection type: Male connector M8, 4-pin
- Teach-in modes: 1-point, 2-point, dynamic
- Output function: Light/dark switching selectable via button
- Cycle time: 2.3 ms
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 110mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 80 mm and fork depth of 42 mm
- Minimum detectable object size of 0.2 mm
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Selectable light/dark switching output function
- IO-Link V1.1 communication interface for advanced configuration
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- Push-pull PNP/NPN switching output with max 100 mA output current
- Robust aluminum housing with IP65 enclosure rating
- Wide ambient operating temperature range from -20 °C to +60 °C
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Label detection in packaging lines
- Quality control systems
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WF80-40B41CA00 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
