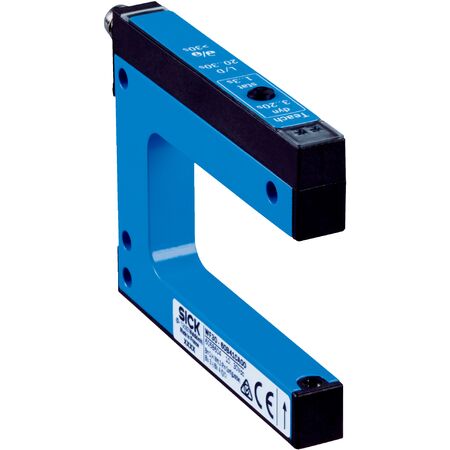

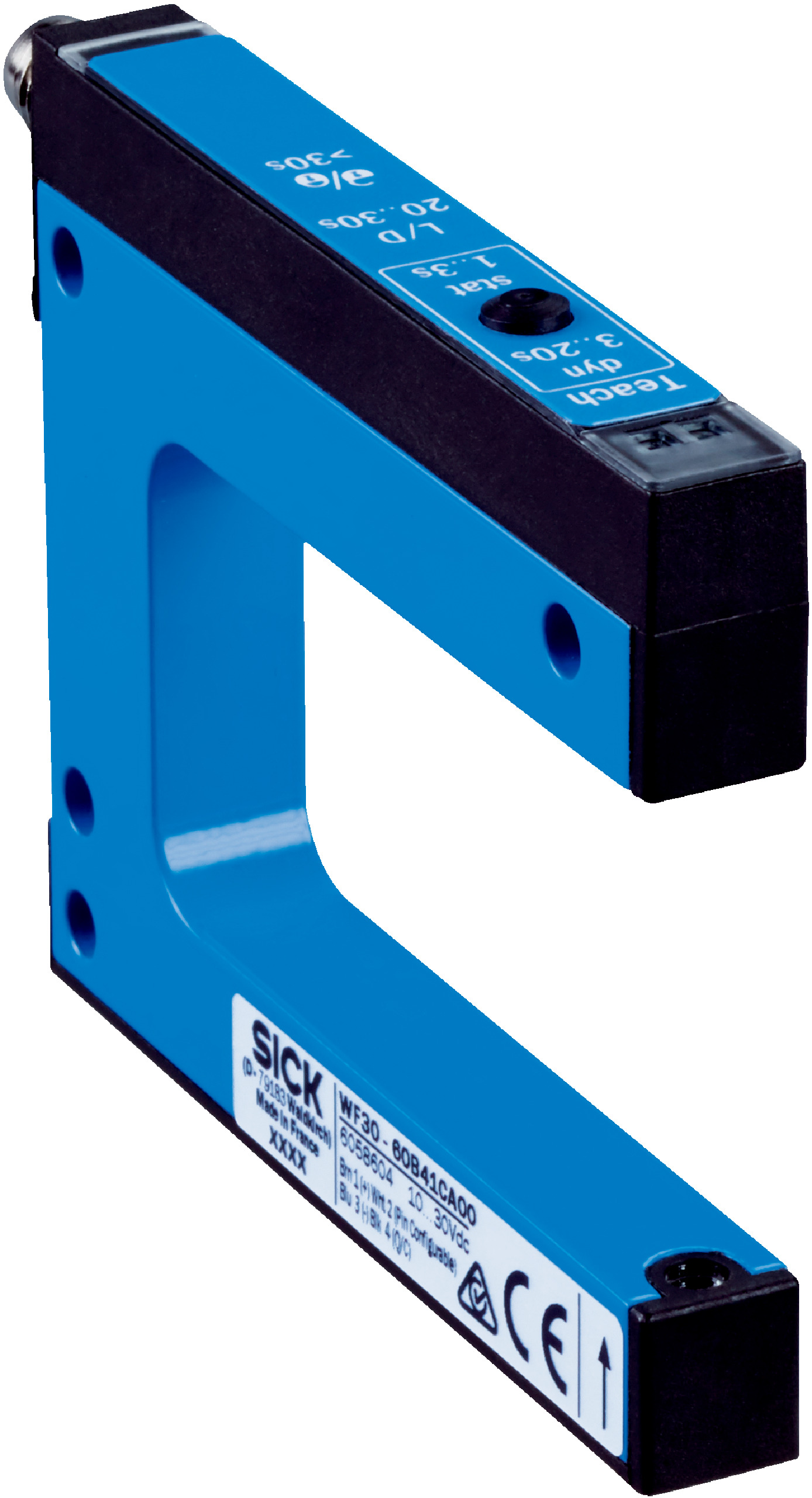

Optical Fork Sensor | Infrared Detection | IP65 Rated | 15 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF5-60B41CA00 features advanced infrared detection with a high switching frequency of 15 kHz, making it ideal for industrial automation and precise object detection. With multiple teach-in modes and an IP65 rated aluminum housing, this sensor ensures reliable performance in demanding environments, perfect for label detection and precision measurement in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Teach-in modes: 1-point, 2-point, dynamic
- Enclosure rating: IP65
- Connection: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Shock load: According to EN 60068-2-27
- Protection class: III
- Cycle time: 2.3 ms
- Output function: Light/dark switching selectable via button
- Dimensions (H x L x W): 35mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 5 mm and fork depth of 59 mm
- Minimum detectable object size of 0.2 mm
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Selectable light/dark switching output function
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- Push-pull PNP/NPN switching output with max 100 mA output current
- IP65 rated aluminum housing for robust industrial use
- Equipped with IO-Link V1.1 for advanced communication and configuration
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Label detection in manufacturing processes
- Precision measurement in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WF5-60B41CA00 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
