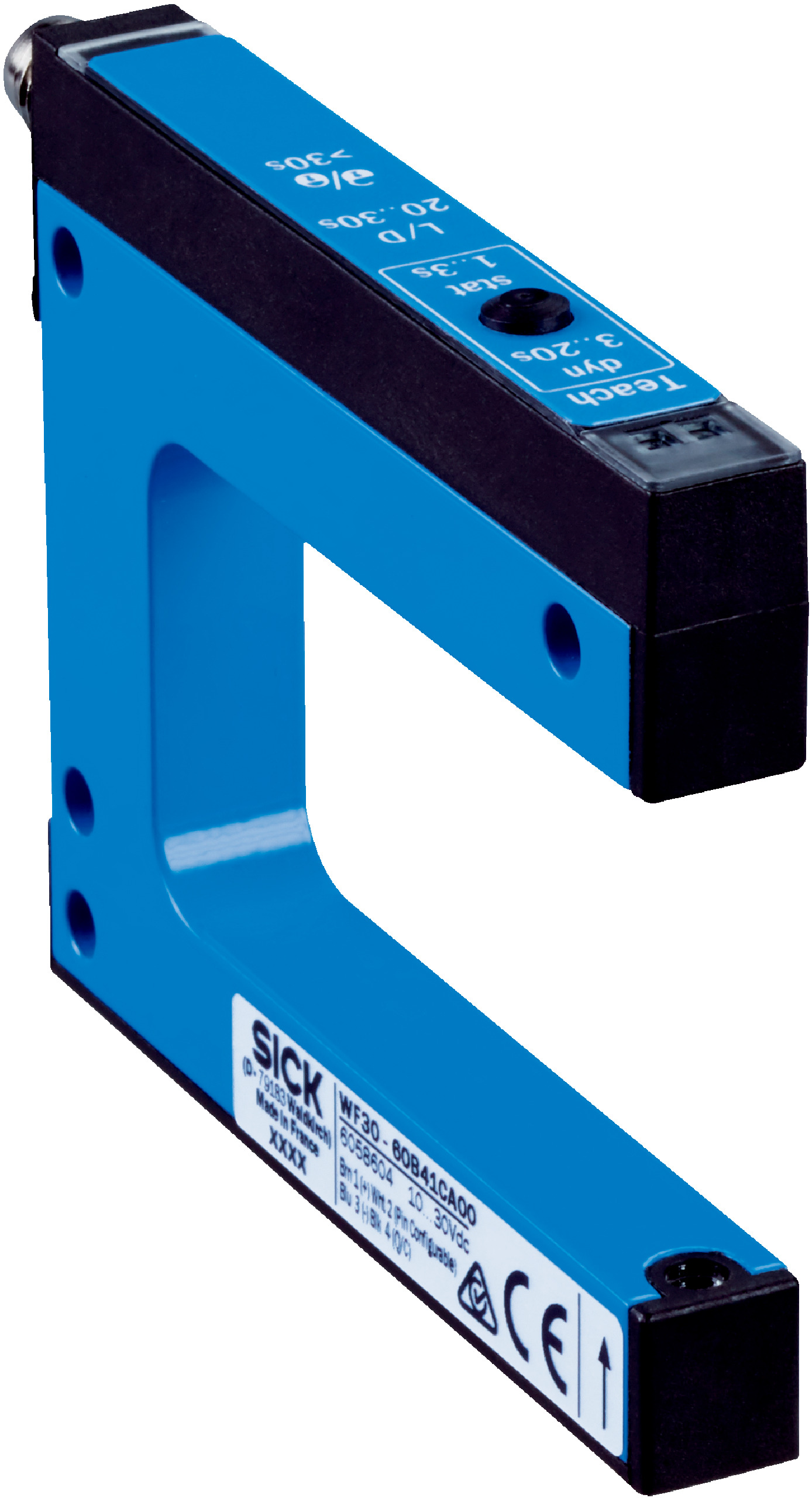

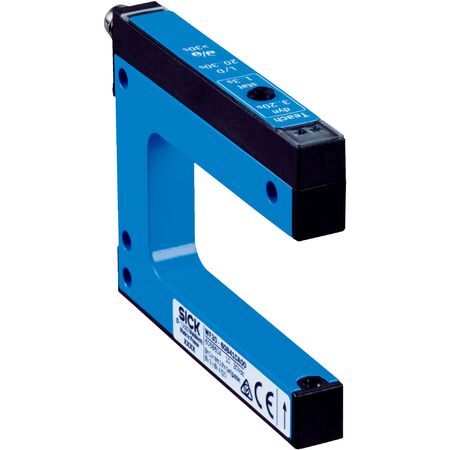

Optical Fork Sensor | Infrared Detection | IP65 Rated | 15 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF5-95B41CA00 features advanced infrared detection with a high switching frequency of 15 kHz, making it ideal for industrial automation and precise object detection. With an IP65 rated aluminum housing, it ensures durability in harsh environments, while multiple teach-in modes provide flexibility for various applications. Perfect for label detection and precision measurement in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Teach-in modes: 1-point, 2-point, dynamic
- Enclosure rating: IP65
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Shock load: According to EN 60068-2-27
- Protection class: III
- Cycle time: 2.3 ms
- Dimensions (H x L x W): 35mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 5 mm and fork depth of 95 mm
- Minimum detectable object size of 0.2 mm
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Selectable light/dark switching output function
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- Push-pull PNP/NPN switching output with max 100 mA output current
- IP65 rated aluminum housing for robust industrial use
- Equipped with IO-Link V1.1 for advanced communication and configuration
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Label detection in manufacturing processes
- Precision measurement in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WF5-95B41CA00 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
