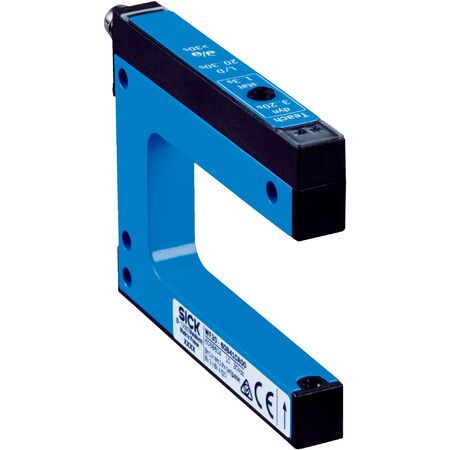

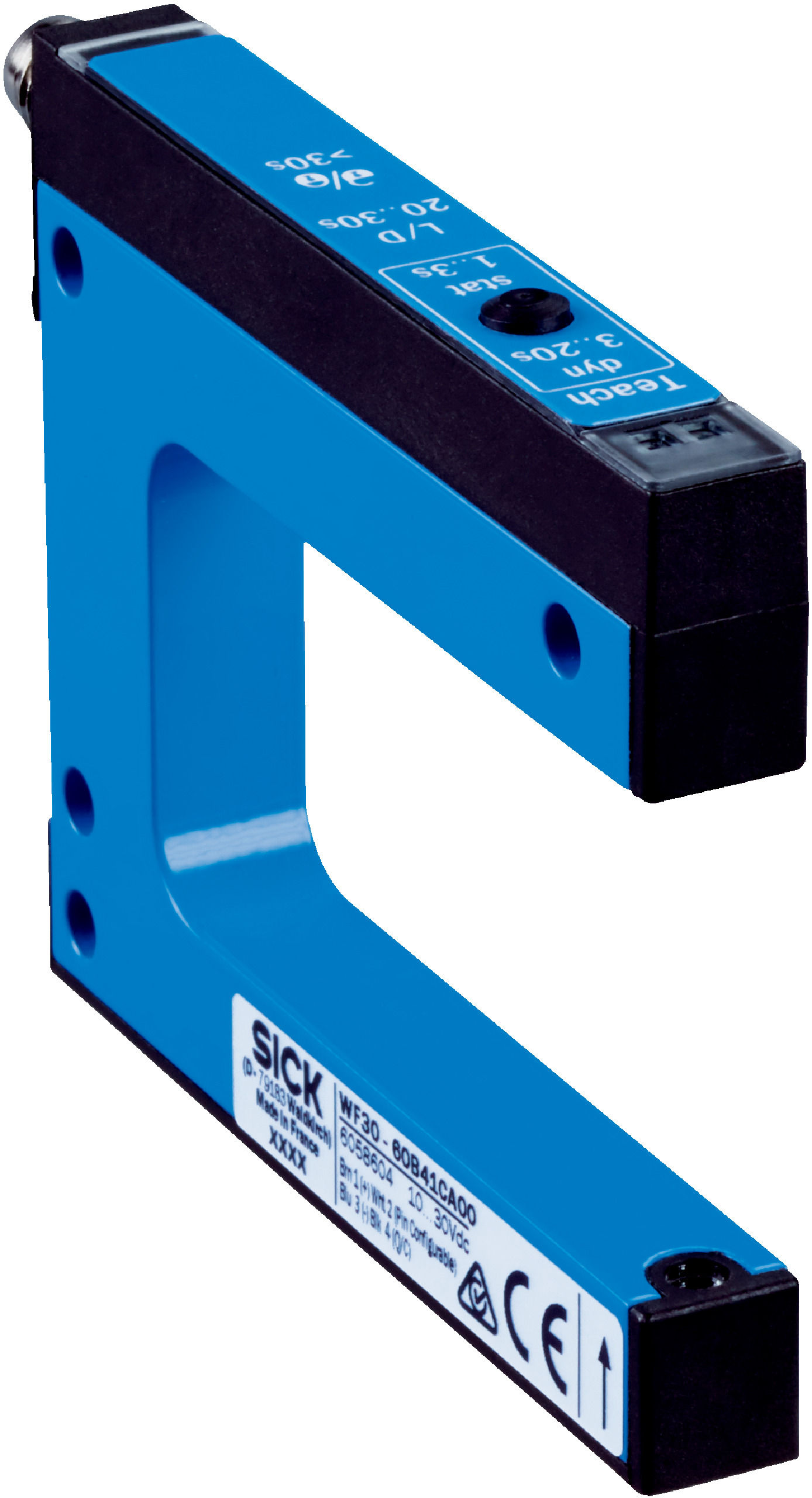

Optical Fork Sensor | Infrared Detection | IP65 Rated | 15 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF30-40B41CA71 features advanced infrared detection with a high switching frequency of 15 kHz, making it ideal for precise object detection in industrial automation. With an IP65 rated aluminum housing, it ensures durability in harsh environments. This sensor supports multiple teach-in modes and offers selectable light/dark switching output, perfect for applications like label detection and counting tasks in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Enclosure rating: IP65
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Safety parameters: MTTFD 97 years, DCavg 0%
- Teach-in modes: 1-point, 2-point, dynamic
- Output function: Light/dark switching selectable via button
- Time delay adjustable via IO-Link from 0 ms to 520 ms
- Dimensions (H x L x W): 60mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 30 mm and fork depth of 42 mm
- Minimum detectable object size of 0.2 mm
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Selectable light/dark switching output function
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- Push-pull PNP/NPN switching output with max 100 mA output current
- IP65 rated aluminum housing for robust industrial use
- Equipped with IO-Link V1.1 for advanced communication and configuration
- Safety parameters include MTTFD of 97 years and DCavg of 0%
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Label detection in manufacturing processes
- Counting and debouncing tasks in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WF30-40B41CA71 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
