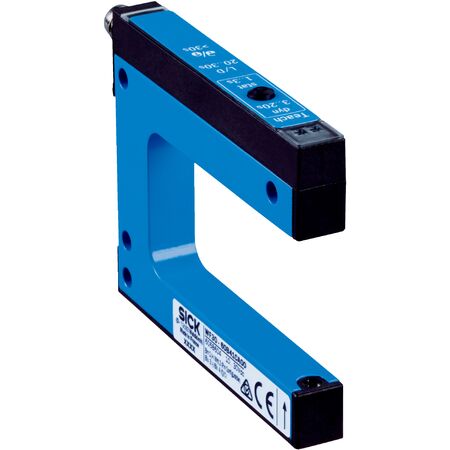

Optical Fork Sensor | Infrared Detection | IP65 Rated Aluminum Housing | by SICK
The Optical Fork Sensor WF50-60B41CA70 features an infrared detection principle, ensuring precise object detection with a minimum detectable size of 0.2 mm. With a high switching frequency of 15 kHz and a fast response time of ≤ 46 µs, it's perfect for industrial automation and label detection in packaging lines. Built with an IP65 rated aluminum housing, this sensor is designed for robust performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Stability of response time: ± 20 µs
- Jitter: 17 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Input teach-in voltage: Teach > 5 V, Run < 4 V
- Initialization time: 40 ms
- Time delay adjustable via IO-Link from 0 ms to 520 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Safety parameters: MTTFD 97 years, DCavg 0%
- Dimensions (H x L x W): 80mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 50 mm and fork depth of 59 mm
- Minimum detectable object size of 0.2 mm
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Selectable light/dark switching output function
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- Push-pull PNP/NPN switching output with max output current of 100 mA
- IP65 rated aluminum housing for robust industrial use
- Equipped with IO-Link V1.1 for advanced communication and configuration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and configuration via IO-Link.
Applications
- Industrial automation for object detection
- Label detection in packaging lines
- Precision measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable aluminum housing reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WF50-60B41CA70 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
