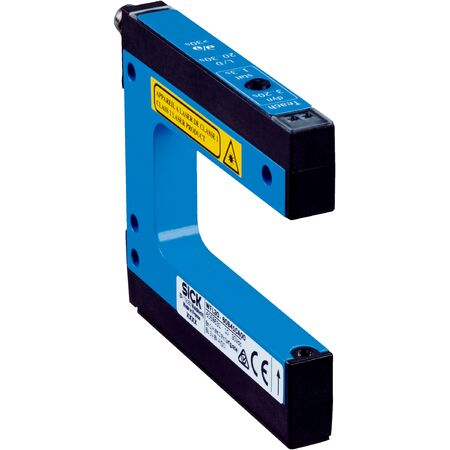

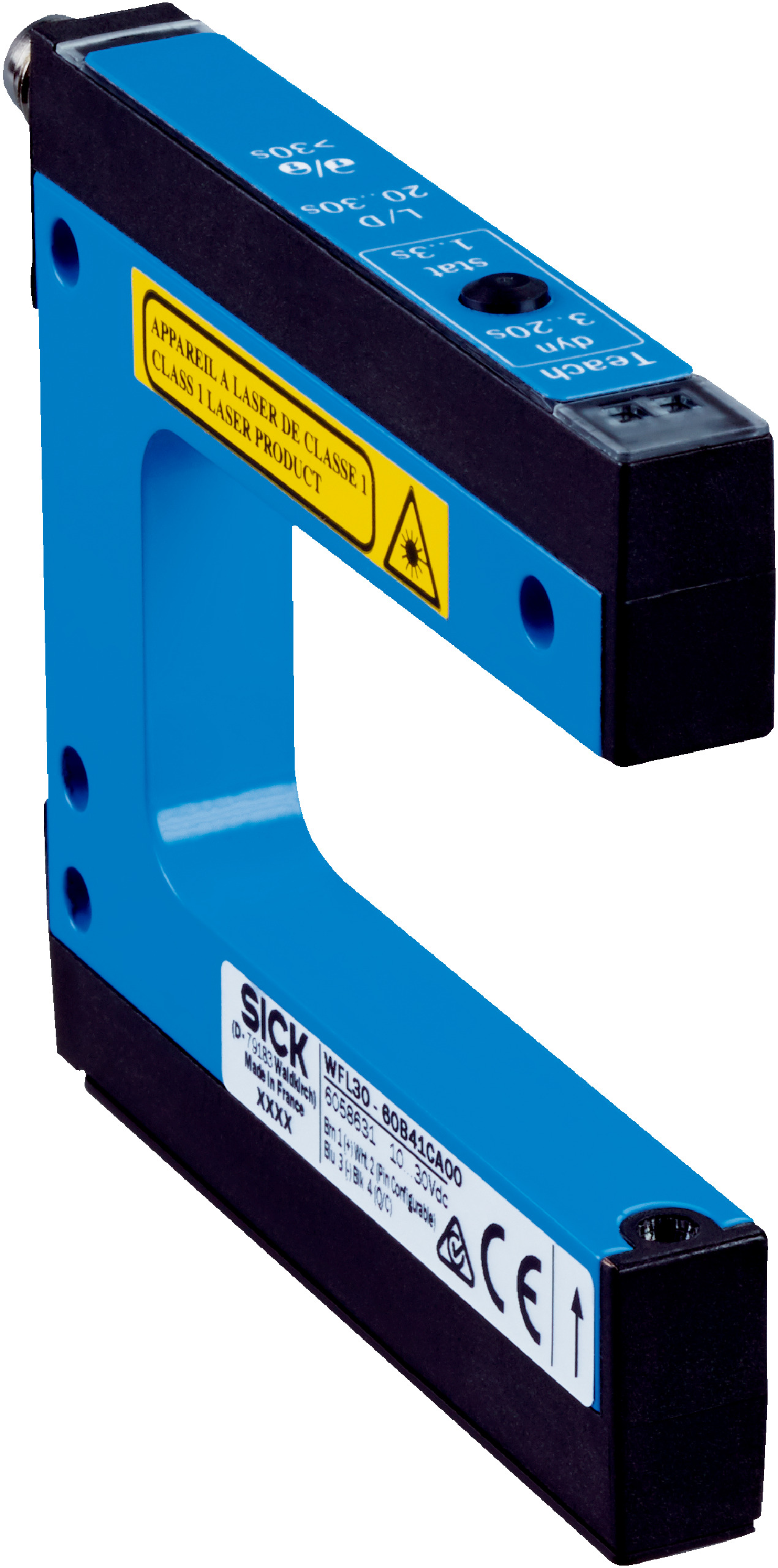

Optical Fork Sensor WFL30-95B41CA00 | Laser Detection | IP65 Rated | 11 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFL30-95B41CA00 features advanced laser detection technology, ensuring precise object detection with a minimum detectable size of just 0.05 mm. Designed for industrial automation, this sensor operates within a wide temperature range of -20 °C to +50 °C and boasts an impressive switching frequency of 11 kHz. Its robust IP65 rated aluminum housing makes it ideal for demanding environments, ensuring reliability and longevity in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection
- Fork width: 30 mm
- Fork depth: 95 mm
- Minimum detectable object: 0.05 mm
- Light source: Laser, red
- Adjustment: Teach-in button and cable (sensitivity, light/dark switching, key lock, dynamic teach-in)
- Teach-in modes: 1-point, 2-point, dynamic
- MTTFD: 80 years
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: 40 mA
- Switching frequency: 11 kHz
- Response time: ≤ 60 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Input teach-in voltage: Teach > 5 V, Run < 4 V
- Initialization time: 40 ms
- Time delay: Adjustable 0 ms to 520 ms via IO-Link
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +50 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 68.5mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with laser red light source
- Minimum detectable object size of 0.05 mm
- Adjustable via teach-in button and cable for sensitivity and switching modes
- High switching frequency of 11 kHz and fast response time ≤ 60 µs
- Push-pull PNP/NPN switching output with light/dark switching mode
- IP65 rated aluminum housing for robust industrial use
- IO-Link V1.1 compatible for advanced communication and configuration
- Wide ambient operating temperature range from -20 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable aluminum housing reduces waste through long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WFL30-95B41CA00 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
