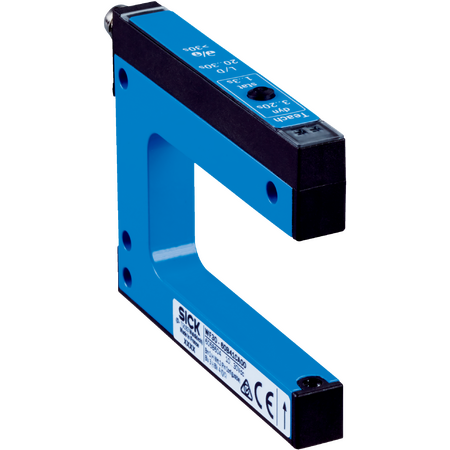

Optical Fork Sensor | LED Infrared Light Source | IP65 Rated | by SICK
The Optical Fork Sensor WF30-40B41CA71 features a high-speed LED infrared light source for precise object detection, with a minimum detectable size of just 0.2 mm. Ideal for industrial automation and label detection, this sensor operates within a wide temperature range of -20 °C to +60 °C and offers a robust IP65 enclosure for durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, IO-Link Fork Sensor, Label Detection Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Adjustment: Teach-in button and IO-Link configurable parameters
- Enclosure rating: IP65
- Ambient operating temperature: -20 °C to +60 °C
- Connection type: Male M8, 4-pin connector
- Safety parameters: MTTFD 97 years, DCavg 0%
- Dimensions (H x L x W): 60mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with LED infrared light source
- Minimum detectable object size of 0.2 mm
- Adjustable via teach-in button and IO-Link for sensitivity and switching modes
- High switching frequency of 15 kHz with response time ≤ 46 µs
- Push-pull PNP/NPN switching output with selectable light/dark switching
- Robust aluminum housing with IP65 enclosure rating
- Wide ambient operating temperature range from -20 °C to +60 °C
- Safety parameters with MTTFD of 97 years and DCavg 0%
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Label detection in manufacturing processes
- Counting and debouncing tasks in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable aluminum housing reduces material waste and extends product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WF30-40B41CA71 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
