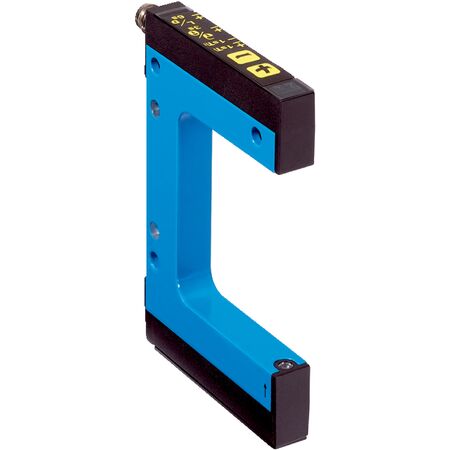

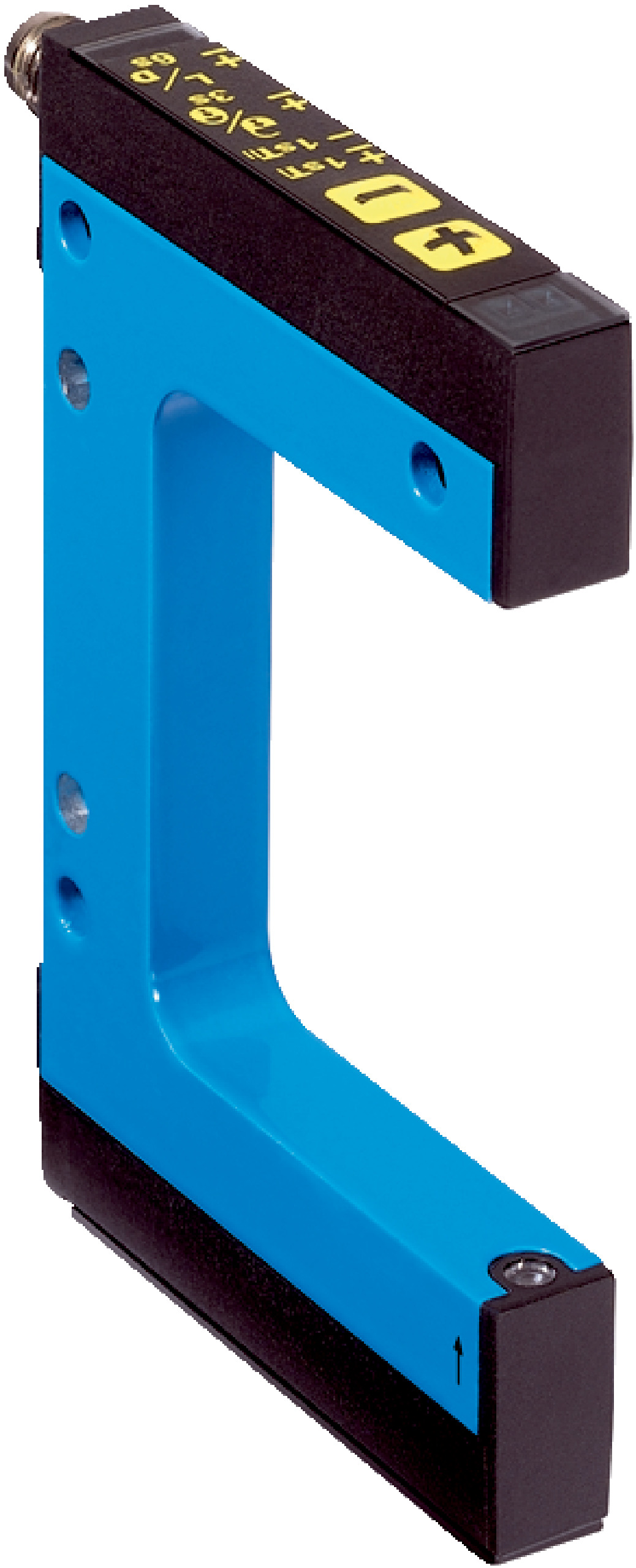

Optical Fork Sensor | Red Laser Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor with red laser detection is perfect for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and an IP65 rated aluminum housing, it ensures reliable performance in various environments. Ideal for quality assurance systems and material handling, this sensor features adjustable sensitivity and a 2-point teach-in mode for easy configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection with red laser
- Fork width: 15 mm, Fork depth: 95 mm
- Minimum detectable object size: 0.05 mm
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs with ± 20 µs stability
- Switching output: PNP/NPN with max output current 100 mA
- Switching mode: Light/dark switching
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load compliant with EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 53.5mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated aluminum housing for robust protection
- Male M8 4-pin connector for reliable electrical connection
- Safety parameters include MTTFD of 80 years and DCavg of 0%
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality assurance systems
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through extended product life
- Compliance with China-RoHS supports reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WFL15-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
