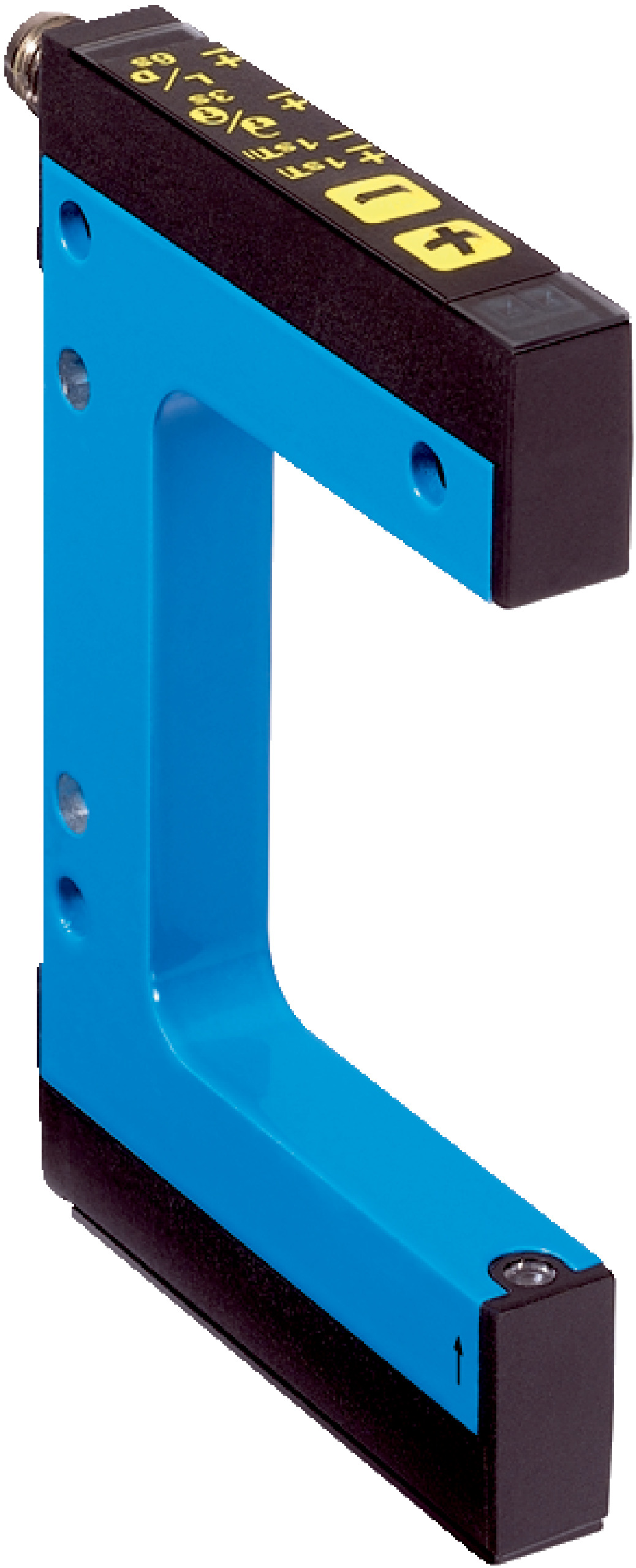

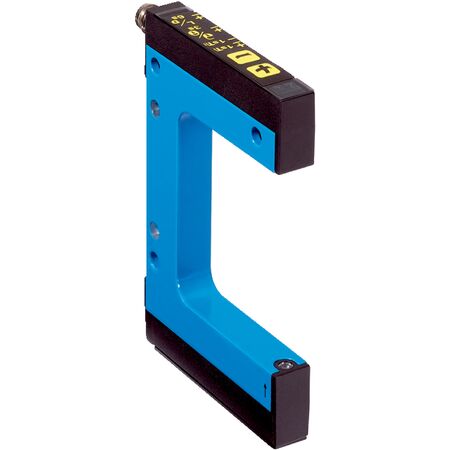

Optical Fork Sensor | Red Laser Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFL120-40B416 utilizes a red laser light source for precise object detection, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and a fast response time of ≤ 100 µs, this sensor ensures reliable performance in safety and quality assurance applications. Its IP65 rated enclosure protects against dust and water, ensuring durability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: –20 °C to +50 °C
- Ambient storage temperature: –30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Safety parameters: MTTFD 80 years, DCavg 0%
- Dimensions (H x L x W): 158mm x 47mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Fork width of 120 mm and fork depth of 42 mm
- Minimum detectable object size of 0.05 mm
- 2-point teach-in mode with plus/minus button for sensitivity and light/dark switching
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protected outputs
- PNP/NPN switching output options
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical sensors and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and quality assurance in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL120-40B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
