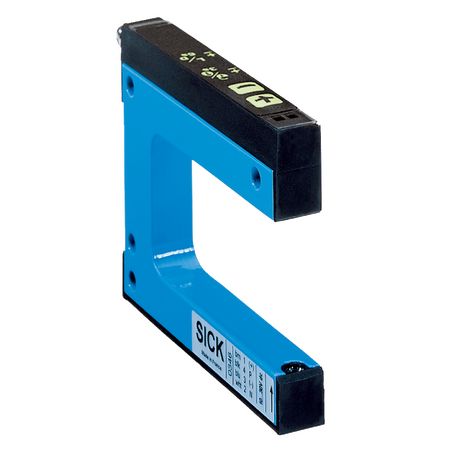

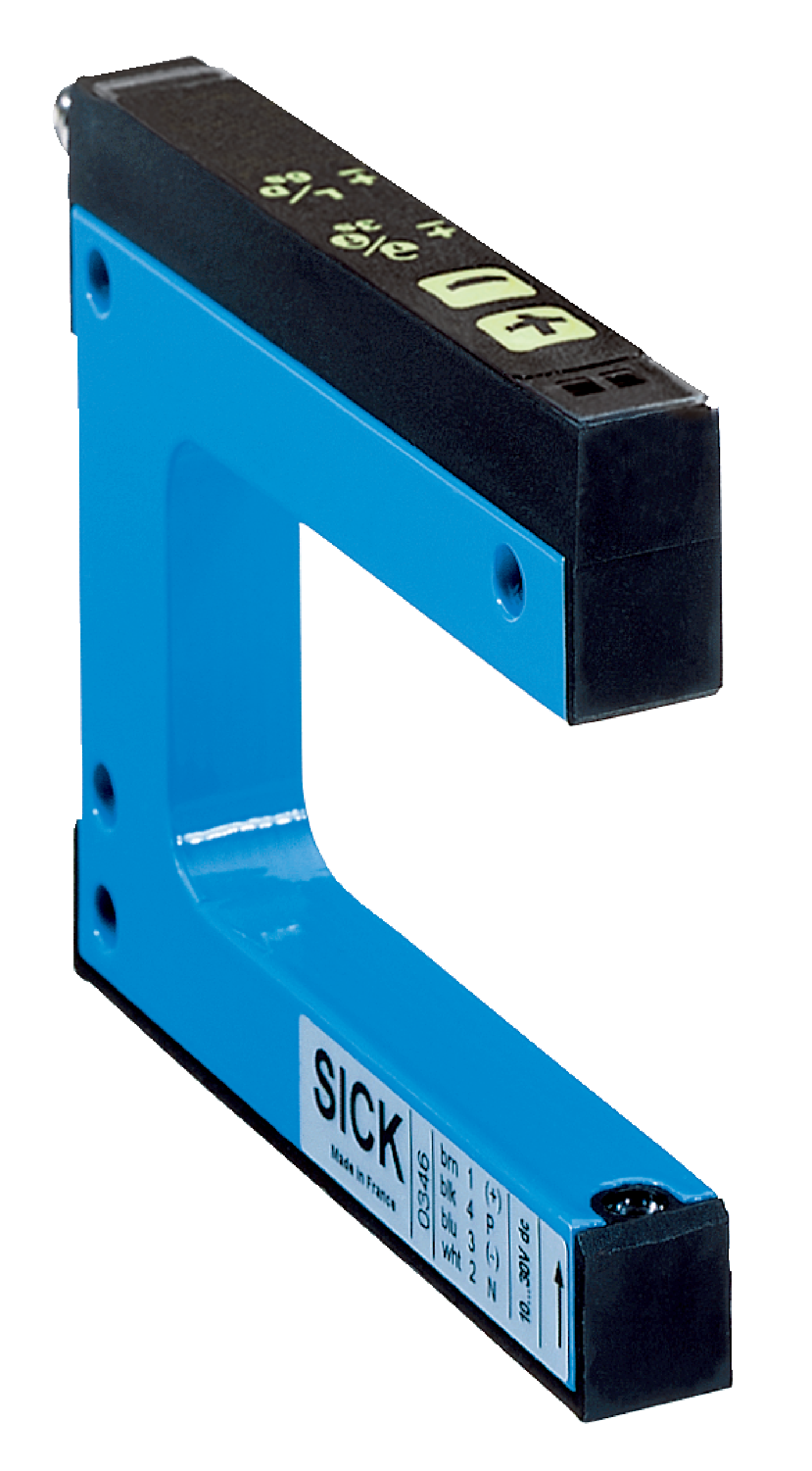

Optical Fork Sensor WF120-60B410 | IP65 Rated | 10 kHz Switching Frequency | Adjustable Sensitivity | by SICK
The Optical Fork Sensor WF120-60B410 is designed for industrial automation, featuring a high switching frequency of 10 kHz and adjustable sensitivity for precise object detection. With an IP65 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for applications like label detection and quality control in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, SICK Fork Sensor WF120, Industrial Fork Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching output: PNP/NPN light/dark switching
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male M8, 4-pin connector
- Dimensions (H x L x W): 150mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using LED infrared light
- Minimum detectable object size of 0.2 mm
- Adjustable sensitivity and light/dark switching via plus/minus button
- High switching frequency of 10 kHz with response time ≤ 100 µs
- Protection class III with reverse polarity and short-circuit protection
- IP65 rated enclosure for dust and water resistance
- Male M8 4-pin connector for easy connection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Label detection in manufacturing processes
- Precision measurement and quality control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 40 mA current draw
- Durable aluminum housing reduces material waste
- Long MTTFD of 97 years ensures extended product life and less frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WF120-60B410 Fork Sensor is available for immediate purchase, ideal for industrial automation and precision detection applications.
