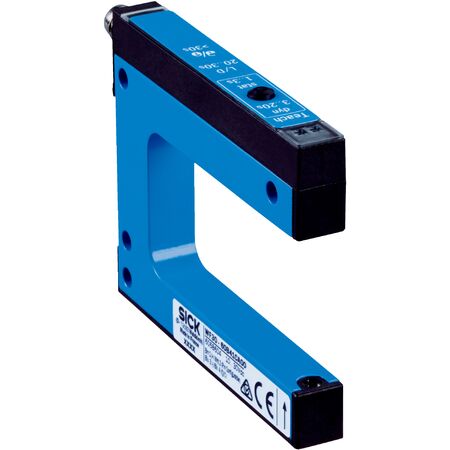

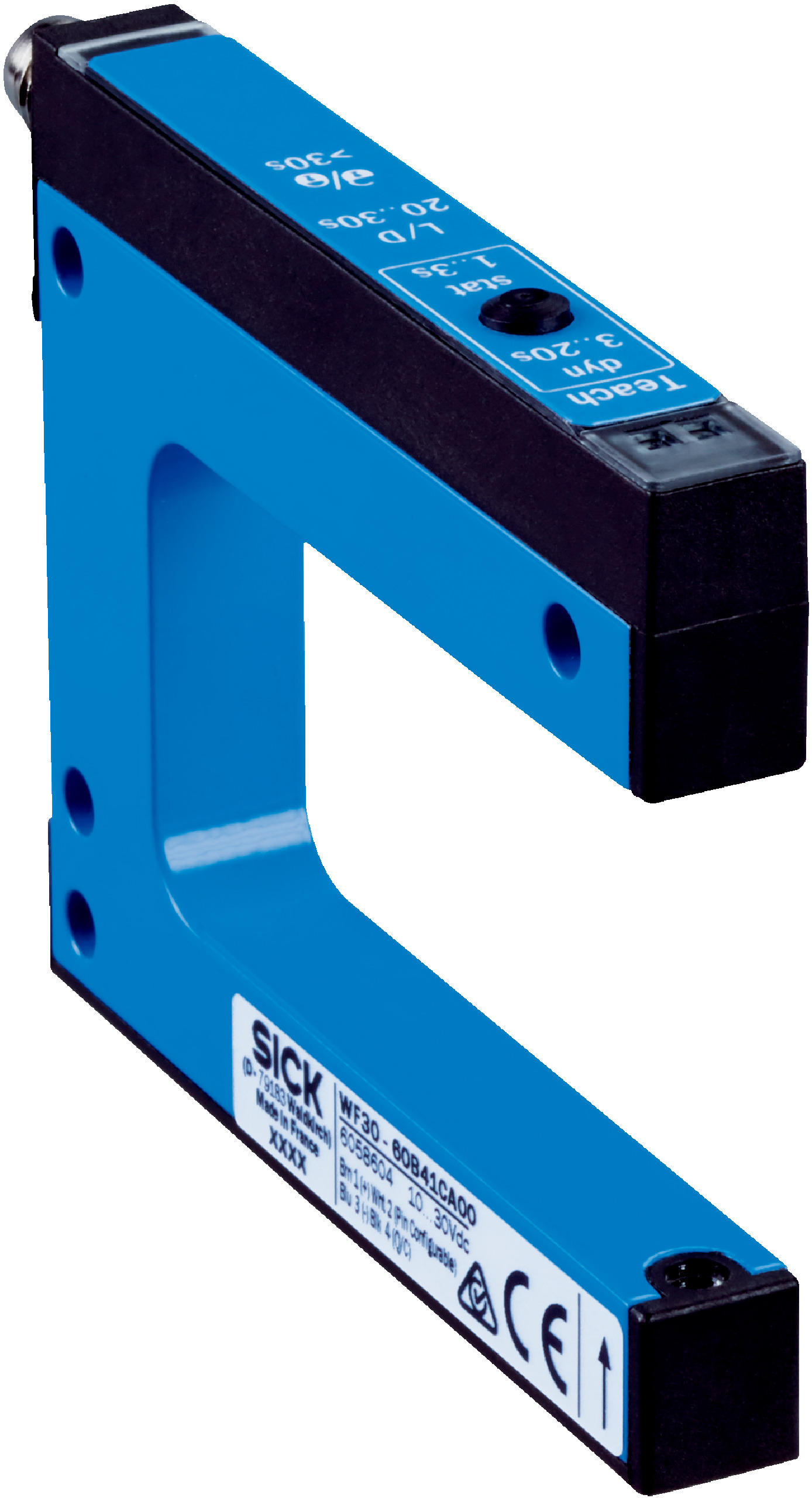

Optical Fork Sensor WF120-95B41CA00 | IP65 Rated | 15 kHz Switching Frequency | Infrared LED Light Source | by SICK
The Optical Fork Sensor WF120-95B41CA00 is designed for precise object and label detection in industrial automation. With a high switching frequency of 15 kHz and a fast response time of ≤ 46 µs, it ensures reliable performance. Featuring an IP65 rated aluminum housing, this sensor is built for durability and efficiency, making it ideal for quality control and packaging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching frequency: 15 kHz
- Response time: ≤ 46 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Enclosure rating: IP65
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Shock load: According to EN 60068-2-27
- Protection class: III
- Teach-in modes: 1-point, 2-point, dynamic
- Light source: LED, infrared
- Dimensions (H x L x W): 150mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 120 mm and fork depth of 95 mm
- Minimum detectable object size of 0.2 mm
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Selectable light/dark switching output function
- IO-Link V1.1 communication interface for advanced configuration
- High switching frequency of 15 kHz and fast response time ≤ 46 µs
- Push-pull PNP/NPN switching output with 100 mA max output current
- IP65 rated aluminum housing for robust industrial use
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Label detection in packaging lines
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WF120-95B41CA00 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
