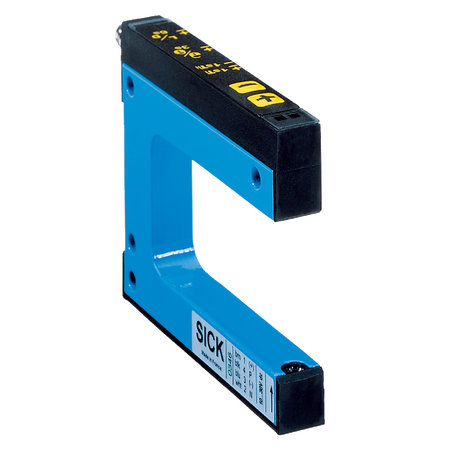

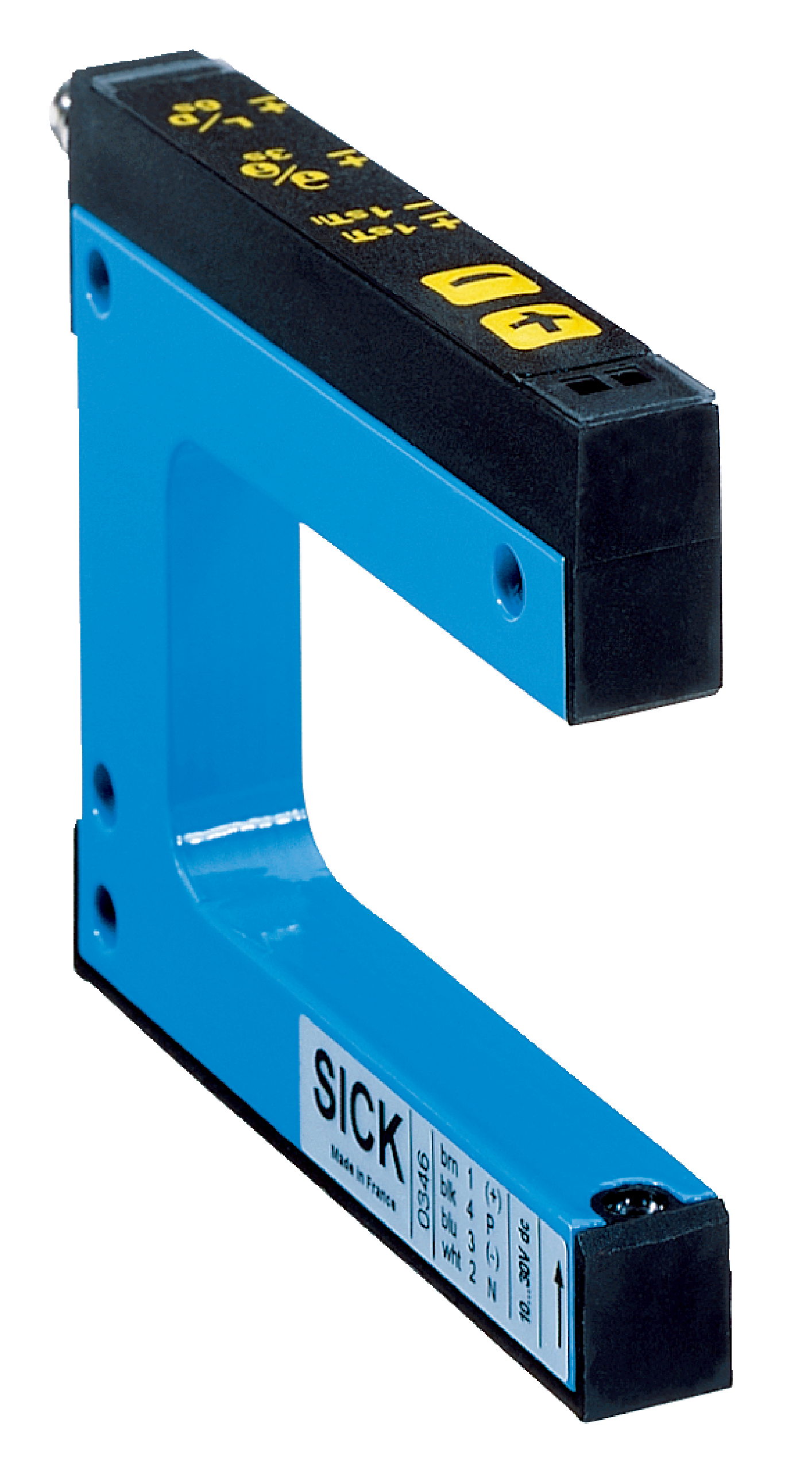

Optical Fork Sensor WF15-40B416 | Infrared Detection | Adjustable Sensitivity | IP65 Rated | by SICK
The Optical Fork Sensor WF15-40B416 utilizes infrared detection for precise object sensing, making it ideal for industrial automation and quality control systems. With a minimum detectable object size of just 0.2 mm and adjustable sensitivity, this robust sensor ensures reliable performance in various applications, including material handling and packaging. Its durable aluminum housing and IP65 rating provide excellent protection against environmental factors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, SICK WF15 Fork Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Optical detection
- Fork width: 15 mm
- Fork depth: 42 mm
- Light source: LED, Infrared light
- Minimum detectable object: 0.2 mm
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching, key lock
- Teach-in mode: 2-point teach-in
- Output function: Light/dark switching selectable via button
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Male connector M8, 4-pin
- Housing material: Aluminum
- Enclosure rating: IP65
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Dimensions (H x L x W): 45mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using infrared LED light source
- Minimum detectable object size of 0.2 mm
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- PNP/NPN switching output with short-circuit and reverse polarity protection
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -20 °C to +60 °C
- Male M8 4-pin connector for easy connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Quality control systems
- Positioning and counting in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable aluminum housing reduces waste through long product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WF15-40B416 Fork Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
