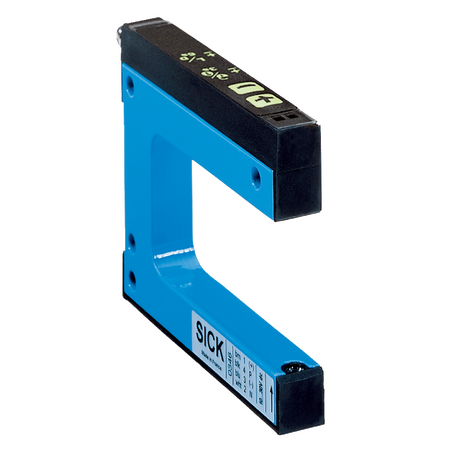

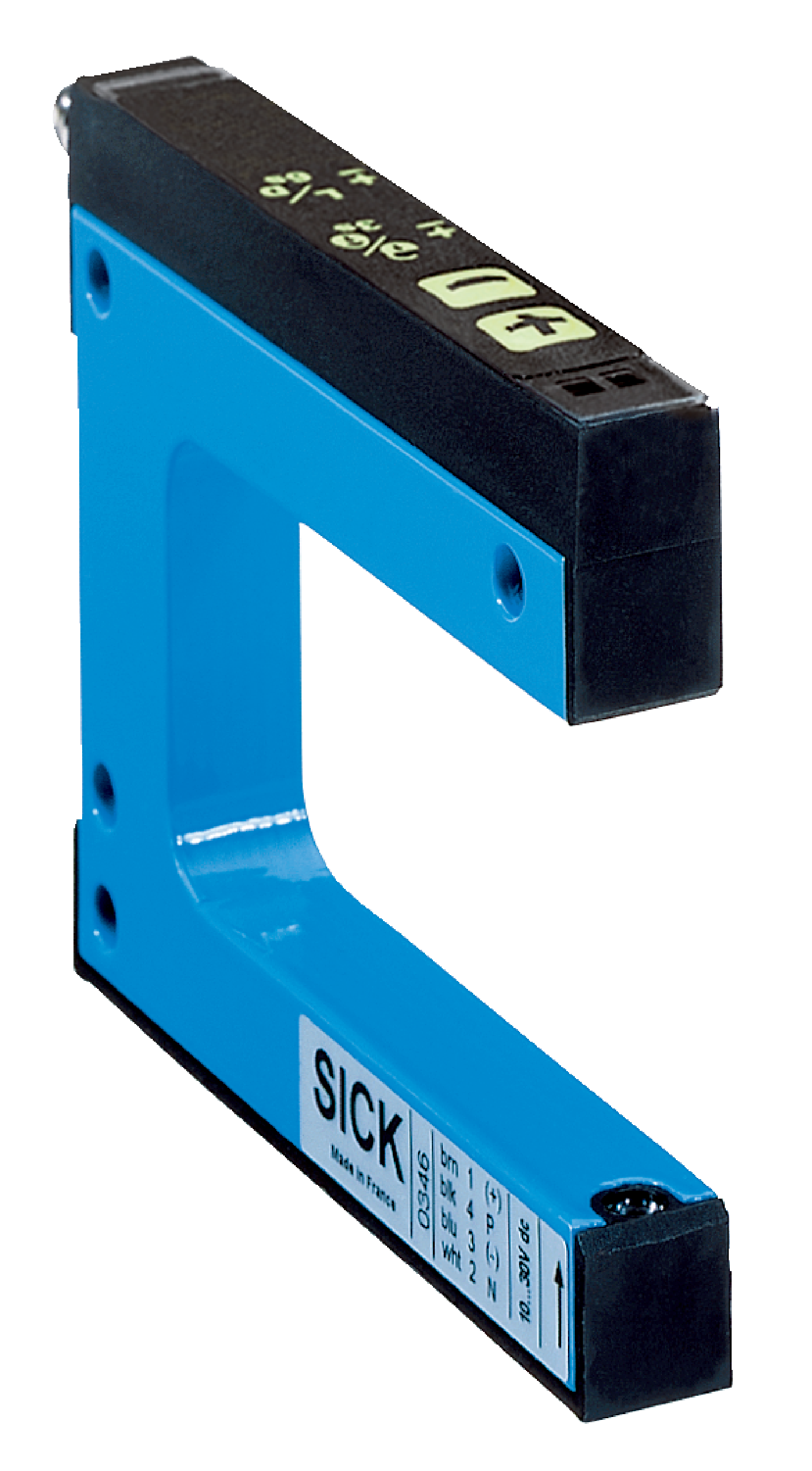

Optical Fork Sensor WF2-40B410 | IP65 Rated | 10 kHz Switching Frequency | Adjustable Sensitivity | by SICK
The Optical Fork Sensor WF2-40B410 is designed for precision detection in industrial automation, featuring a high switching frequency of 10 kHz and adjustable sensitivity for versatile applications. With an IP65 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for object detection and label detection in packaging lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, SICK WF2 Sensor, Industrial Fork Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching output: PNP/NPN light/dark switching selectable
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Enclosure rating: IP65
- Housing material: Aluminum
- Connector: Male M8, 4-pin
- Dimensions (H x L x W): 32mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using LED infrared light
- Minimum detectable object size of 0.2 mm
- Adjustable sensitivity and light/dark switching via plus/minus button
- High switching frequency of 10 kHz with response time ≤ 100 µs
- Protection class III with reverse polarity and short-circuit protection
- IP65 rated enclosure for dust and water resistance
- Male M8 4-pin connector for easy integration
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Label detection in packaging lines
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 40 mA current draw
- Durable aluminum housing extends product life reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WF2-40B410 Fork Sensor is available for immediate purchase, ideal for industrial automation and precision detection applications.
