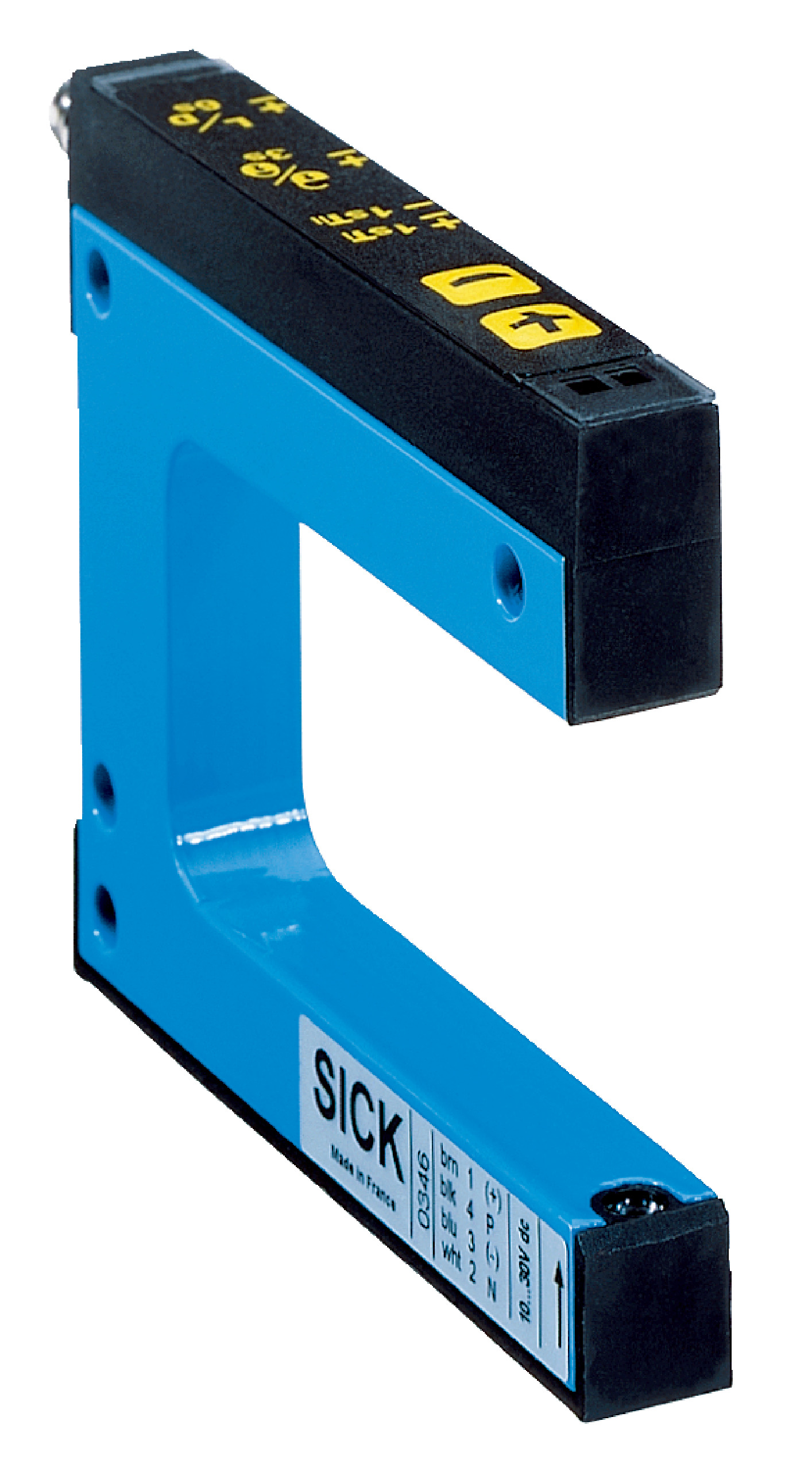

Optical Fork Sensor WF2-40B416 | Infrared Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WF2-40B416 features an infrared detection principle with a 2 mm fork width and 42 mm depth, making it ideal for precise object detection in industrial automation. With a high switching frequency of 10 kHz and a fast response time of ≤ 100 µs, this sensor is perfect for quality control in manufacturing lines and position sensing in packaging machinery. Its IP65 rating ensures durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Stability of response time: ± 20 µs
- Jitter: 40 µs
- Output current max: 100 mA
- Switching output: PNP/NPN selectable
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 32mm x 57mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- 2 mm fork width and 42 mm fork depth for precise detection
- Minimum detectable object size of 0.2 mm
- Adjustable settings via plus/minus button including teach-in, sensitivity, and light/dark switching
- 2-point teach-in mode for easy calibration
- Light/dark switching output selectable via button
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated enclosure for dust and water resistance
- Reverse polarity and short-circuit protected output
- Male M8 4-pin connector for easy integration
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Position sensing in packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED infrared light source
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WF2-40B416 Optical Fork Sensor is available for immediate purchase. Ideal for industrial automation and manufacturing quality control applications.
