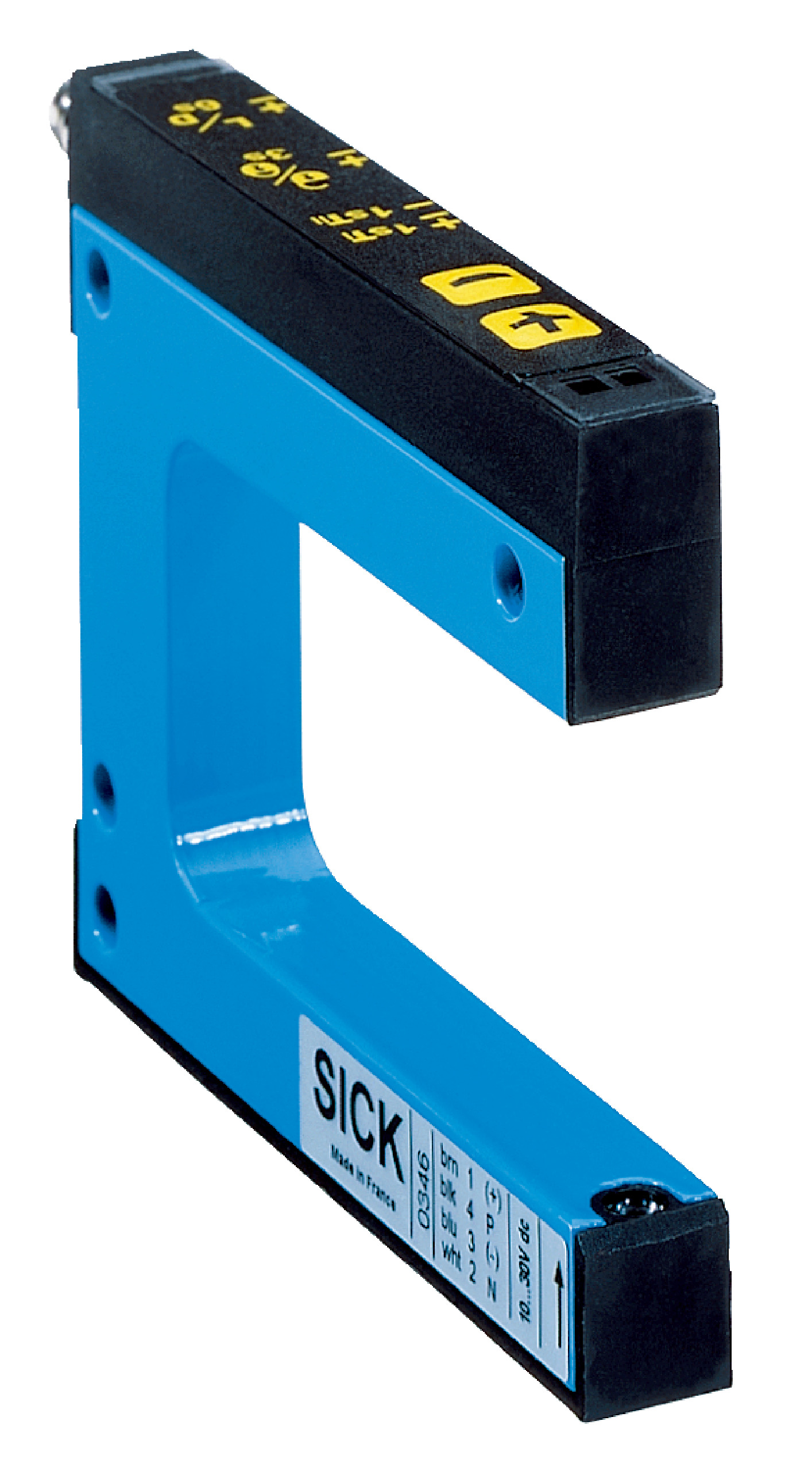

Optical Fork Sensor WF2-60B416 | Infrared Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WF2-60B416 utilizes infrared detection for precise object sensing, making it ideal for industrial automation and quality control systems. With a high switching frequency of 10 kHz and a fast response time of ≤ 100 µs, this sensor ensures reliable performance in various applications. Its IP65 rated enclosure provides dust and water resistance, while the durable aluminum housing enhances longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Stability of response time: ± 20 µs
- Jitter: 40 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male M8, 4-pin connector
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 32mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using infrared LED light source
- Fork width of 2 mm and fork depth of 59 mm for precise detection
- Minimum detectable object size of 0.2 mm
- Adjustable settings via plus/minus button including teach-in, sensitivity, light/dark switching, and key lock
- 2-point teach-in mode for easy calibration
- Selectable light/dark switching output function
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated enclosure for dust and water resistance
- Reverse polarity and short-circuit protected output
- Male M8 4-pin connector for easy connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control systems
- Packaging machinery
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WF2-60B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
