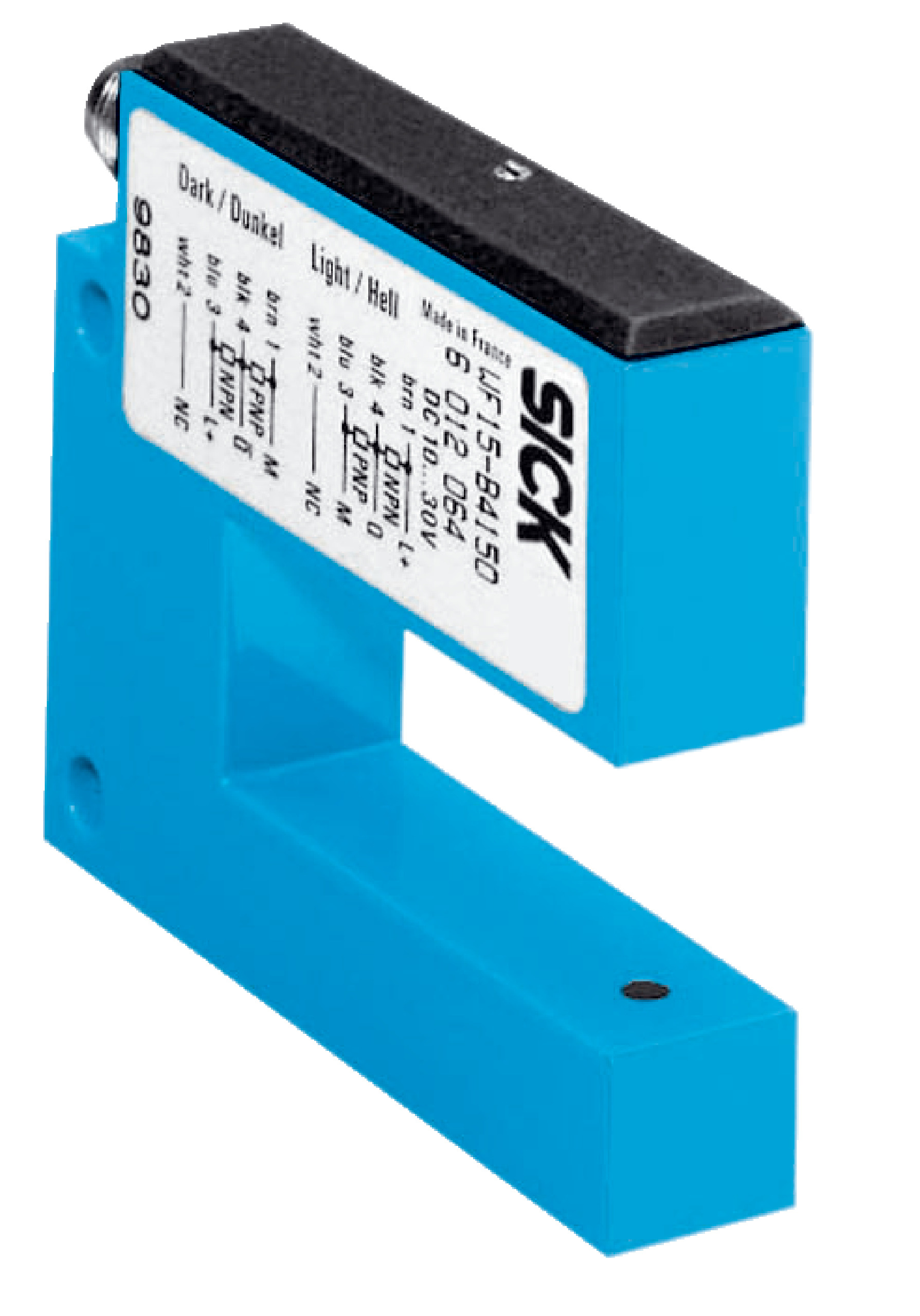

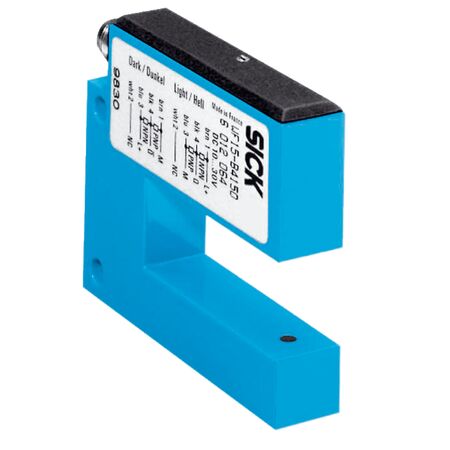

Optical Fork Sensor WF225-B4150 | IP65 Rated | Infrared Detection | 0.5 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF225-B4150 is designed for industrial automation, featuring infrared detection with a high switching frequency of 0.5 kHz and a rapid response time of ≤ 1 ms. With an IP65 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for safety monitoring and object detection in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching output: PNP/NPN light/dark switching
- Output current max: 100 mA
- Switching frequency: 0.5 kHz
- Response time: ≤ 1 ms
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +60 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load resistance according to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 262.5mm x 80mm x 12mm
- Weight: 0.16 kg
Key Features
- Optical detection principle using infrared LED light source
- Light/dark switching output adjustable via reverse polarity
- High switching frequency of 0.5 kHz with response time ≤ 1 ms
- IP65 rated enclosure for dust and water protection
- Housing made of durable aluminum
- Short-circuit protected output with interference pulse suppression
- Wide operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 40 mA current draw
- Long service life with MTTFD of 97 years reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WF225-B4150 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
