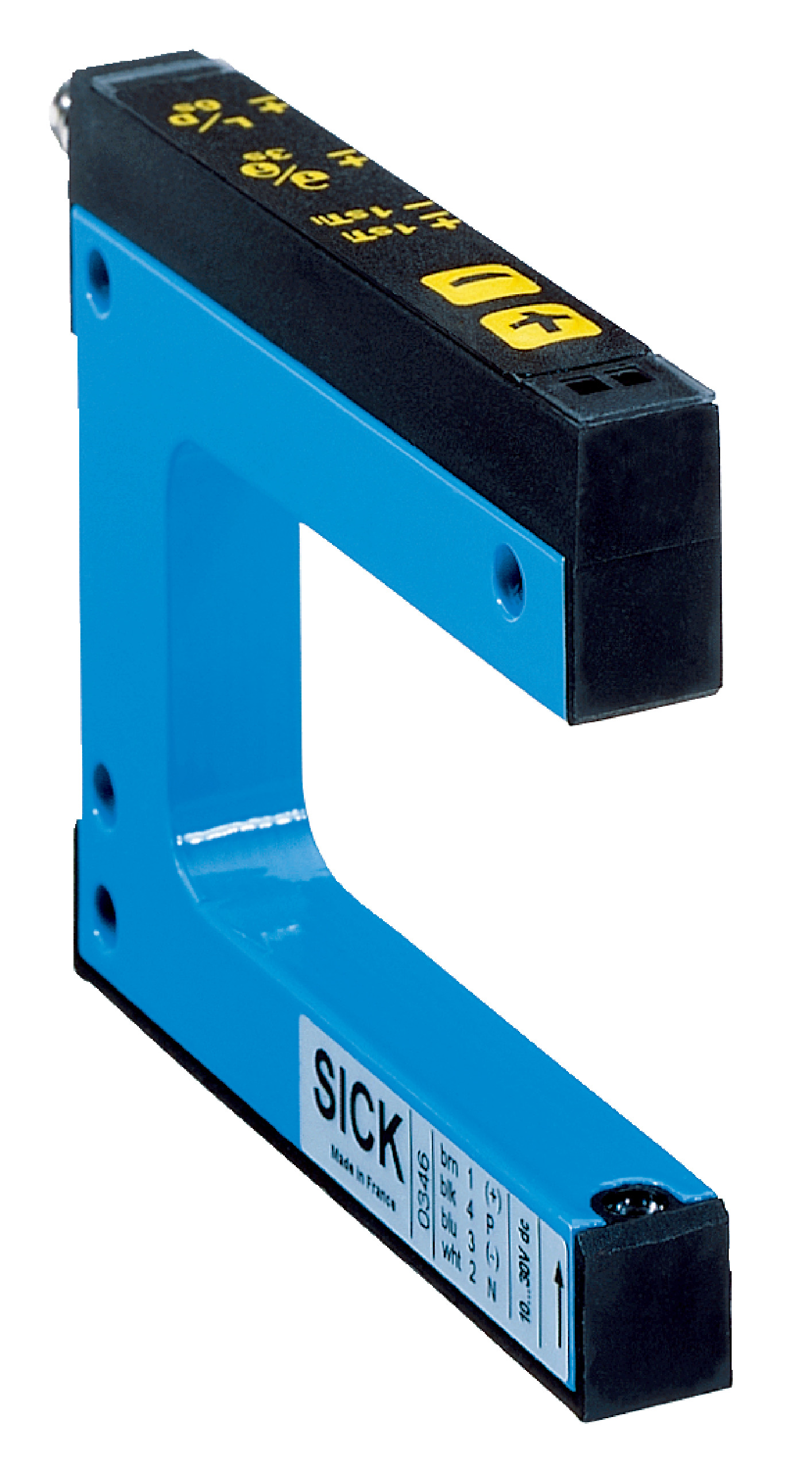

Optical Fork Sensor WF30-95B416 | Infrared Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF30-95B416 utilizes infrared detection for precise object sensing, making it ideal for industrial automation and packaging applications. With an IP65 rating for dust and water resistance, this sensor features adjustable sensitivity and a high switching frequency of 10 kHz, ensuring reliable performance in various environments. Perfect for quality control and conveyor systems, it’s designed for easy integration with a male M8 connector.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection
- Fork width: 30 mm
- Fork depth: 95 mm
- Minimum detectable object: 0.2 mm
- Light source: Infrared LED
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching, key lock
- Teach-in mode: 2-point teach-in
- Output function: Light/dark switching selectable via button
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Stability of response time: ± 20 µs
- Jitter: 40 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male M8, 4-pin connector
- Operating temperature: -20°C to +60°C
- Storage temperature: -30°C to +80°C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 60mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using infrared LED light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy setup
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated enclosure for dust and water resistance
- Reverse polarity and short-circuit protected circuitry
- Male M8 4-pin connector for easy integration
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Packaging machinery
- Conveyor systems
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED infrared light source
- Durable aluminum housing reduces waste through long product life
- IP65 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WF30-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and packaging applications.
