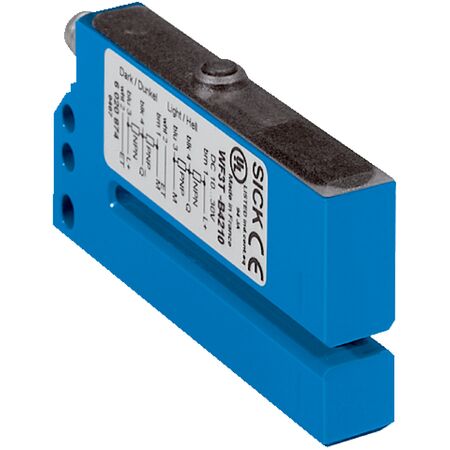

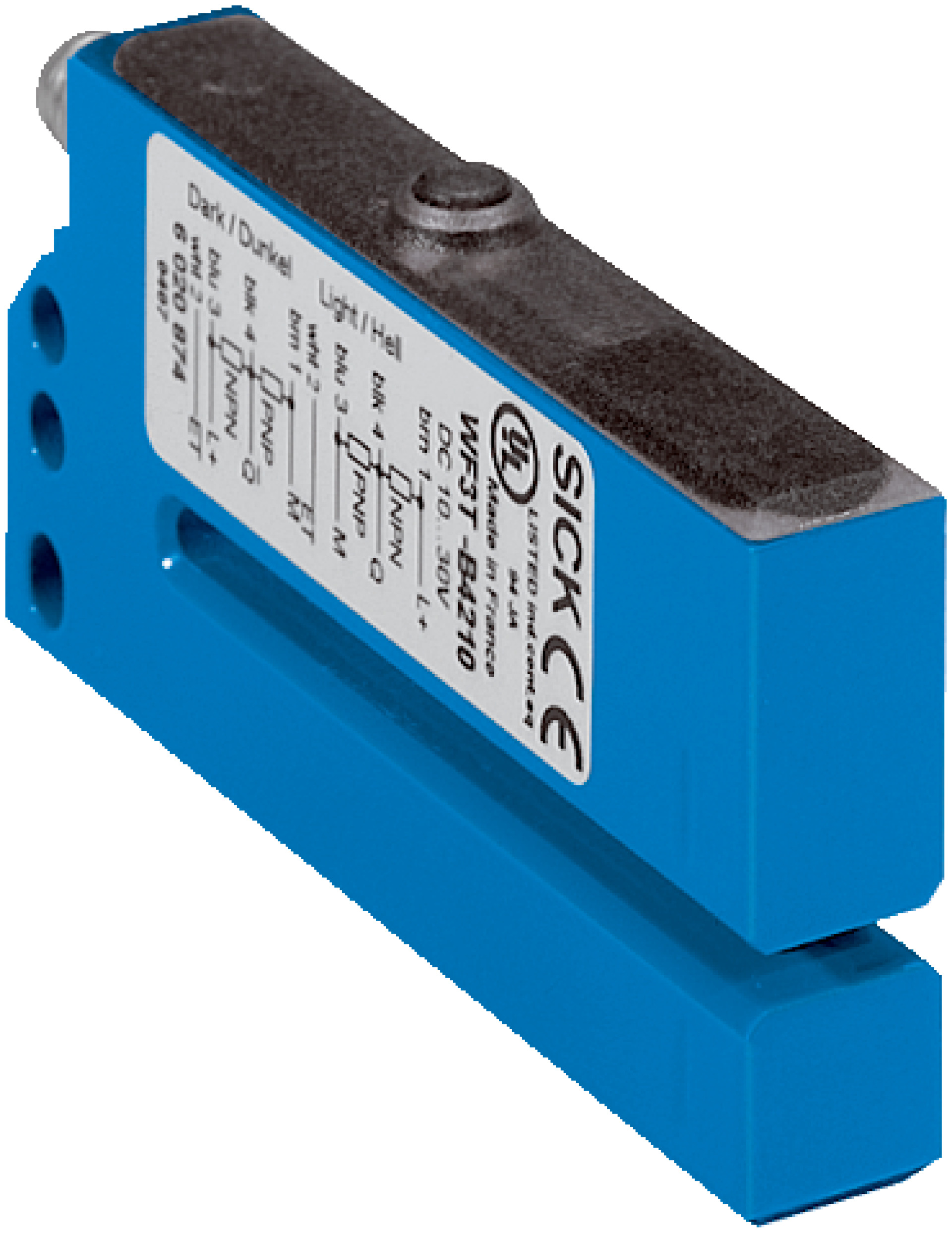

Optical Fork Sensor WF3T-B4210 | Infrared Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF3T-B4210 is designed for precise label detection and object detection in industrial automation. With a high switching frequency of 10 kHz and a fast response time of ≤ 50 µs, this sensor ensures reliable performance. Its robust IP65 rated aluminum housing provides durability, making it ideal for packaging and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 50 µs
- Output: PNP/NPN light/dark switching
- Output current max: 100 mA
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 3,000 klx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 37.5mm x 80mm x 12mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Light/dark switching output function adjustable via reverse polarity
- High switching frequency of 10 kHz and fast response time ≤ 50 µs
- IP65 rated aluminum housing for robust protection
- Teach-in function for easy configuration
- Short-circuit protected output with interference pulse suppression
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for label detection
- Object detection in manufacturing processes
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through long product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WF3T-B4210 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
