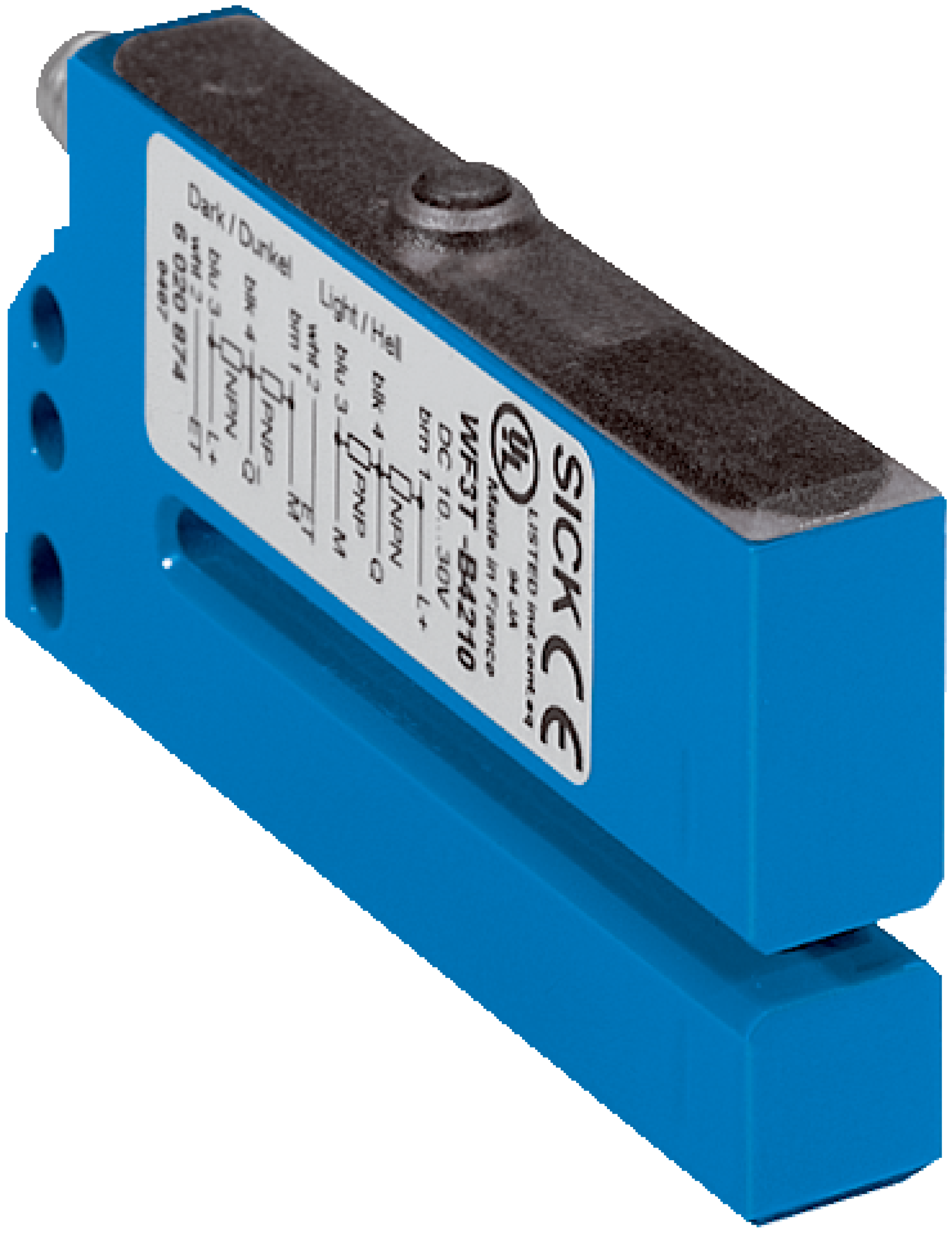

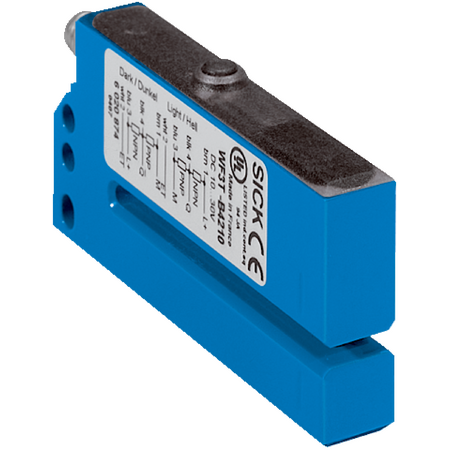

Optical Fork Sensor WF3T-B4210 | IP65 Rated | 10 kHz Switching Frequency | Adjustable Light/Dark Output | by SICK
The Optical Fork Sensor WF3T-B4210 is designed for precise label detection and object detection in industrial automation. With a high switching frequency of 10 kHz and an impressive response time of ≤ 50 µs, this sensor ensures reliable performance in manufacturing processes. Its IP65 rated enclosure provides dust and water resistance, making it ideal for packaging and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, Label Detection Sensor, SICK Fork Sensor WF3T-B4210
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 50 µs
- Output: PNP/NPN light/dark switching
- Output current max: 100 mA
- Connection: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP65
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 3,000 klx
- Shock load: According to EN 60068-2-27
- Housing material: Aluminum
- Fork width: 3 mm
- Fork depth: 60 mm
- Dimensions (H x L x W): 37.5mm x 80mm x 12mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using LED infrared light
- Light/dark switching output function adjustable via reverse polarity
- High switching frequency of 10 kHz with response time ≤ 50 µs
- Teach-in function for easy configuration
- Short-circuit protected output with interference pulse suppression
- IP65 rated enclosure for dust and water resistance
- Shock load resistant according to EN 60068-2-27
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for label detection
- Object detection in manufacturing processes
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through long product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WF3T-B4210 Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
