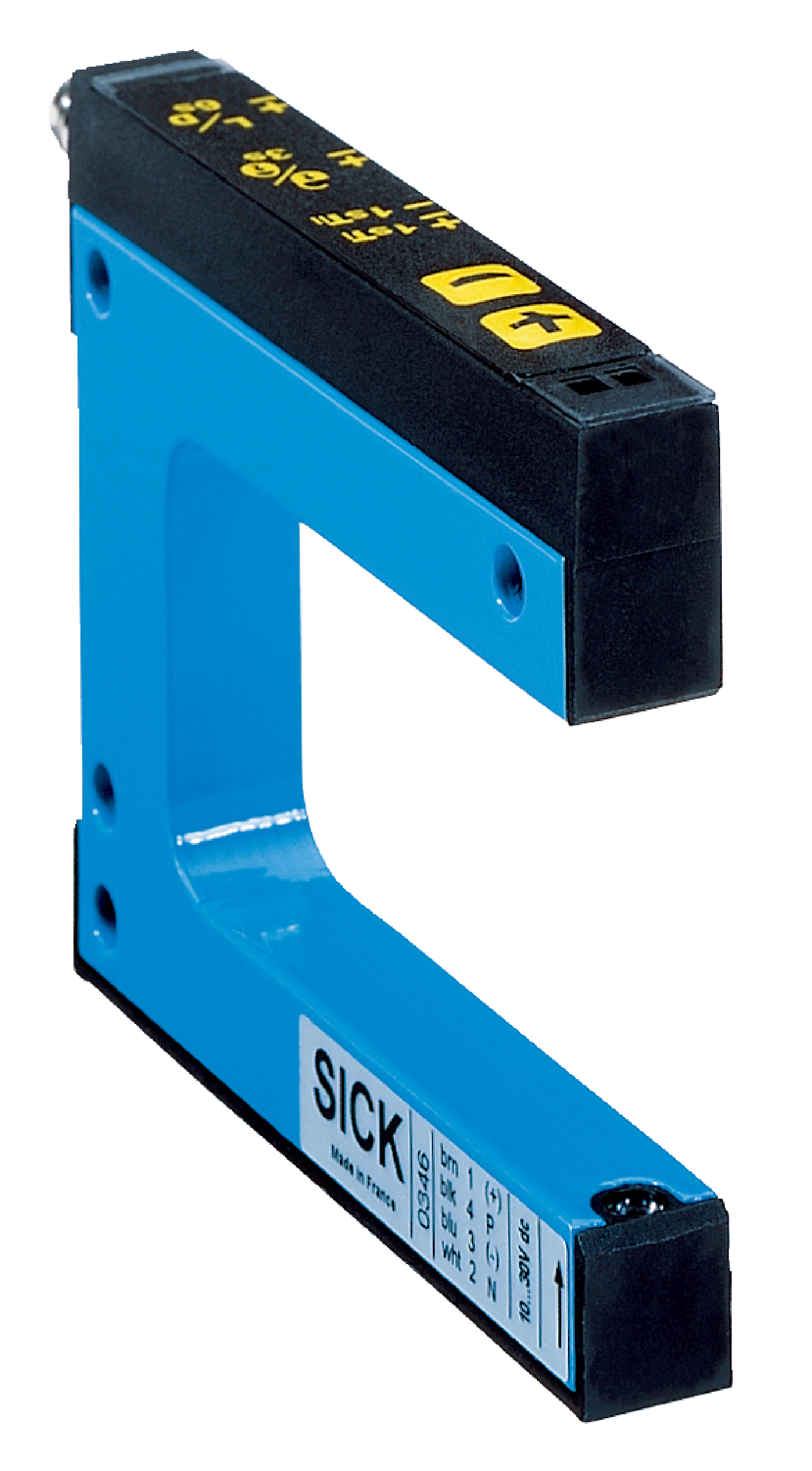

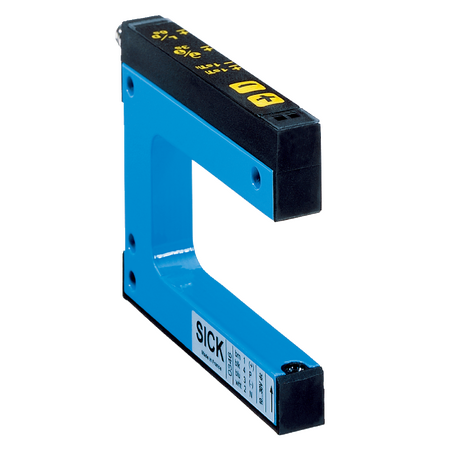

Optical Fork Sensor WF5-60B416 | Infrared Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WF5-60B416 utilizes infrared detection for precise object sensing, making it ideal for industrial automation and packaging machinery. With a high switching frequency of 10 kHz and an IP65 enclosure rating, this sensor ensures reliable performance in various environments. Its robust aluminum housing and adjustable sensitivity features make it perfect for quality control and inspection processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, SICK WF5 Sensor, Industrial Object Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Output current max: 100 mA
- Switching output: PNP/NPN light/dark switching
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Enclosure rating: IP65
- Shock load: According to EN 60068-2-27
- Dimensions (H x L x W): 35mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using infrared LED light source
- Minimum detectable object size of 0.2 mm
- Adjustable via plus/minus button for sensitivity, light/dark switching, and key lock
- 2-point teach-in mode for easy setup
- Light/dark switching output selectable via button
- High switching frequency of 10 kHz with response time ≤ 100 µs
- PNP/NPN switching output with short-circuit and reverse polarity protection
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -20 °C to +60 °C
- Shock load resistance according to EN 60068-2-27
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Packaging machinery
- Material handling systems
- Quality control and inspection processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable aluminum housing reduces waste through extended product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WF5-60B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
