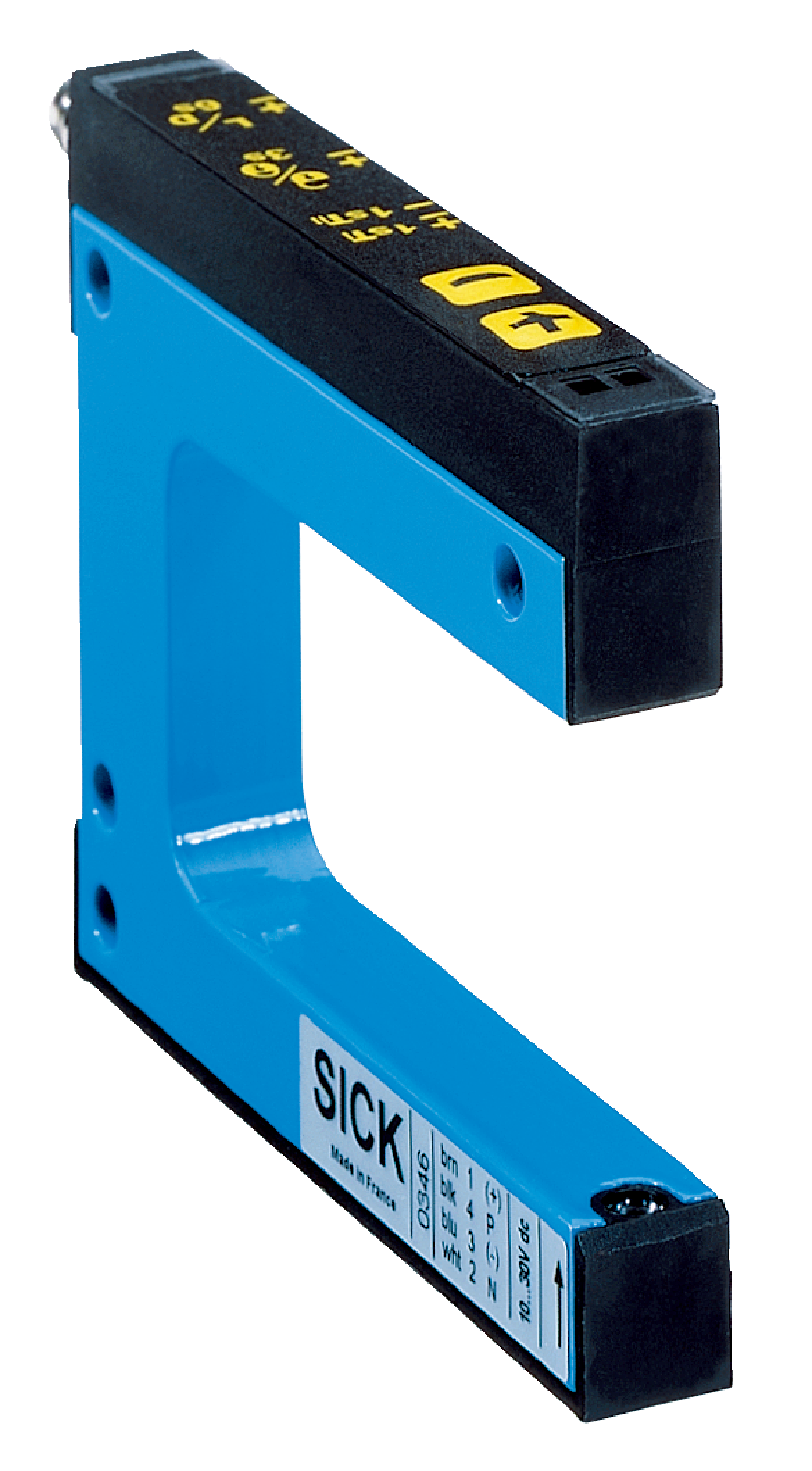

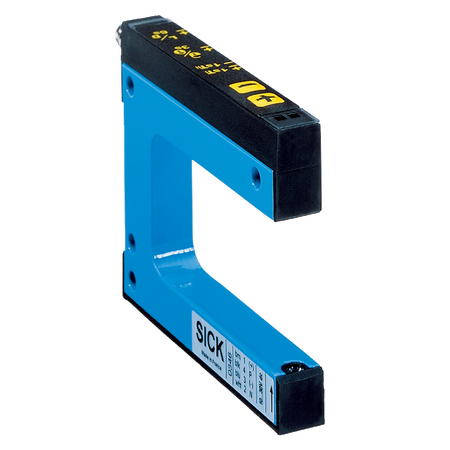

Optical Fork Sensor WF50-60B416 | IP65 Rated | 10 kHz Switching Frequency | Adjustable Sensitivity | by SICK
The Optical Fork Sensor WF50-60B416 is designed for precise object detection in industrial automation, featuring a high switching frequency of 10 kHz and an adjustable sensitivity for versatile applications. With an IP65 enclosure rating and robust aluminum housing, it ensures durability and reliability in manufacturing process control and quality assurance systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fork Sensor, Infrared Fork Sensor, SICK Fork Sensor WF50-60B416, Industrial Fork Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Output current max: 100 mA
- Switching output: PNP/NPN with light/dark switching
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -20°C to +60°C
- Storage temperature: -30°C to +80°C
- Ambient light immunity: ≤ 10,000 lx
- Enclosure rating: IP65
- Shock load: According to EN 60068-2-27
- Dimensions (H x L x W): 80mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using LED infrared light
- Minimum detectable object size of 0.2 mm
- Adjustable via plus/minus button for sensitivity, light/dark switching, and key lock
- 2-point teach-in mode for easy setup
- Selectable light/dark switching output function
- High switching frequency of 10 kHz with response time ≤ 100 µs
- PNP/NPN switching output with short-circuit and reverse polarity protection
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -20°C to +60°C
- Shock resistant according to EN 60068-2-27
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality assurance systems
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable aluminum housing reduces material waste and extends product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK WF50-60B416 Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
