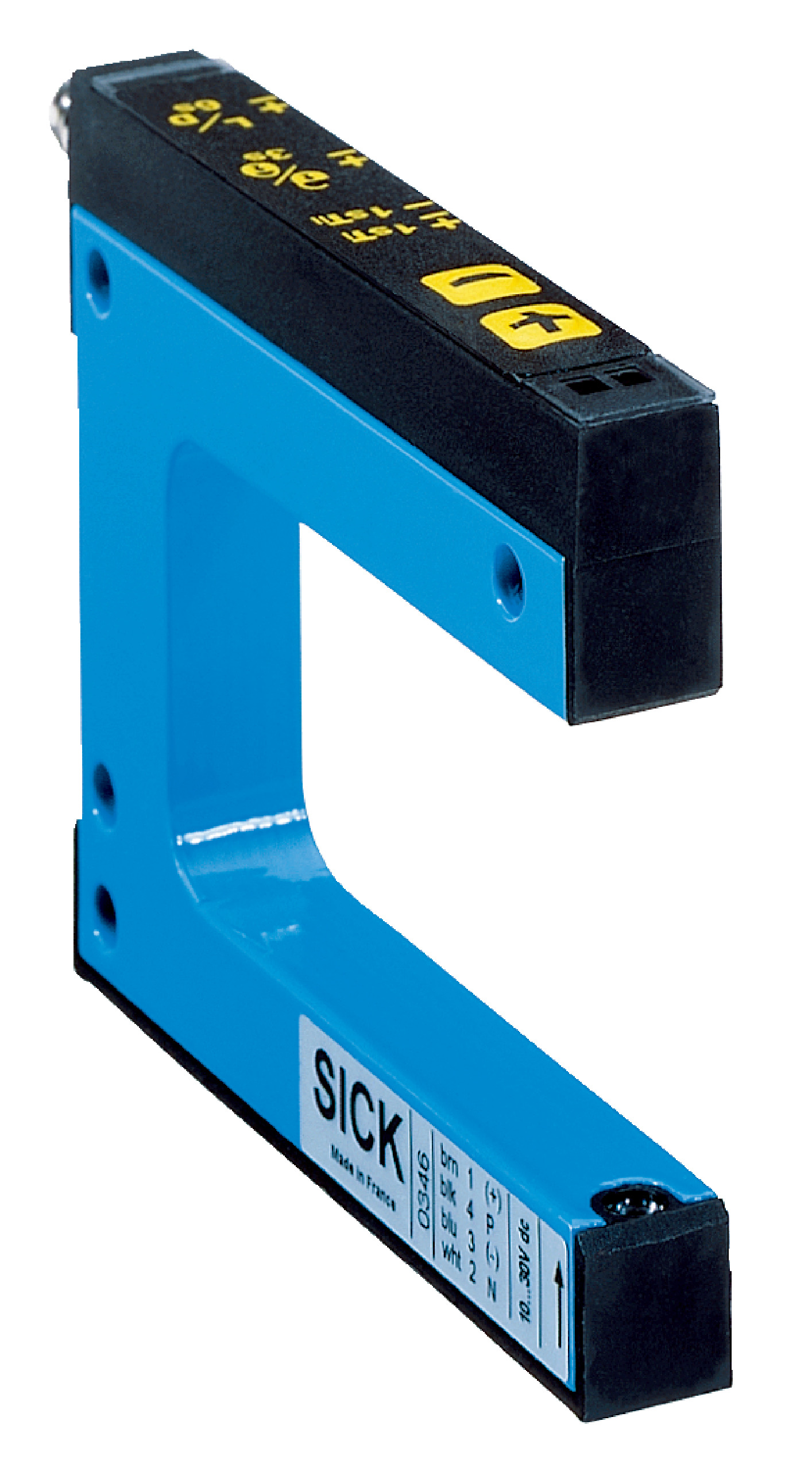

Optical Fork Sensor WF50-95B416 | Infrared Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WF50-95B416 features an infrared detection principle with a fork width of 50 mm and a depth of 95 mm, making it ideal for industrial automation and object detection applications. With a high switching frequency of 10 kHz and a fast response time of ≤ 100 µs, this sensor ensures precise operation in packaging machinery and material handling systems. Its durable aluminum housing and IP65 rating provide reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Stability of response time: ± 20 µs
- Jitter: 40 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 80mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Fork width of 50 mm and fork depth of 95 mm
- Minimum detectable object size of 0.2 mm
- Adjustable settings via plus/minus button including teach-in, sensitivity, light/dark switching, and key lock
- 2-point teach-in mode for easy configuration
- Selectable light/dark switching output function
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Male connector M8, 4-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Packaging machinery
- Material handling systems
- Quality control and inspection
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED infrared light source
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WF50-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
