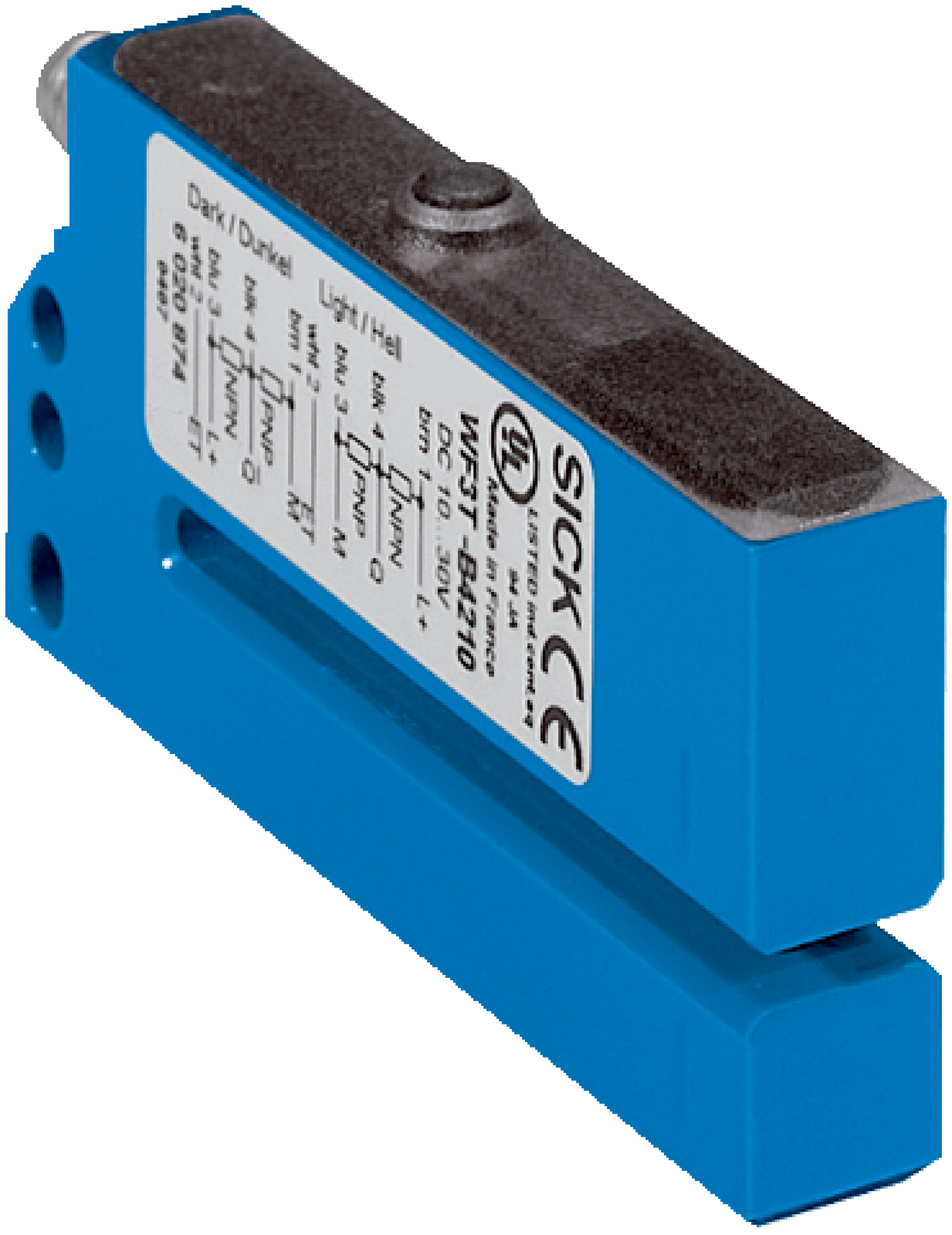

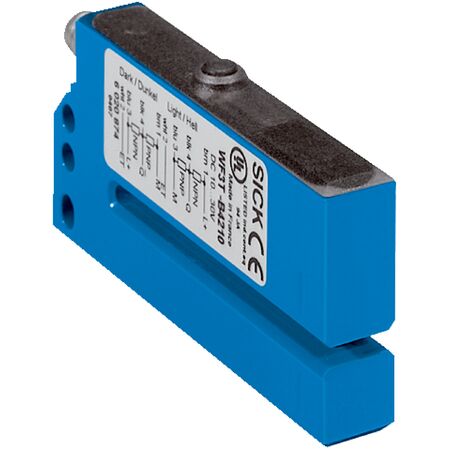

Optical Fork Sensor WF5T-B4210 | Infrared LED Detection | IP65 Rated | by SICK
The Optical Fork Sensor WF5T-B4210 features an infrared LED light source and an adjustable light/dark switching output, making it ideal for industrial automation and label detection applications. With a high switching frequency of 10 kHz and a fast response time of ≤ 50 µs, this sensor ensures precise object detection in manufacturing lines. Its robust IP65 rated aluminum housing provides durability and protection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection
- Fork width: 5 mm
- Fork depth: 60 mm
- Light source: LED, infrared
- Output function: Light/dark switching, adjustable via reverse polarity
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 50 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Teach-in: Yes
- Circuit protection: Output Q short-circuit protected, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: –20 °C to +60 °C
- Ambient storage temperature: –30 °C to +80 °C
- Ambient light immunity: ≤ 3,000 klx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 39.5mm x 80mm x 12mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Light/dark switching output function adjustable via reverse polarity
- High switching frequency of 10 kHz and fast response time ≤ 50 µs
- IP65 rated aluminum housing for robust protection
- Teach-in function for easy configuration
- Short-circuit protected output with interference pulse suppression
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation for label detection
- Object detection in manufacturing lines
- Quality control systems requiring precise optical sensing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WF5T-B4210 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
