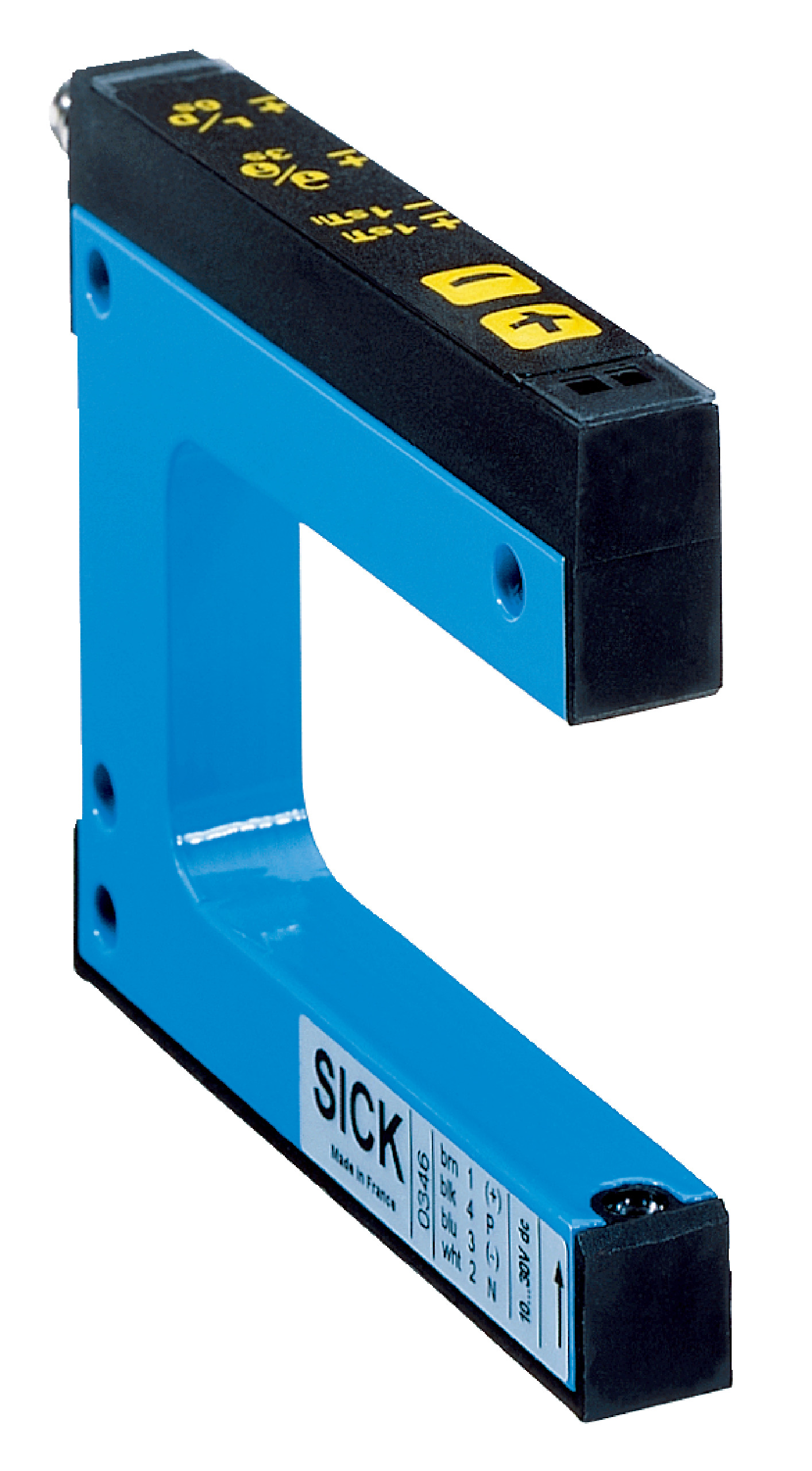

Optical Fork Sensor WF80-95B416 | Infrared Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WF80-95B416 features an infrared detection principle, ensuring precise object detection in industrial automation. With adjustable sensitivity and a high switching frequency of 10 kHz, it’s perfect for quality control and position sensing in manufacturing lines. Built with an IP65 rated enclosure, this sensor is designed for durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection
- Fork width: 80 mm
- Fork depth: 95 mm
- Minimum detectable object: 0.2 mm
- Light source: LED, infrared
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching, key lock
- Teach-in mode: 2-point teach-in
- Output function: Light/dark switching selectable via button
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Stability of response time: ± 20 µs
- Jitter: 40 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 110mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with infrared LED light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy setup
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated enclosure for dust and water resistance
- Reverse polarity and short-circuit protected outputs
- Male M8 4-pin connector for easy integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Position sensing in packaging machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED infrared light source
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WF80-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
