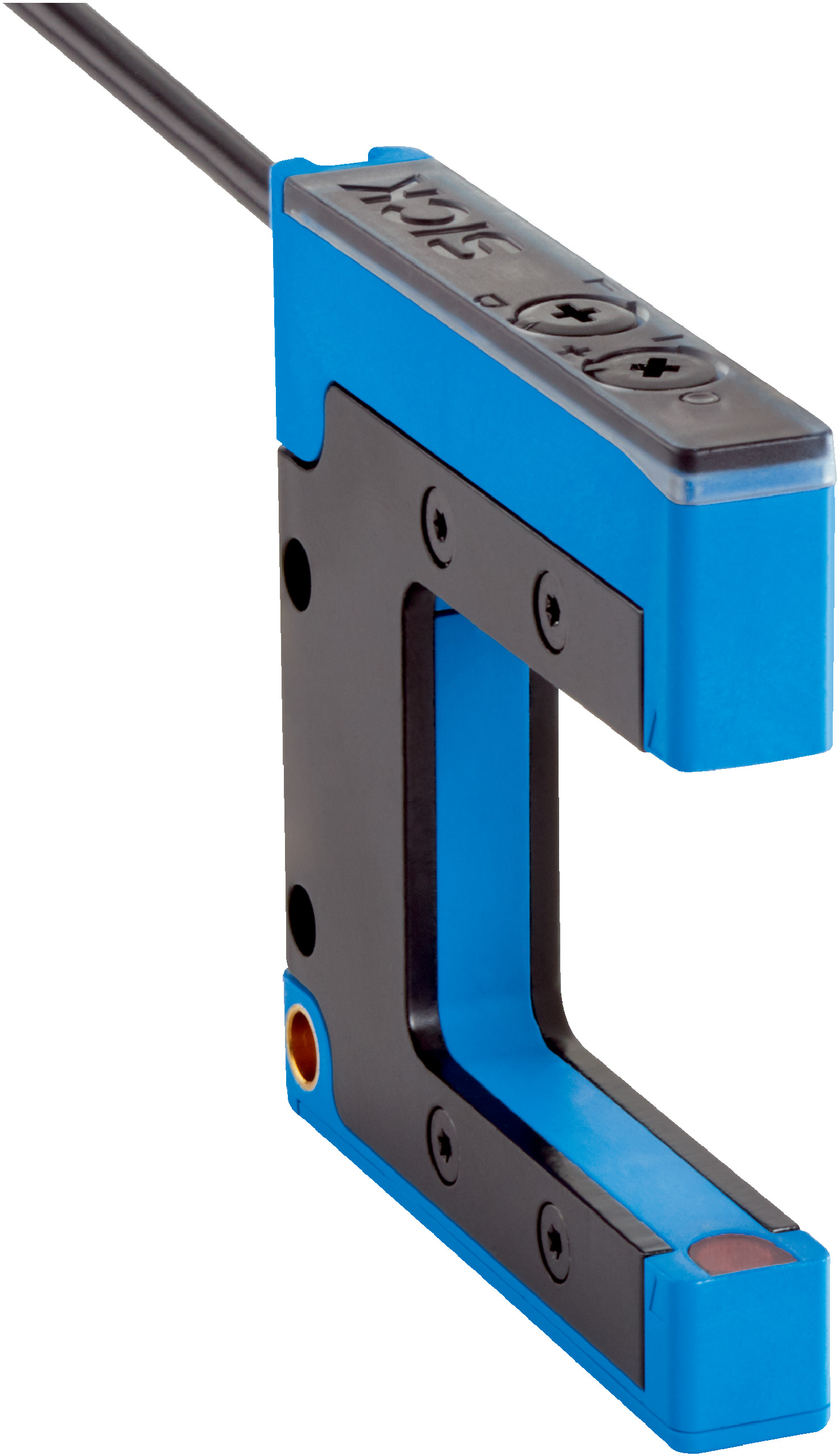

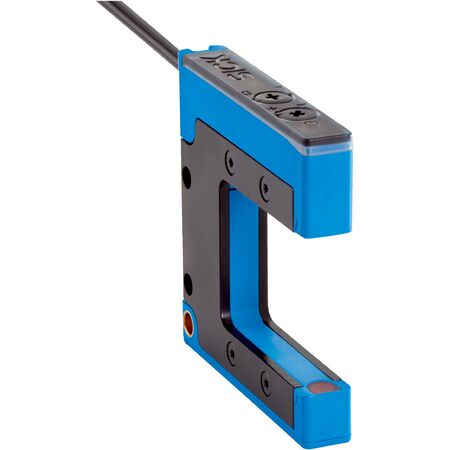

Optical Fork Sensor WFE-030040B137 | IP67 Rated | 5 kHz Switching Frequency | Red LED Light | by SICK
The Optical Fork Sensor WFE-030040B137 is designed for precise object detection in industrial automation, featuring a fork width of 30 mm and a minimum detectable object size of 0.5 mm. With a high switching frequency of 5 kHz and a response time of ≤ 100 µs, this sensor ensures reliable performance in safety and monitoring applications. Its robust IP67 rated housing provides dust and water resistance, making it ideal for manufacturing lines and packaging processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Switching mode: Light/dark switching with potentiometer adjustment
- Switching output hysteresis: < 0.1 mm
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: ABS coated carbon steel
- Connection type: 3-wire cable, 2 m length
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 59mm x 61mm x 10mm
- Weight: 0.1 kg
Key Features
- Fork width of 30 mm and fork depth of 40 mm for precise object detection
- Minimum detectable object size of 0.5 mm
- Red visible LED light source
- Potentiometer adjustment for light/dark switching
- High switching frequency of 5 kHz with response time ≤ 100 µs
- Push-pull PNP/NPN switching output with short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Robust ABS coated carbon steel housing
- LED indicators for power and output status
- Cable connection with 3-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Precision detection in packaging and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage range of 10 V DC to 30 V DC
- Durable IP67 rated housing reduces need for frequent replacements
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WFE-030040B137 Fork Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
