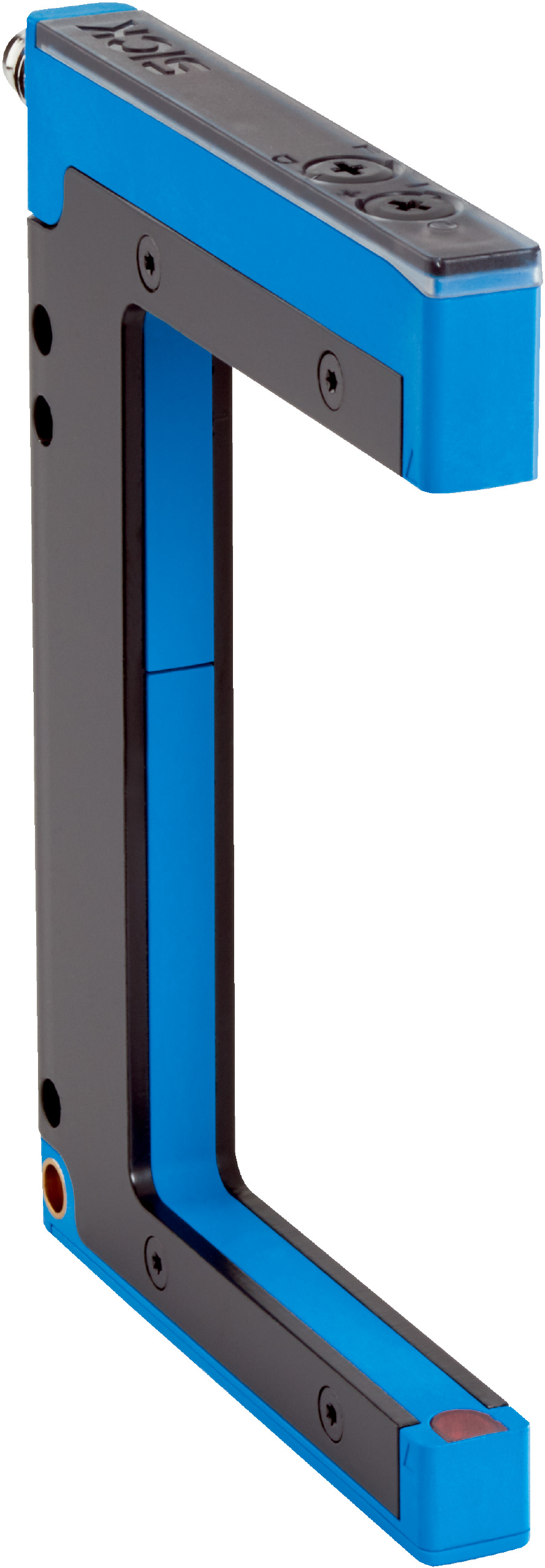

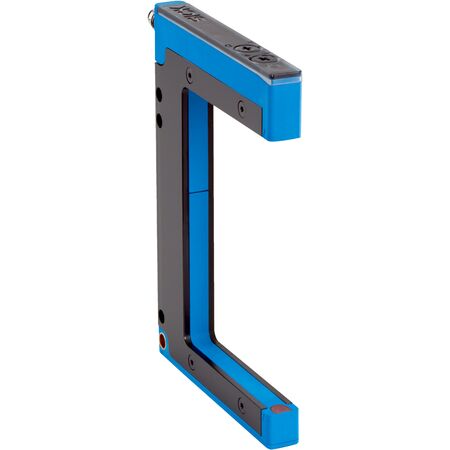

Optical Fork Sensor WFE-080060B337 | IP67 Rated | Red LED Light Source | 5 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFE-080060B337 is designed for precision object detection in industrial automation. With a minimum detectable object size of 0.5 mm and a high switching frequency of 5 kHz, it ensures fast and reliable performance. Its robust IP67 rated enclosure provides dust and water resistance, making it ideal for safety and control systems in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Enclosure rating: IP67
- Housing material: ABS coated carbon steel
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Connection type: M8, 3-pin connector
- Light source: Red LED
- Adjustment: Potentiometer for light/dark switching
- Dimensions (H x L x W): 109mm x 79mm x 10mm
- Weight: 0.12 kg
Key Features
- Minimum detectable object size of 0.5 mm for high precision.
- LED red visible light source for clear indication.
- Potentiometer adjustment for light/dark switching.
- High switching frequency of 5 kHz and fast response time ≤ 100 µs.
- Push-pull PNP/NPN switching output with short-circuit protection.
- IP67 rated enclosure for dust and water resistance.
- Robust ABS coated carbon steel housing.
- LED indicators for power and output status.
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Precision measurement and positioning tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with less than 30 mA current draw.
- Durable design reduces waste and replacement frequency.
- Complies with China-RoHS for hazardous substance restrictions.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WFE-080060B337 Fork Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
