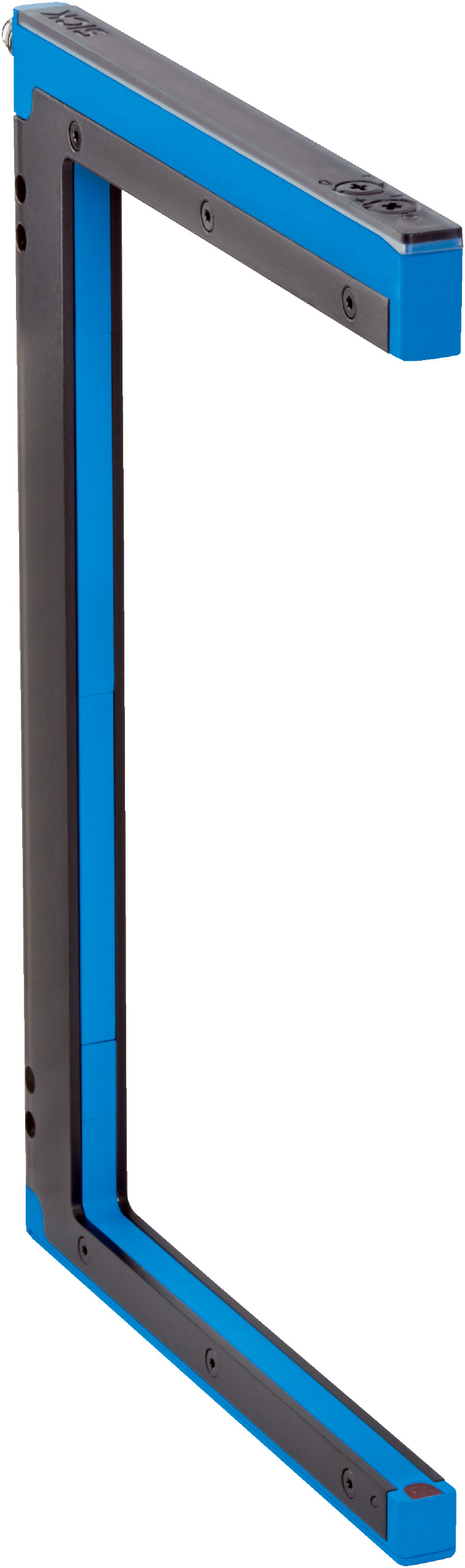

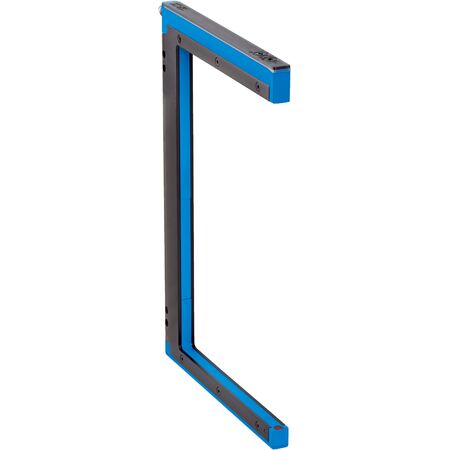

Optical Fork Sensor WFE-180120B337 | 180mm Fork Width | IP67 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFE-180120B337 is designed for precision object detection in industrial automation. With a fork width of 180 mm and a minimum detectable object size of 0.5 mm, it ensures high accuracy. Its robust IP67-rated housing and fast response time of ≤ 100 µs make it ideal for safety monitoring and precision measurement in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 30 mA
- Switching frequency: 5 kHz
- Response time: ≤ 100 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Enclosure rating: IP67
- Housing material: ABS coated carbon steel
- Connection type: Connector M8, 3-pin
- Ambient operating temperature: –20 °C to +60 °C
- Shock load: 30 g/11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 209mm x 143mm x 10mm
- Weight: 0.245 kg
Key Features
- Fork width of 180 mm and fork depth of 120 mm for versatile sensing applications
- Minimum detectable object size of 0.5 mm for high precision
- Red visible LED light source with potentiometer for light/dark switching adjustment
- High switching frequency of 5 kHz and fast response time ≤ 100 µs
- Push-pull PNP/NPN switching output with short-circuit and reverse polarity protection
- Robust ABS coated carbon steel housing with IP67 enclosure rating
- LED indicators for power and output status
- Wide ambient operating temperature range from –20 °C to +60 °C
- Shock resistant according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Precision measurement in packaging and material handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable construction reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK WFE-180120B337 Fork Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
