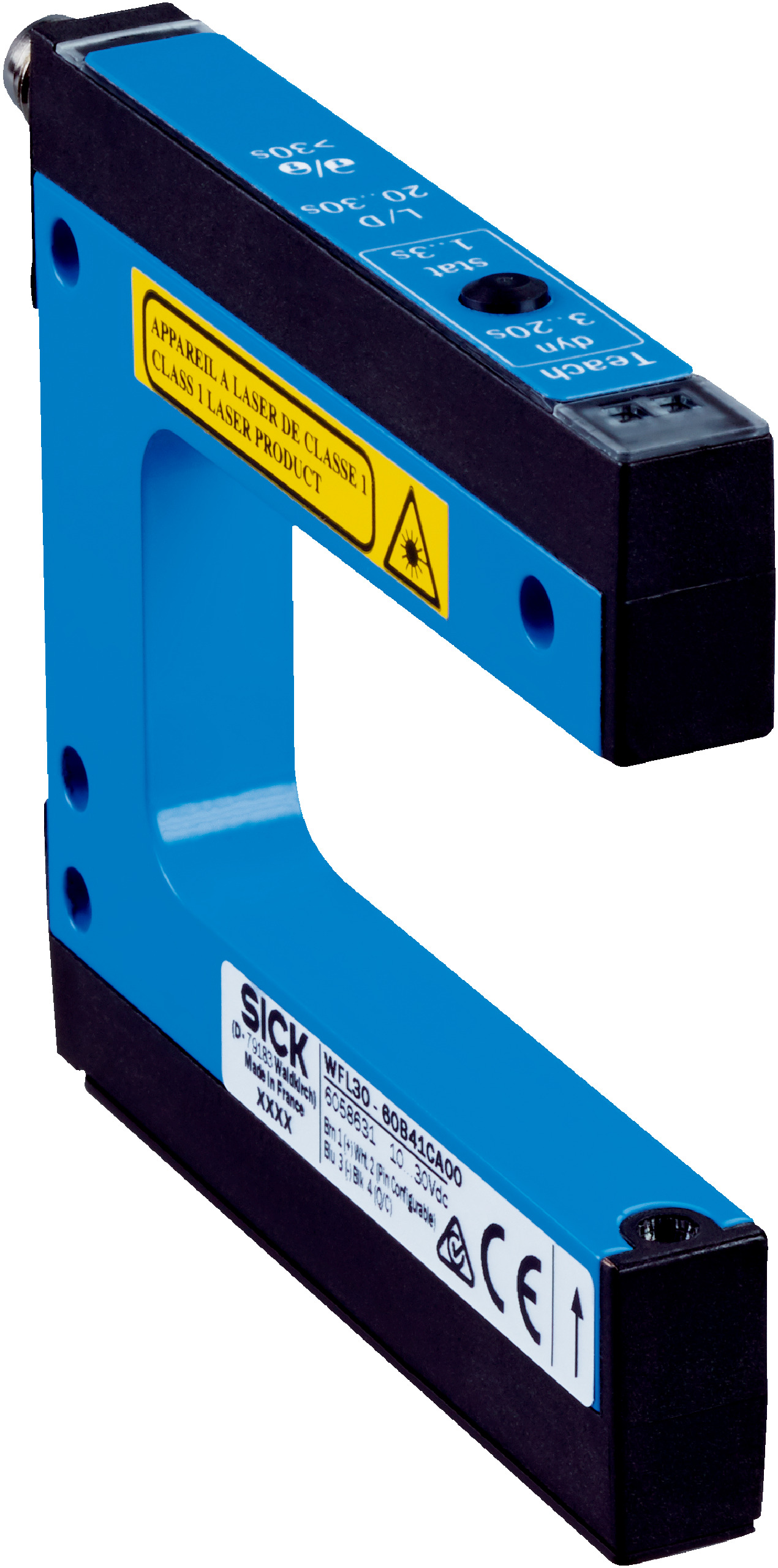

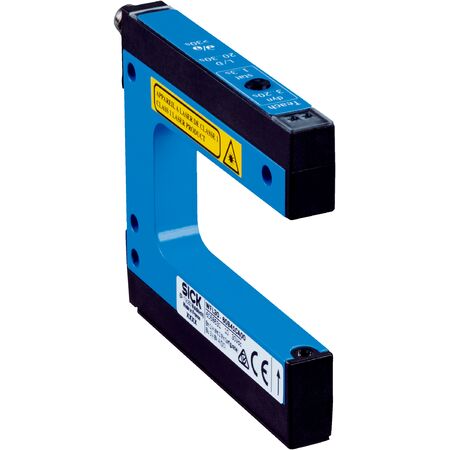

Optical Fork Sensor WFL120-40B41CA00 | IP65 Rated | 11 kHz Switching Frequency | Adjustable Teach-In | by SICK
The Optical Fork Sensor WFL120-40B41CA00 is designed for precise object detection in industrial automation, featuring a high switching frequency of 11 kHz and a fast response time of ≤ 60 µs. With an IP65 rated aluminum housing, it ensures durability in harsh environments, making it ideal for quality control and position sensing in manufacturing lines and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 11 kHz
- Response time: ≤ 60 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Enclosure rating: IP65
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Safety parameters: MTTFD 80 years, DCavg 0%
- Dimensions (H x L x W): 158.5mm x 47mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using laser red light
- Fork width of 120 mm and fork depth of 42 mm
- Minimum detectable object size of 0.05 mm
- Adjustable via teach-in button and cable with multiple teach-in modes
- High switching frequency of 11 kHz and fast response time ≤ 60 µs
- Push-pull PNP/NPN switching output with light/dark switching mode
- IP65 rated aluminum housing for robust industrial use
- IO-Link V1.1 communication interface for advanced configuration
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Position sensing in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL120-40B41CA00 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
