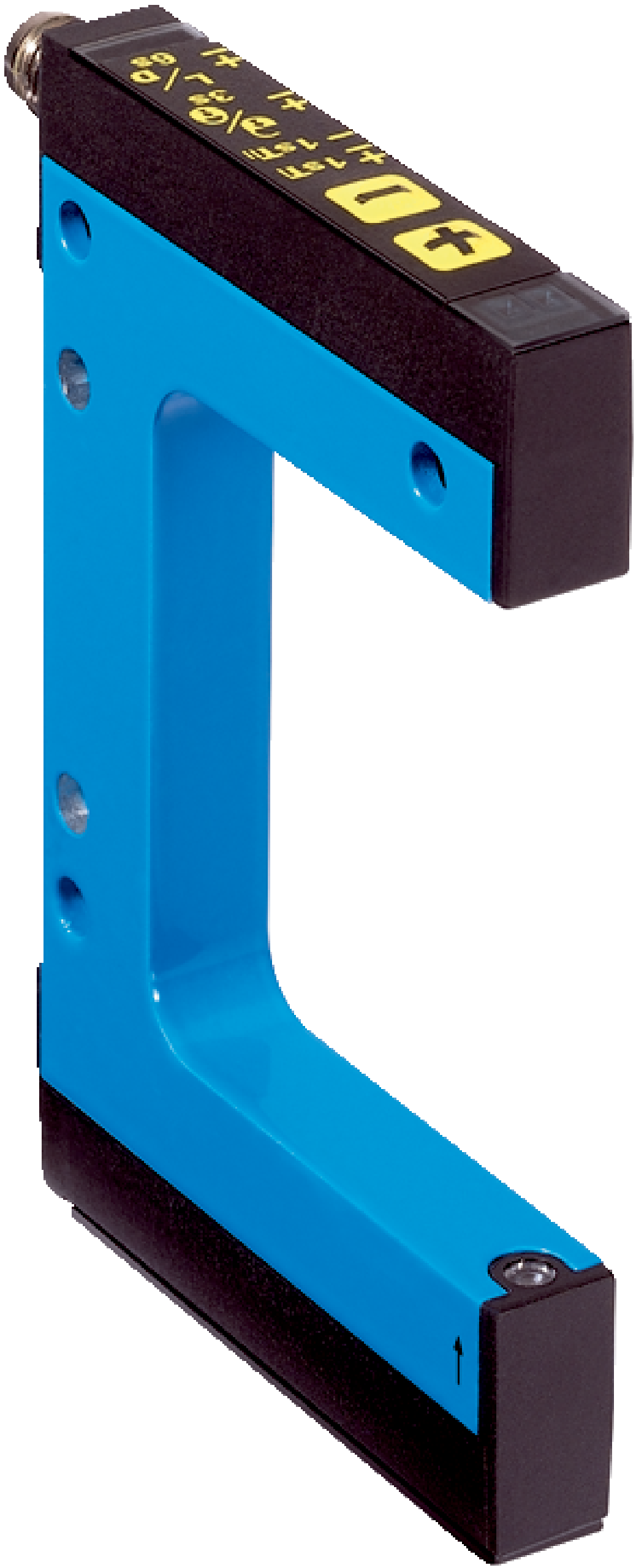

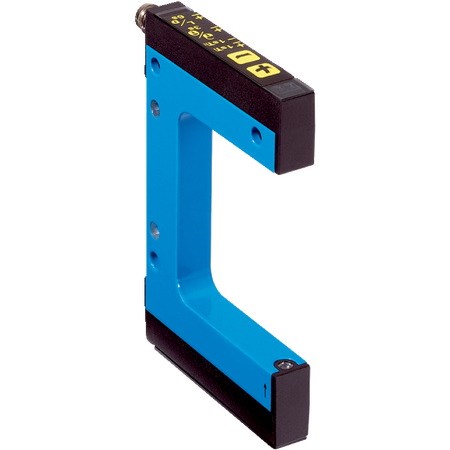

Optical Fork Sensor WFL120-60B416 | 10 kHz Switching Frequency | IP65 Rated | by SICK

BRAND: SICK
SKU: 6036834
$1,270.40 List price: $1,596.80
+ −
30 Days Return Electricians Unlock Trade Access
The Optical Fork Sensor WFL120-60B416 is designed for precise object detection in industrial automation, featuring a high switching frequency of 10 kHz and an IP65-rated aluminum housing. With a minimum detectable object size of just 0.05 mm, this sensor is perfect for quality control and position sensing in mechanical systems, ensuring reliable performance in challenging environments.

Alternatively Known As: Optical Fork Sensor, Laser Fork Sensor, SICK Fork Sensor WFL120, Industrial Fork Sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 40 mA
  • Switching frequency: 10 kHz
  • Response time: ≤ 100 µs
  • Switching output: PNP/NPN with light/dark switching
  • Output current max: 100 mA
  • Protection: Reverse polarity, short-circuit, interference pulse suppression
  • Housing material: Aluminum
  • Enclosure rating: IP65
  • Operating temperature: -20 °C to +50 °C
  • Storage temperature: -30 °C to +80 °C
  • Ambient light immunity: ≤ 10,000 lx
  • Shock load: According to EN 60068-2-27
  • Dimensions (H x L x W): 158.5mm x 74mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Optical detection principle using visible red laser light
  • Fork width of 120 mm and fork depth of 59 mm
  • Minimum detectable object size of 0.05 mm
  • 2-point teach-in mode with plus/minus button for sensitivity and light/dark switching
  • High switching frequency of 10 kHz with response time ≤ 100 µs
  • PNP/NPN switching output with light/dark switching mode
  • Protection class III with reverse polarity and short-circuit protection
  • Robust aluminum housing with IP65 enclosure rating
  • Operating temperature range from -20 °C to +50 °C
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Quality control in manufacturing lines
  • Position sensing in mechanical systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption with 10 V DC to 30 V DC supply voltage
  • Durable aluminum housing reduces material waste and extends product life
  • Complies with China RoHS for reduced hazardous substances
Warranty Information

Warranty details available upon request from manufacturer.

Available Now

The SICK WFL120-60B416 Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
