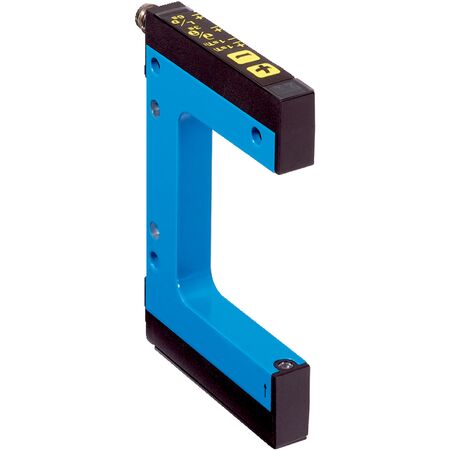

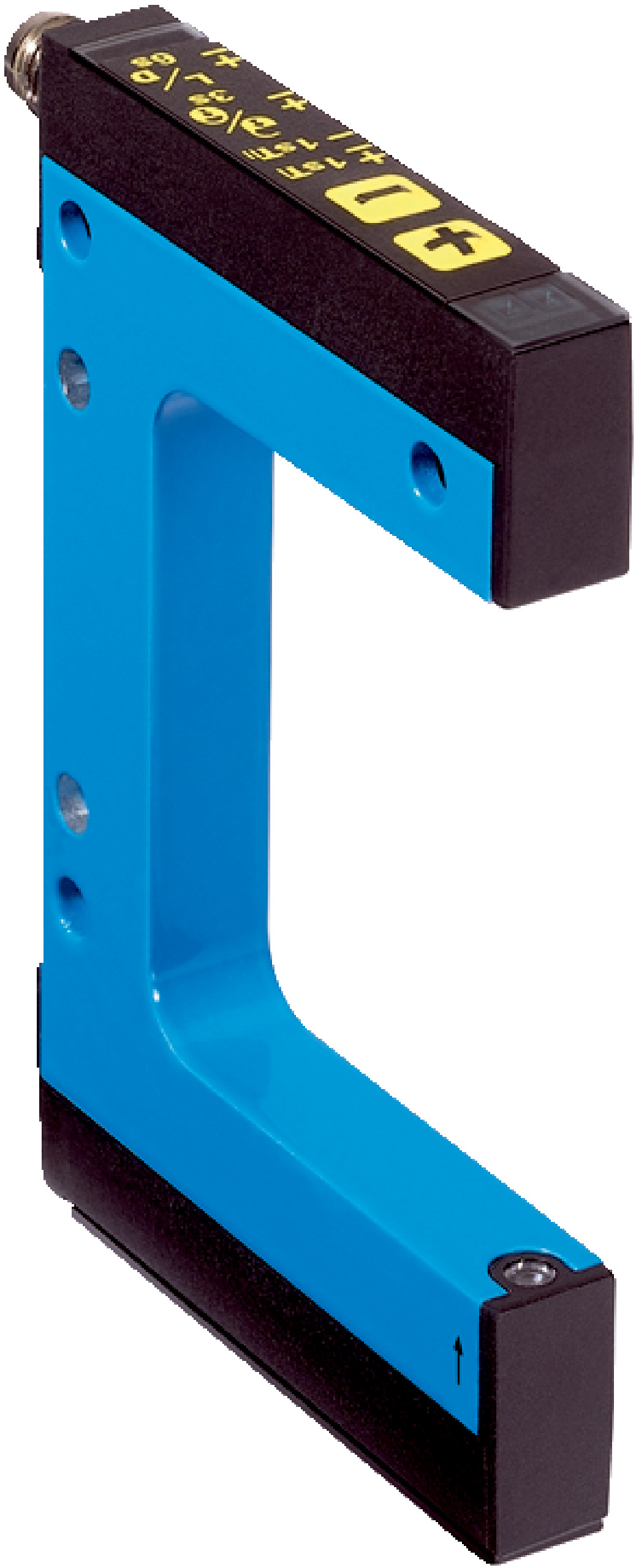

Optical Fork Sensor WFL120-95B416 | Red Laser Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFL120-95B416 utilizes a red laser light source for precise object detection, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and an IP65 rated aluminum housing, this sensor ensures robust performance in various applications, including quality inspection and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection with red laser light source
- Fork width: 120 mm, Fork depth: 95 mm
- Minimum detectable object size: 0.05 mm
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs with ± 20 µs stability
- Switching output: PNP/NPN with max output current 100 mA
- Enclosure rating: IP65
- Connection type: Male M8, 4-pin connector
- Operating temperature range: -20 °C to +50 °C
- Storage temperature range: -30 °C to +80 °C
- Shock load compliant with EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 158.5mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated aluminum housing for robust protection
- Reverse polarity and short-circuit protected outputs
- Supports both PNP and NPN switching outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality inspection systems
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through extended product life
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL120-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise object detection.
