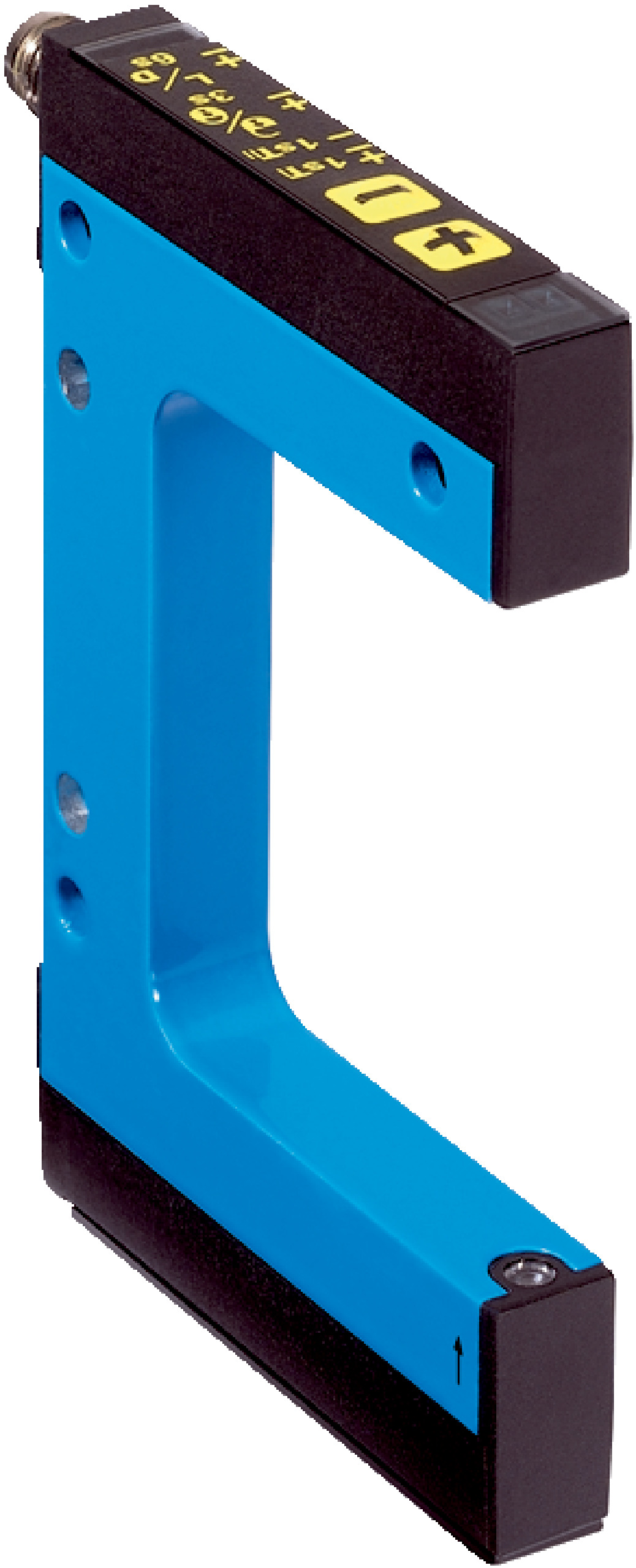

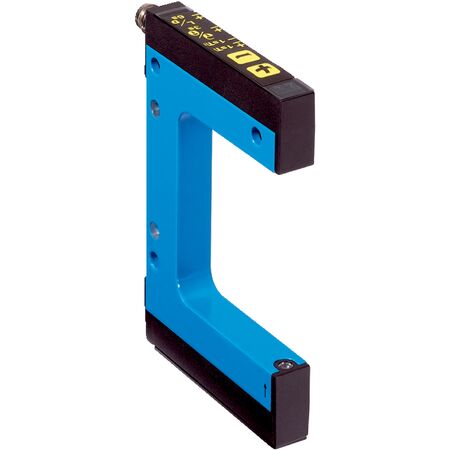

Optical Fork Sensor WFL15-60B416 | Laser Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFL15-60B416 utilizes a laser detection principle for precise object detection, making it ideal for industrial automation and manufacturing process control. With adjustable sensitivity and a high switching frequency of 10 kHz, this sensor ensures quick response times and reliable performance. Its robust IP65 rated aluminum housing provides durability and protection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection
- Fork width: 15 mm
- Fork depth: 59 mm
- Minimum detectable object: 0.05 mm
- Light source: Laser, red
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Teach-in mode: 2-point teach-in
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Stability of response time: ± 20 µs
- Jitter: 40 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: –20 °C to +50 °C
- Ambient storage temperature: –30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 53.5mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with laser red light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy setup
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated aluminum housing for robust protection
- PNP/NPN switching output with short-circuit and reverse polarity protection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and quality assurance in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces waste through long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WFL15-60B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
