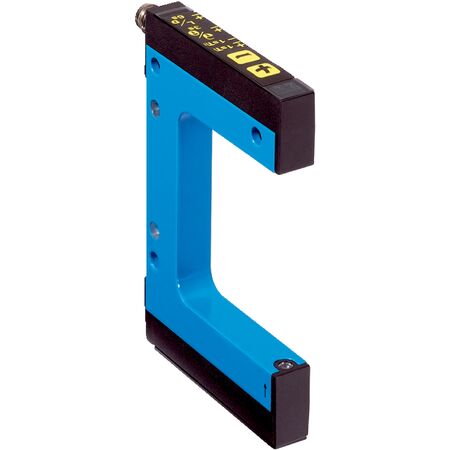

Optical Fork Sensor WFL2-40B416 | Laser Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFL2-40B416 features a laser red light source and a precise 2 mm fork width, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and a fast response time of ≤ 100 µs, this sensor ensures reliable object detection. Its durable aluminum housing and IP65 rating provide excellent protection against dust and water, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Enclosure rating: IP65
- Operating temperature: -20 °C to +50 °C
- Light source: Laser, red
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Teach-in mode: 2-point teach-in
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Dimensions (H x L x W): 40.5mm x 47mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with laser red light source
- 2 mm fork width and 42 mm fork depth for precise detection
- Minimum detectable object size of 0.05 mm
- Plus/minus button for teach-in, sensitivity adjustment, and light/dark switching
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- PNP/NPN switching output with short-circuit and reverse polarity protection
- IP65 rated enclosure for dust and water resistance
- Aluminum housing for durability
- Operating temperature range from -20 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical sensors and electrical connections to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient optical detection
- Durable aluminum housing reduces waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL2-40B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
