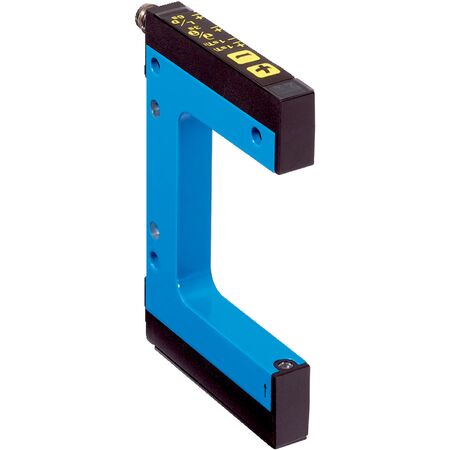

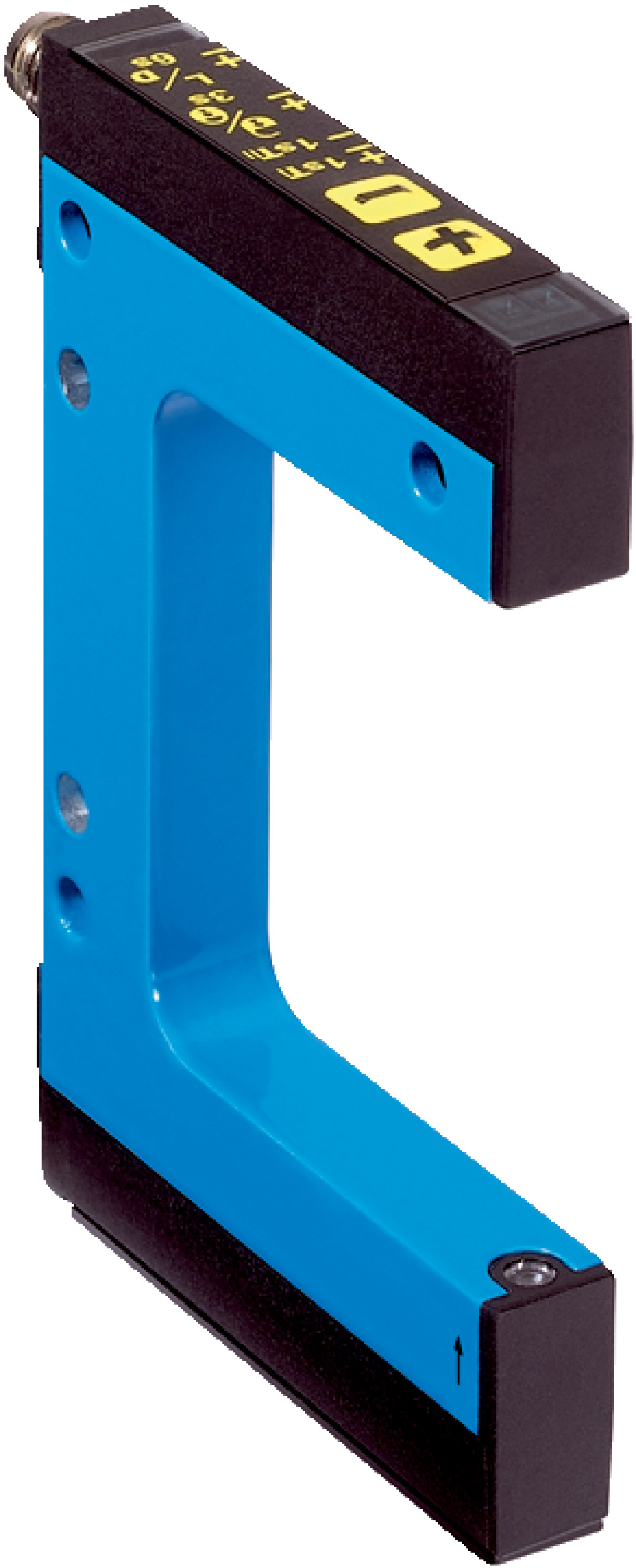

Optical Fork Sensor WFL2-60B416 | Laser Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFL2-60B416 features a laser detection principle with a minimum detectable object size of just 0.05 mm, making it ideal for precise object detection in industrial automation. With a high switching frequency of 10 kHz and an IP65 rated enclosure, this sensor is built for durability and reliability in demanding environments, ensuring optimal performance in quality control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with light/dark switching
- Output current max: 100 mA
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Safety parameters: MTTFD 80 years, DCavg 0%
- Dimensions (H x L x W): 40.5mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with laser red light source
- Minimum detectable object size of 0.05 mm
- 2 mm fork width and 59 mm fork depth
- Plus/minus button for teach-in, sensitivity, and light/dark switching
- 2-point teach-in mode for easy setup
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- PNP/NPN switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- Aluminum housing for durability
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Positioning and counting of small parts
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 40 mA current draw
- Durable aluminum housing reduces need for frequent replacements
- Long MTTFD of 80 years enhances reliability and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL2-60B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
