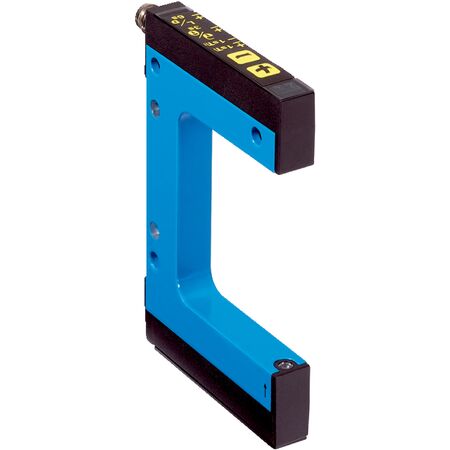

Optical Fork Sensor WFL2-95B416 | Red Laser Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFL2-95B416 is designed for precise object detection in industrial automation, featuring a red laser light source and a fork width of 2 mm. With a high switching frequency of 10 kHz and a fast response time of ≤ 100 µs, it’s perfect for quality control and positioning applications. Built with an IP65 rated enclosure, this sensor ensures durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 40.5mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Fork width of 2 mm and fork depth of 95 mm for precise detection
- Minimum detectable object size of 0.05 mm
- Adjustment via plus/minus button for teach-in, sensitivity, and light/dark switching
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protected outputs
- PNP/NPN switching output options
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Positioning and counting of small parts
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient laser light source
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL2-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
