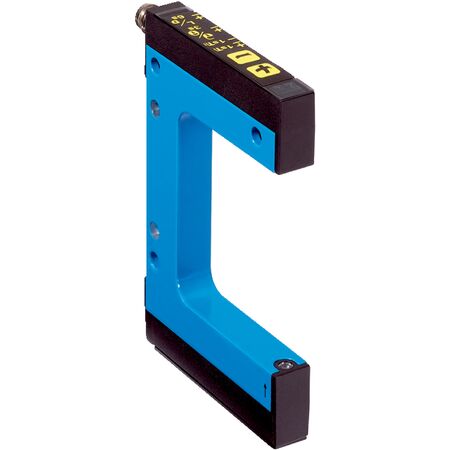

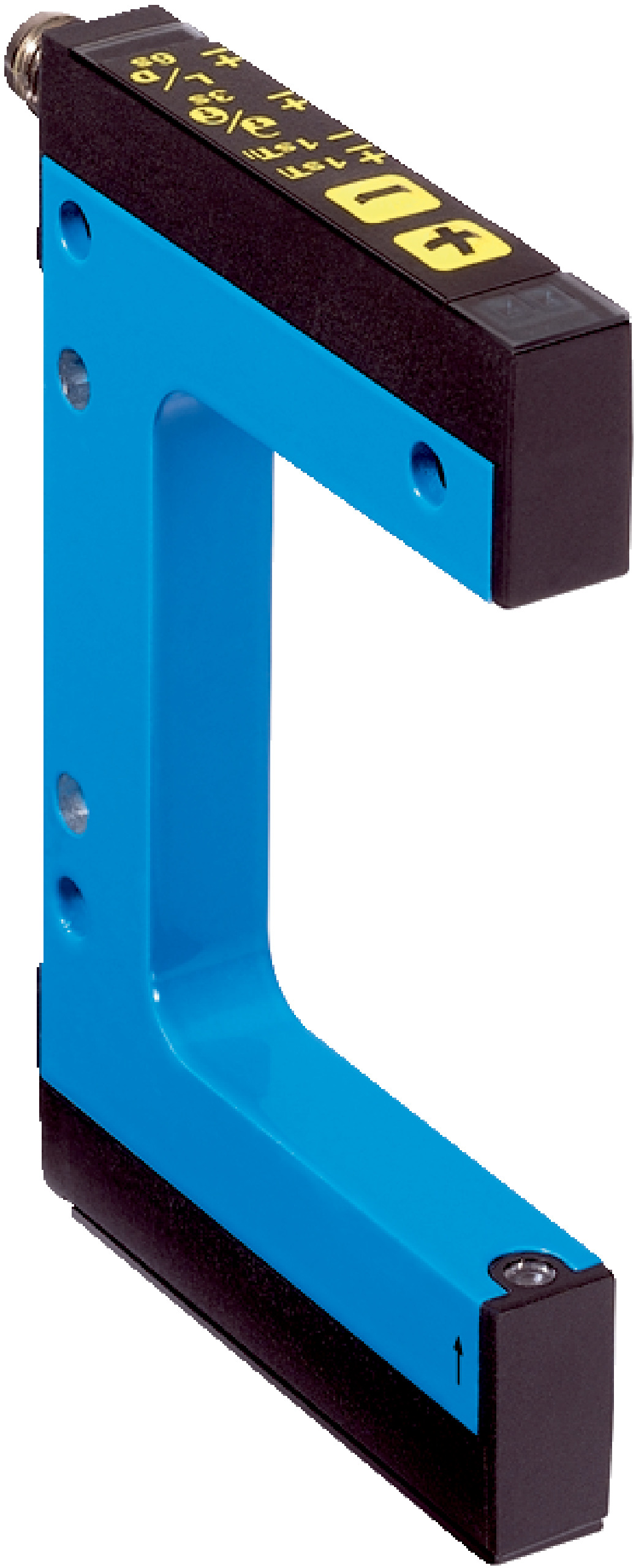

Optical Fork Sensor WFL30-40B416 | Red Laser Detection | IP65 Rated | by SICK
The Optical Fork Sensor WFL30-40B416 utilizes a red laser for precise object detection, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 10 kHz and a response time of ≤ 100 µs, this sensor ensures quick and reliable performance. Its robust IP65 rated aluminum housing provides durability and protection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection with red laser
- Fork width: 30 mm, Fork depth: 42 mm
- Minimum detectable object: 0.05 mm
- Supply voltage: 10 V DC to 30 V DC with <10% ripple
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load compliant with EN 60068-2-27
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Dimensions (H x L x W): 68.5mm x 47mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated aluminum housing for robust protection
- Male connector M8, 4-pin connection type
- Safety-related parameters with MTTFD of 80 years and DCavg 0%
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and quality assurance in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 40 mA current draw
- Durable aluminum housing reduces waste through long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WFL30-40B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
