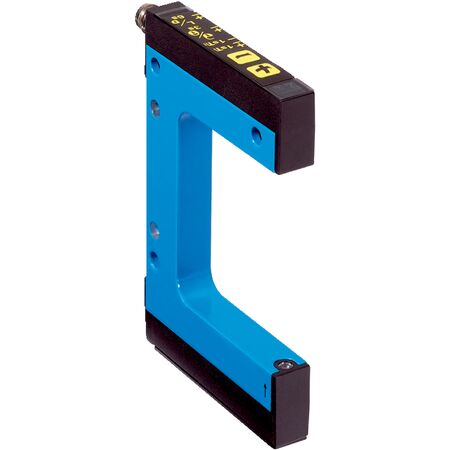

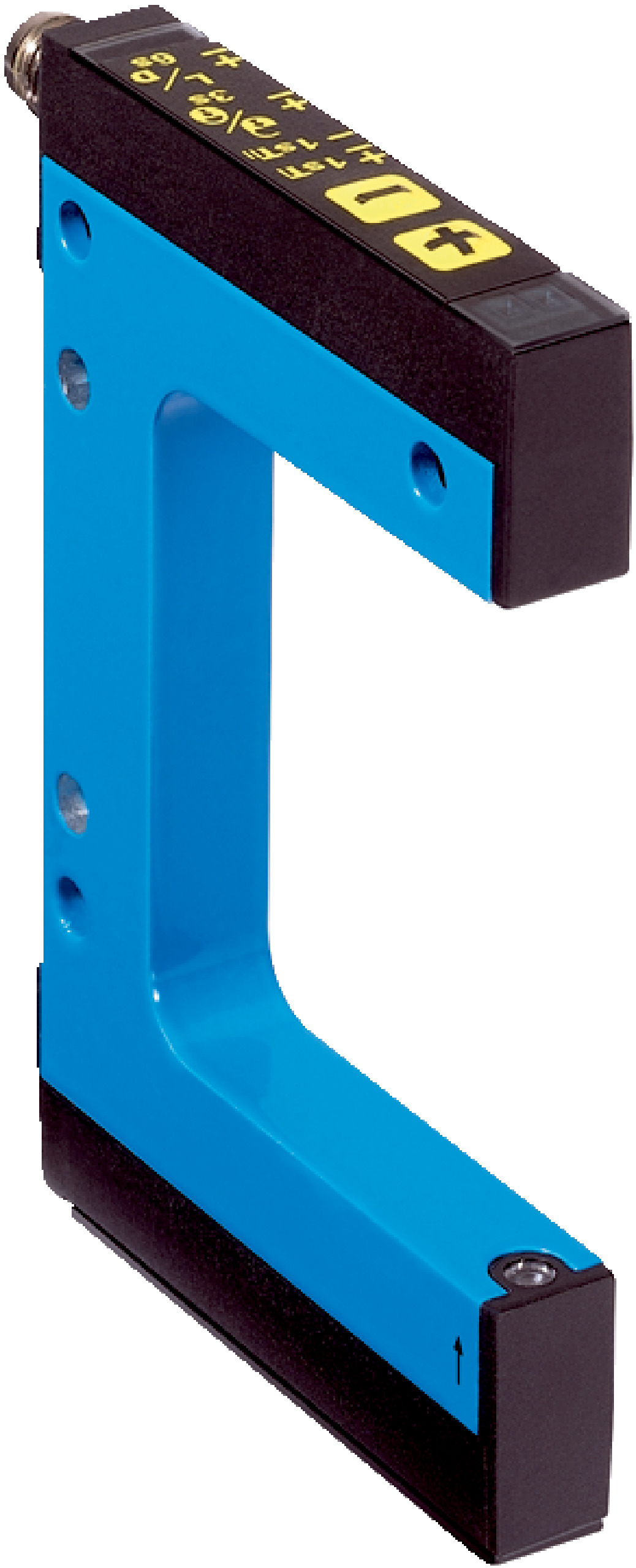

Optical Fork Sensor WFL30-95B416 | Red Laser Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFL30-95B416 utilizes a red laser light source for precise object detection, making it ideal for industrial automation and quality control applications. With a high switching frequency of 10 kHz and an IP65 rated enclosure, this sensor ensures reliable performance in challenging environments. Its adjustable sensitivity and easy 2-point teach-in mode enhance usability for technicians and engineers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Teach-in mode: 2-point teach-in
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: -20 °C to +50 °C
- Storage temperature: -30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 68.5mm x 110mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using red laser light source
- Minimum detectable object size of 0.05 mm
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy configuration
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protected outputs
- Light/dark switching output mode with PNP/NPN switching output
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality assurance systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable aluminum housing reduces material waste and extends product life
- IP65 rating ensures long-term reliability reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WFL30-95B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
