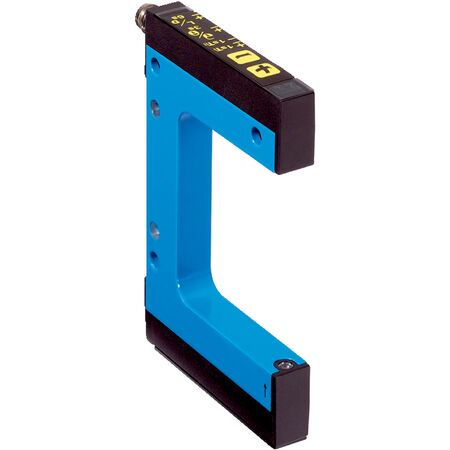

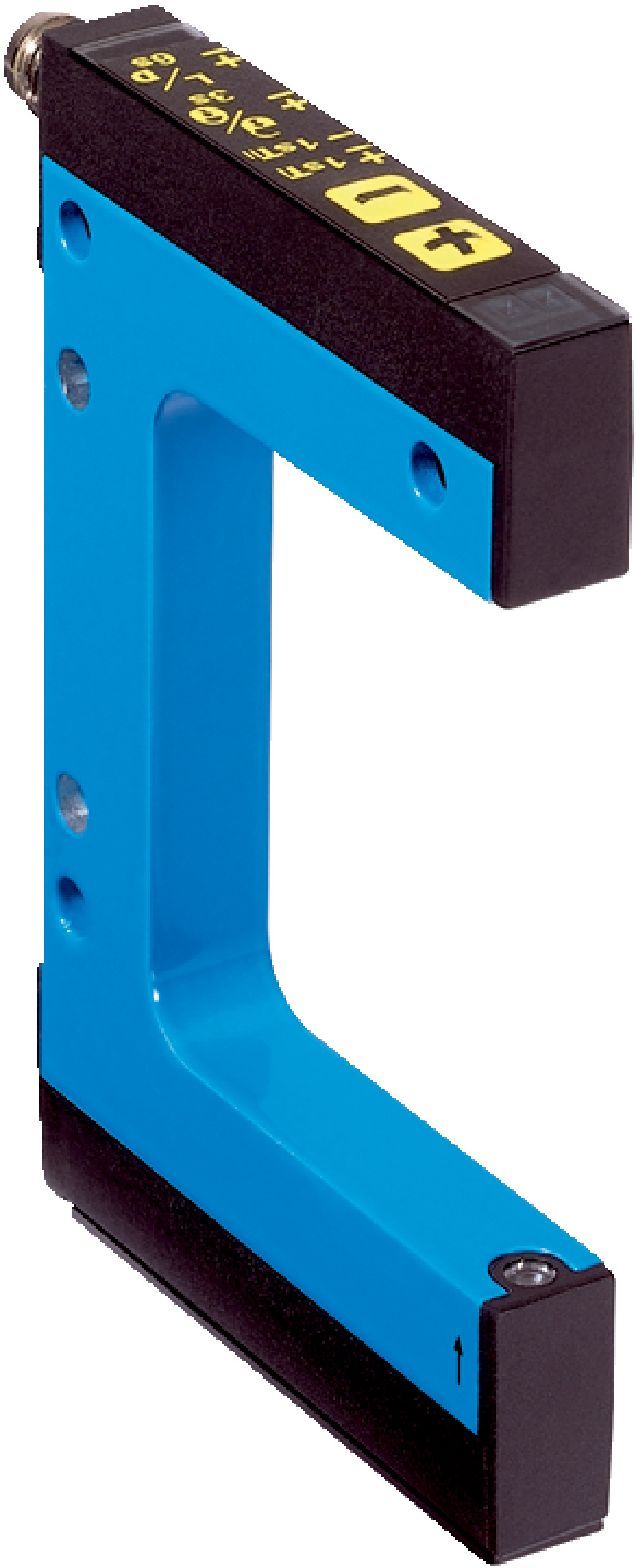

Optical Fork Sensor WFL5-40B416 | Laser Detection | IP65 Rated | 10 kHz Switching Frequency | by SICK
The Optical Fork Sensor WFL5-40B416 utilizes advanced laser detection technology for precise object sensing in industrial automation. With a high switching frequency of 10 kHz and an IP65 rated enclosure, it ensures reliable performance in challenging environments. Ideal for quality control and position sensing in manufacturing lines, this sensor is designed for easy setup with its 2-point teach-in mode and robust aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Switching output: PNP/NPN with max output current 100 mA
- Enclosure rating: IP65
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -30 °C to +80 °C
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Light source: Laser, red
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Teach-in mode: 2-point teach-in
- Safety parameters: MTTFD 80 years, DCavg 0%
- Dimensions (H x L x W): 43.5mm x 47mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle using laser red light
- Fork width of 5 mm and fork depth of 42 mm
- Minimum detectable object size of 0.05 mm
- Plus/minus button for teach-in, sensitivity, and light/dark switching
- 2-point teach-in mode for easy setup
- High switching frequency of 10 kHz with response time ≤ 100 µs
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- PNP/NPN switching output options
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical sensors and electrical connections to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Position sensing in packaging machinery
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient optical detection
- Durable aluminum housing reduces material waste and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WFL5-40B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
