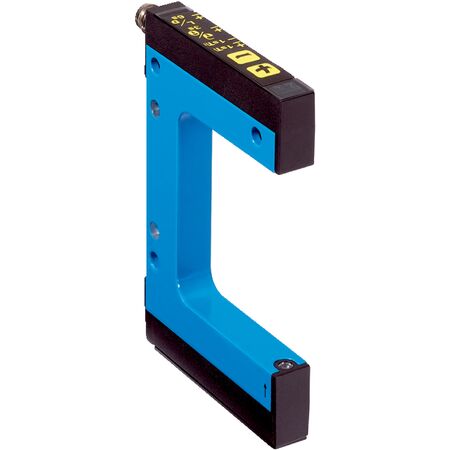

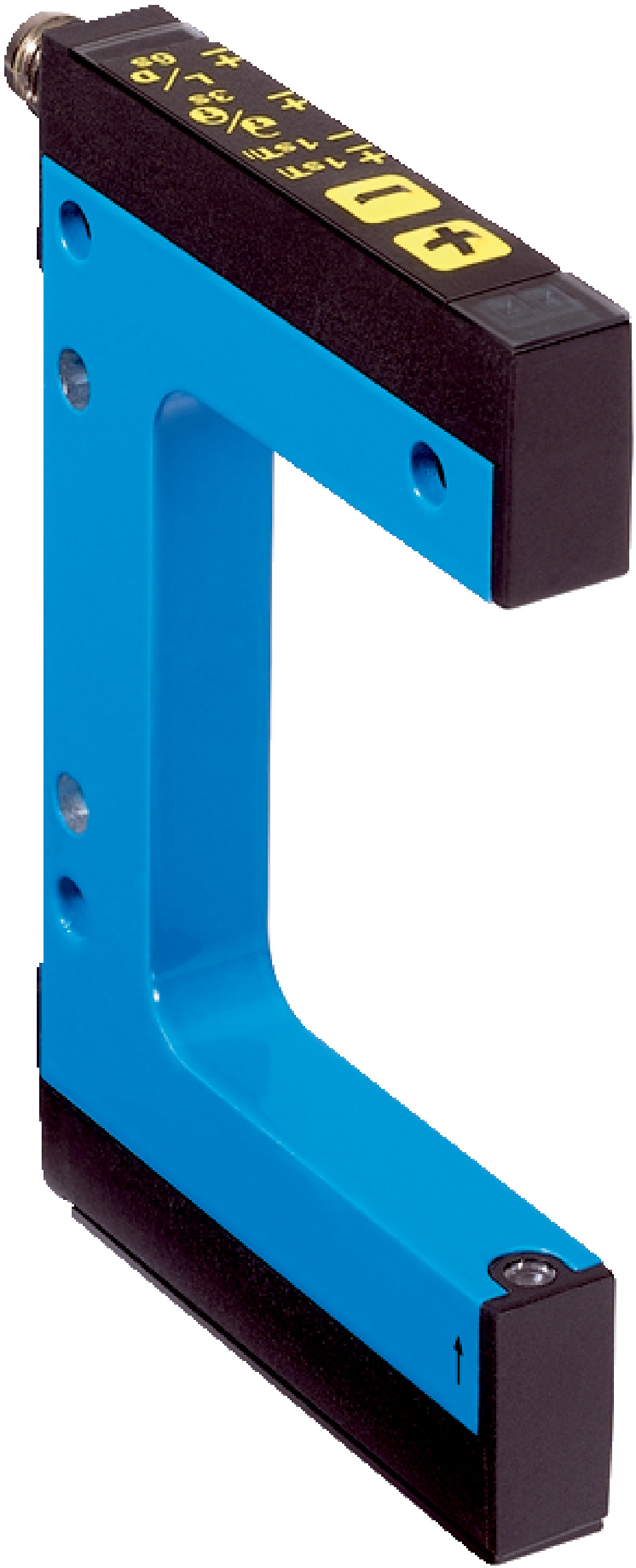

Optical Fork Sensor WFL5-60B416 | Laser Detection | IP65 Rated | Fast Response Time | by SICK
The Optical Fork Sensor WFL5-60B416 features a laser detection principle, ensuring precise object detection with a minimum detectable object of just 0.05 mm. Ideal for industrial automation and manufacturing process control, this sensor offers adjustable sensitivity and a high switching frequency of 10 kHz, making it perfect for safety and monitoring in production lines. With its robust IP65 rated aluminum housing, it is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Optical detection
- Fork width: 5 mm
- Fork depth: 59 mm
- Minimum detectable object: 0.05 mm
- Light source: Laser, red
- Adjustment: Plus/minus button for teach-in, sensitivity, light/dark switching
- Teach-in mode: 2-point teach-in
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 10%
- Current consumption: 40 mA
- Switching frequency: 10 kHz
- Response time: ≤ 100 µs
- Stability of response time: ± 20 µs
- Jitter: 40 µs
- Switching output: PNP/NPN
- Output current max: 100 mA
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: –20 °C to +50 °C
- Storage temperature: –30 °C to +80 °C
- Ambient light immunity: ≤ 10,000 lx
- Shock load: According to EN 60068-2-27
- Protection class: III
- Dimensions (H x L x W): 43.5mm x 74mm x 10mm
- Weight: 0.1 kg
Key Features
- Optical detection principle with laser red light source
- Adjustable sensitivity and light/dark switching via plus/minus button
- 2-point teach-in mode for easy setup
- High switching frequency of 10 kHz and fast response time ≤ 100 µs
- IP65 rated aluminum housing for robust protection
- Reverse polarity and short-circuit protected outputs
- Compatible with PNP and NPN switching outputs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient optical detection
- Durable aluminum housing reduces waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WFL5-60B416 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
